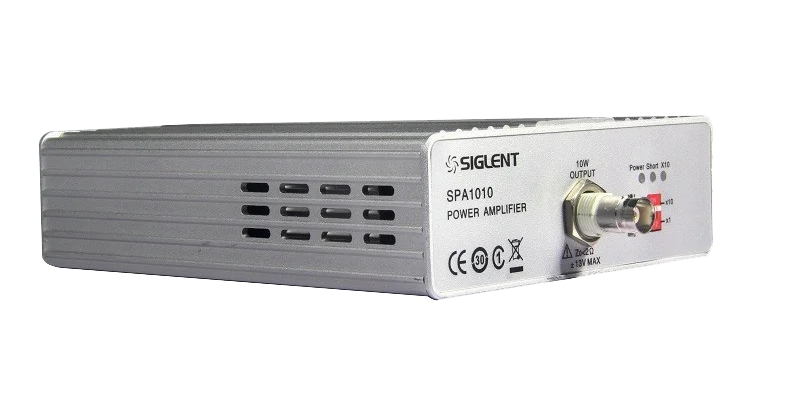

SPA1010
Output Power: 10W (typical); Input Impedance: 15kΩ; Input: +/- 6.5V Vpp(Gain:X1); +/- 1.3V (Gain:X10); Gain: Switching in 10V/1V and 10V/10V; Output Voltage: 25.4 Vpp; Output Curre…
Article no.
SPA1010
CHF 376.77
incl. 8.1% VAT · CHF 348.54 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description

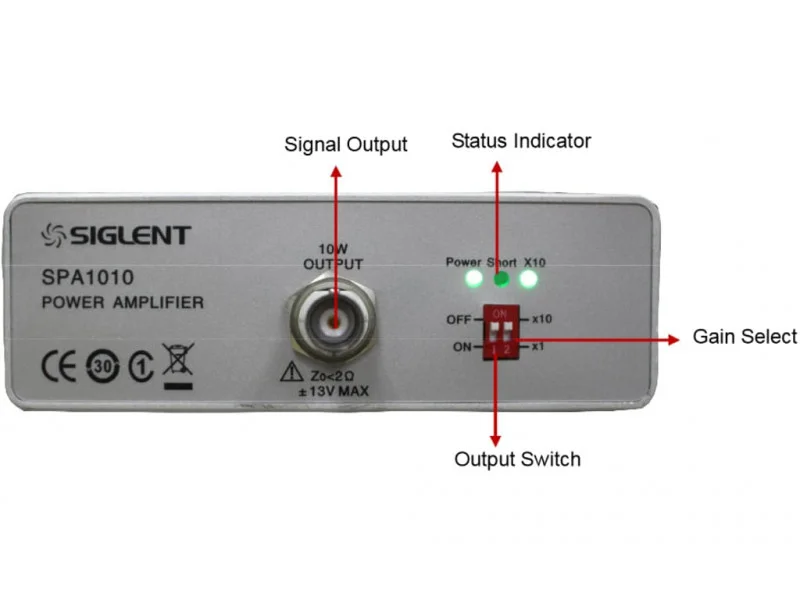

The SPA1010 features an output power of 10W typical and an input impedance of 15kΩ. It accepts input voltages of +/- 6.5V Vpp at a gain of X1 and +/- 1.3V at a gain of X10. The device supports gain switching between 10V/1V and 10V/10V settings. Its output voltage reaches 25.4 Vpp with an output current of 1.12 A. The slew rate is rated at 90 V/μs or higher, ensuring rapid voltage changes. Overshoot is maintained at 4% or less. This product is designed to work with SIGLENT generators and is branded by Siglent.
Additional information
Output Power: 10W (typical); Input Impedance: 15kΩ; Input: +/- 6.5V Vpp(Gain:X1); +/- 1.3V (Gain:X10); Gain: Switching in 10V/1V and 10V/10V; Output Voltage: 25.4 Vpp; Output Current: 1.12 A; Slew Rate: ≥ 90 V/μs; Overshoot: ≤ 4%. Work with SIGLENT Generator.
Documents
