SPD4306X

Description

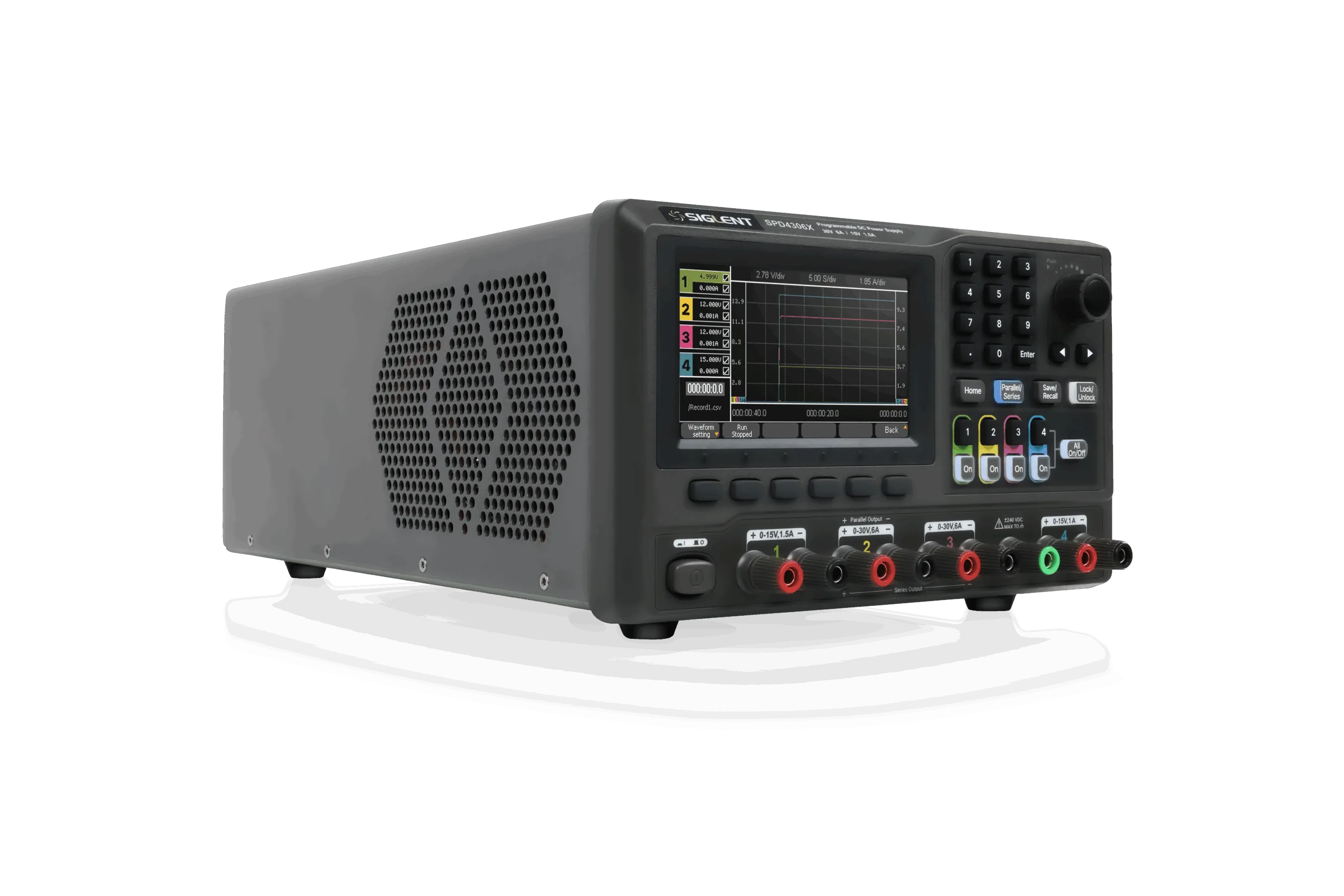

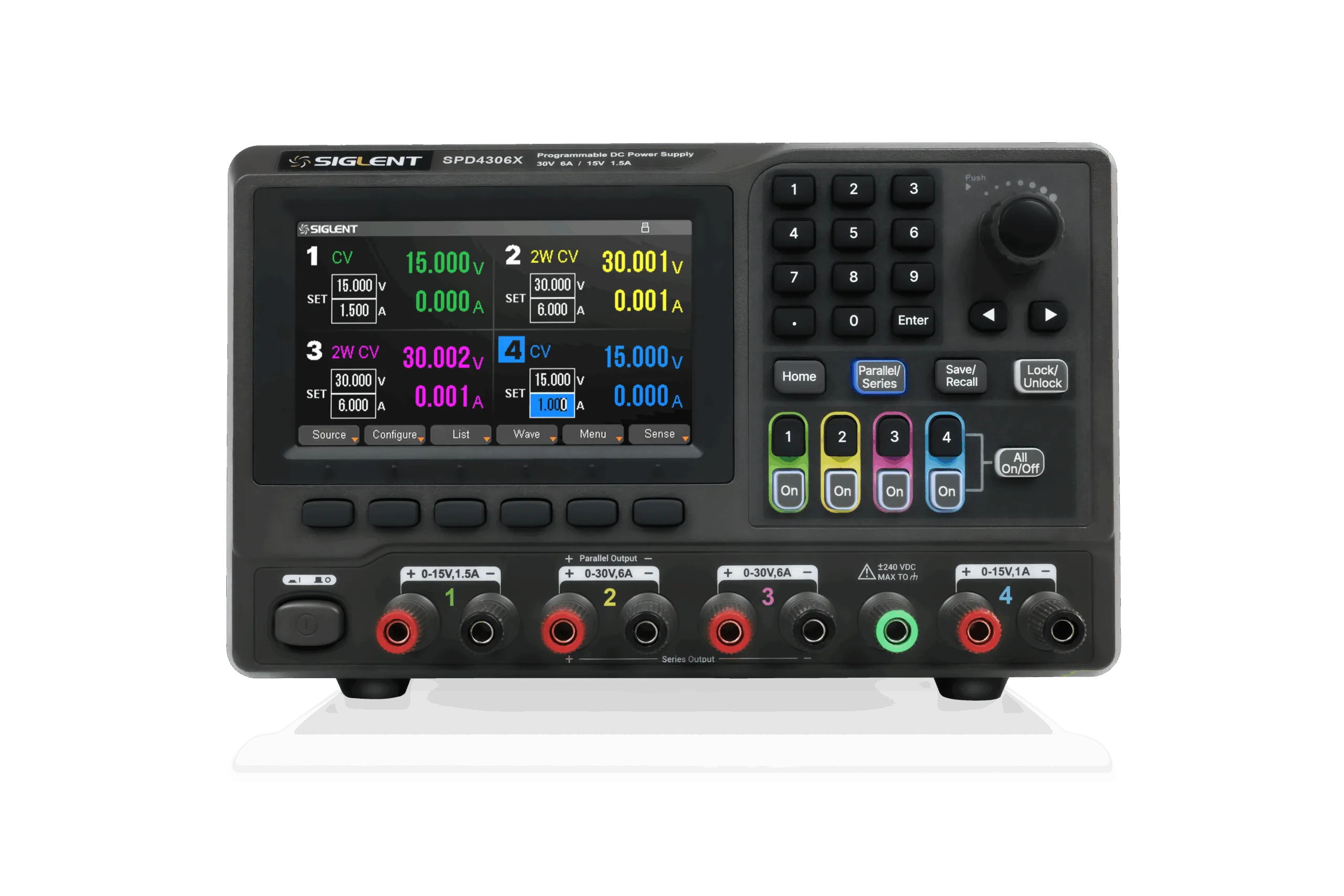

The SPD4306X from Siglent is a 4-channel DC linear programmable power supply with a total output power of 400W. It features a resolution of 1mV and 1mA, allowing precise control over voltage and current settings. The maximum voltage and current ratings vary across the four channels: CH1 supports up to 15V and 1.5A, CH2 and CH3 each provide up to 30V and 6A, while CH4 offers up to 15V and 1A. The device supports remote control functionality, enabling operation from a distance. With a maximum voltage of 30V and a maximum current of 6A, it is suitable for applications requiring multiple voltage and current levels. The power supply is designed to deliver stable and programmable outputs across its four channels, making it versatile for various testing and development scenarios.

Additional information

4 CH DC linear programmable power supply; total output power 400W; resolution 1mV/1mA; CH1,CH2,CH3,CH4 max. voltage/current: 15V/1.5A, 30V/6A, 30V/6A, 15V/1A

Specifications
