TBLLA-2M
9 KHz – 30 MHz Large Loop Antenna
Article no.
TBLLA-2M
- Connector
- Type-N
CHF 6'201.52
incl. 8.1% VAT · CHF 5'736.84 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- Type-N connector

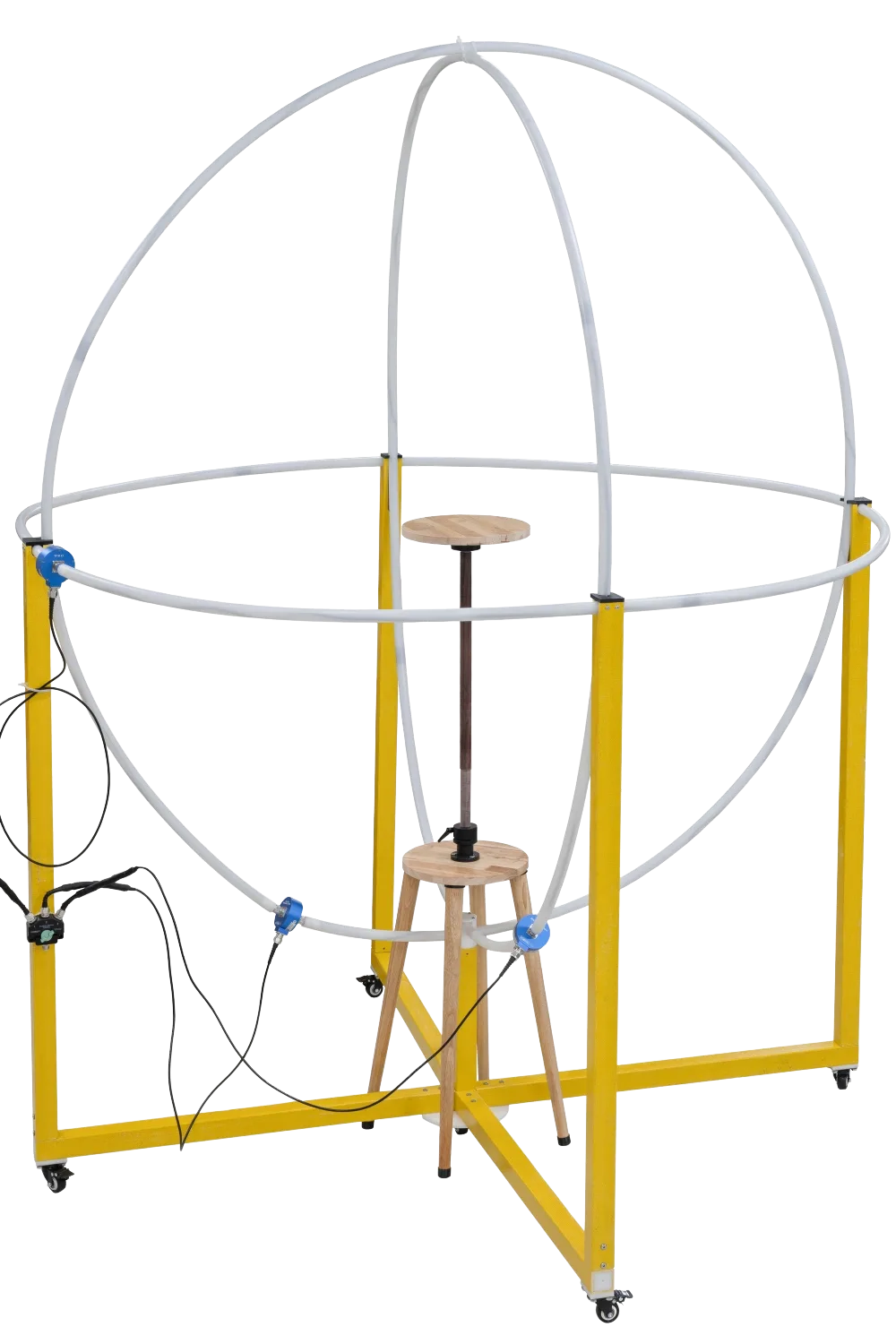

The TBLLA-2M is a large loop antenna designed to operate within the frequency range of 9 KHz to 30 MHz. It is manufactured by Tekbox and features a Type-N connector, which is commonly used for RF applications. This antenna is suitable for applications requiring coverage across a broad spectrum from very low frequencies up to the lower HF band. The design allows for efficient reception and transmission within this specified frequency range. The large loop structure is intended to provide effective performance over the stated bandwidth. The antenna does not include additional features such as remote control or digital channels. It is a specialized component intended for use in systems that require reliable loop antenna functionality within the 9 KHz to 30 MHz range.
Technical data
Specifications
1- Connector
- Type-N
Documents
