SDG3082X

80 MHz; 7'' touch screen, 16-bit,2 channels; 1.2 GSa/s; wave length: 20 Mpts/CH (40Mpts optional), maximum amplitude ±10 V, Includes modulation modes such as ASK, PSK, FSK and QAM.…

Article no. SDG3082X

Canaux: 2
Résolution verticale: 16 bits
Fréquence: 80 MHz
Amplitude: 10 V

CHF 724.16

incl. 8.1% VAT · CHF 669.90 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

2 canaux
Résolution verticale de 16 bits
Fréquence de 80 MHz
Amplitude de 10 V
Balayer

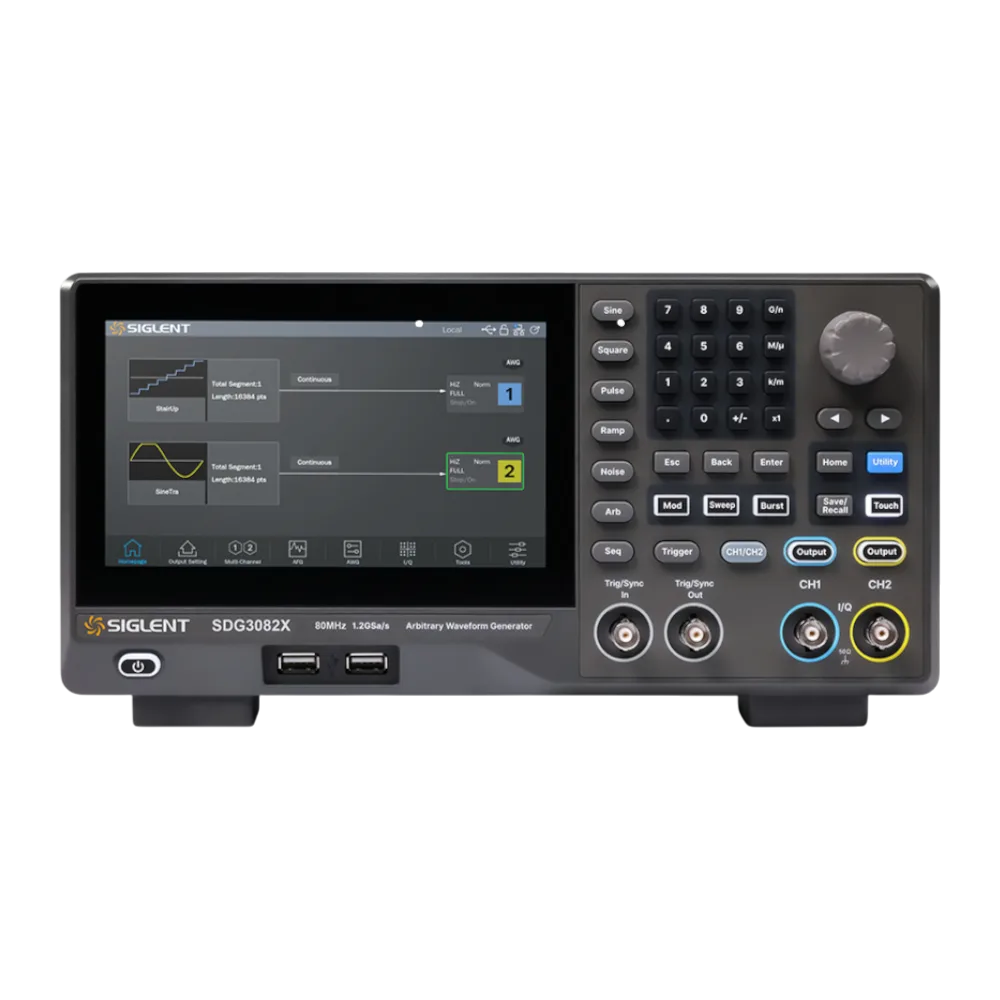

The SDG3082X features an 80 MHz maximum frequency and is equipped with a 7-inch touch screen for user interaction. It offers 16-bit vertical resolution and supports 2 channels, allowing for versatile signal generation. The device operates at a high sampling rate of 1.2 GSa/s, ensuring accurate waveform reproduction. It has a memory depth of 20 Mpts per channel, with an optional upgrade to 40 Mpts, providing ample storage for complex waveforms. The maximum amplitude output is ±10 V, suitable for a range of testing scenarios. The SDG3082X includes modulation modes such as ASK, PSK, FSK, and QAM, expanding its functionality for various communication protocols. Additionally, the SigIQPro software enables vector signal creation and editing, enhancing the device's capability for advanced signal processing tasks.

Additional information

80 MHz; 7'' touch screen, 16-bit,2 channels; 1.2 GSa/s; wave length: 20 Mpts/CH (40Mpts optional), maximum amplitude ±10 V, Includes modulation modes such as ASK, PSK, FSK and QAM. SigIQPro software provides vector signal creation and editing

Video SDG3082X

Technical data
