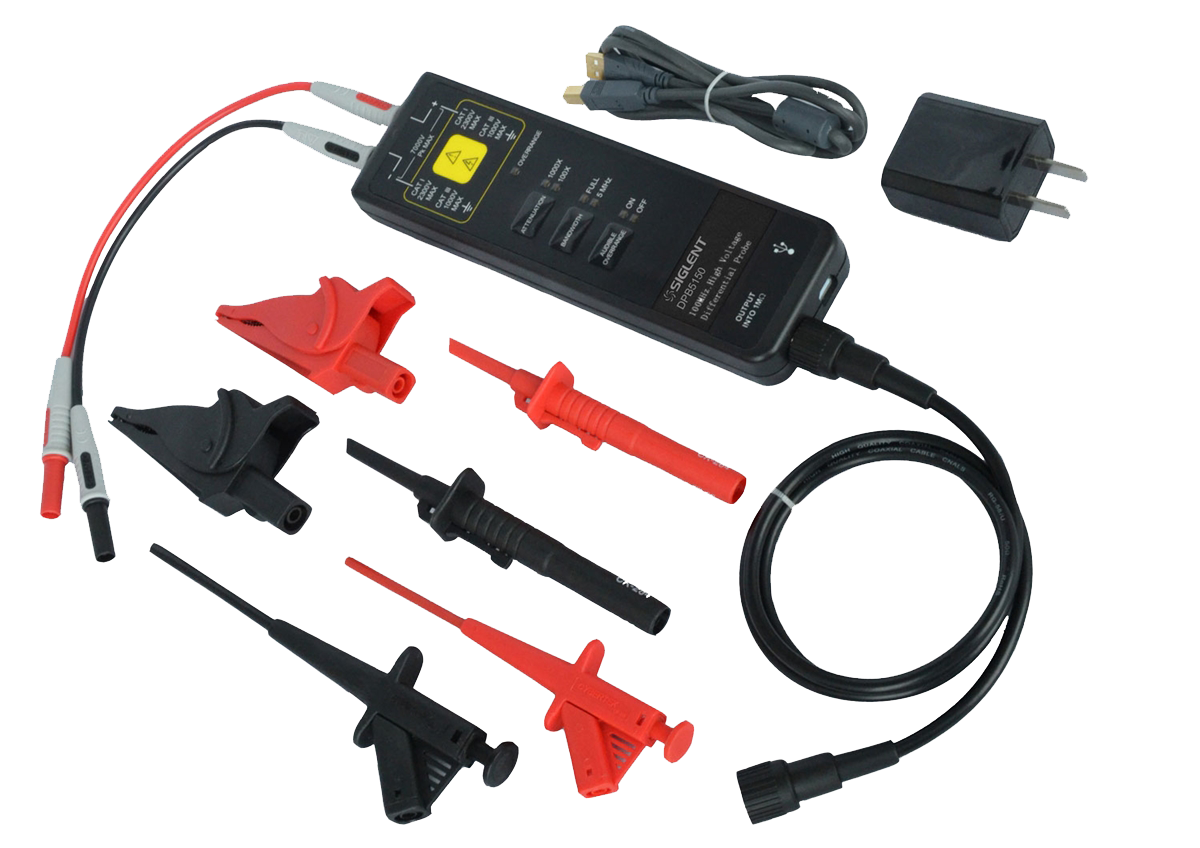

DPB5700A
Bandwidth: 100MHz; Maximum input differential voltage 7000V（DC + Peak AC）;Range selection (attenuation ratio): 100X/1000X; Accuracy: ±2%; Standard 5V/1A USB power adapter
Article no.
DPB5700A
- Bandwidth
- 100 MHz
- Voltage Max
- 7000 V
- Interface
- Universal
CHF 2'192.44
incl. 8.1% VAT · CHF 2'028.16 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 100 MHz bandwidth
- 7000 V voltage max
- Universal interface
The DPB5700A by Siglent features a bandwidth of 100MHz and supports a maximum input differential voltage of 7000V, combining both DC and peak AC values. It offers range selection with attenuation ratios of 100X and 1000X, allowing for flexible measurement settings. The device maintains an accuracy of ±2%, ensuring reliable performance within its specified parameters. Power is supplied through a standard 5V/1A USB power adapter, facilitating convenient and accessible operation. The interface is universal, making it compatible with a variety of systems and setups. This product is designed to handle high voltage inputs safely while providing precise attenuation options for different measurement needs. Its specifications highlight its capability to manage significant voltage levels and maintain accuracy across its operational bandwidth.
Technical data
Specifications
3- Bandwidth
- 100 MHz
- Voltage Max
- 7000 V
- Interface
- Universal
