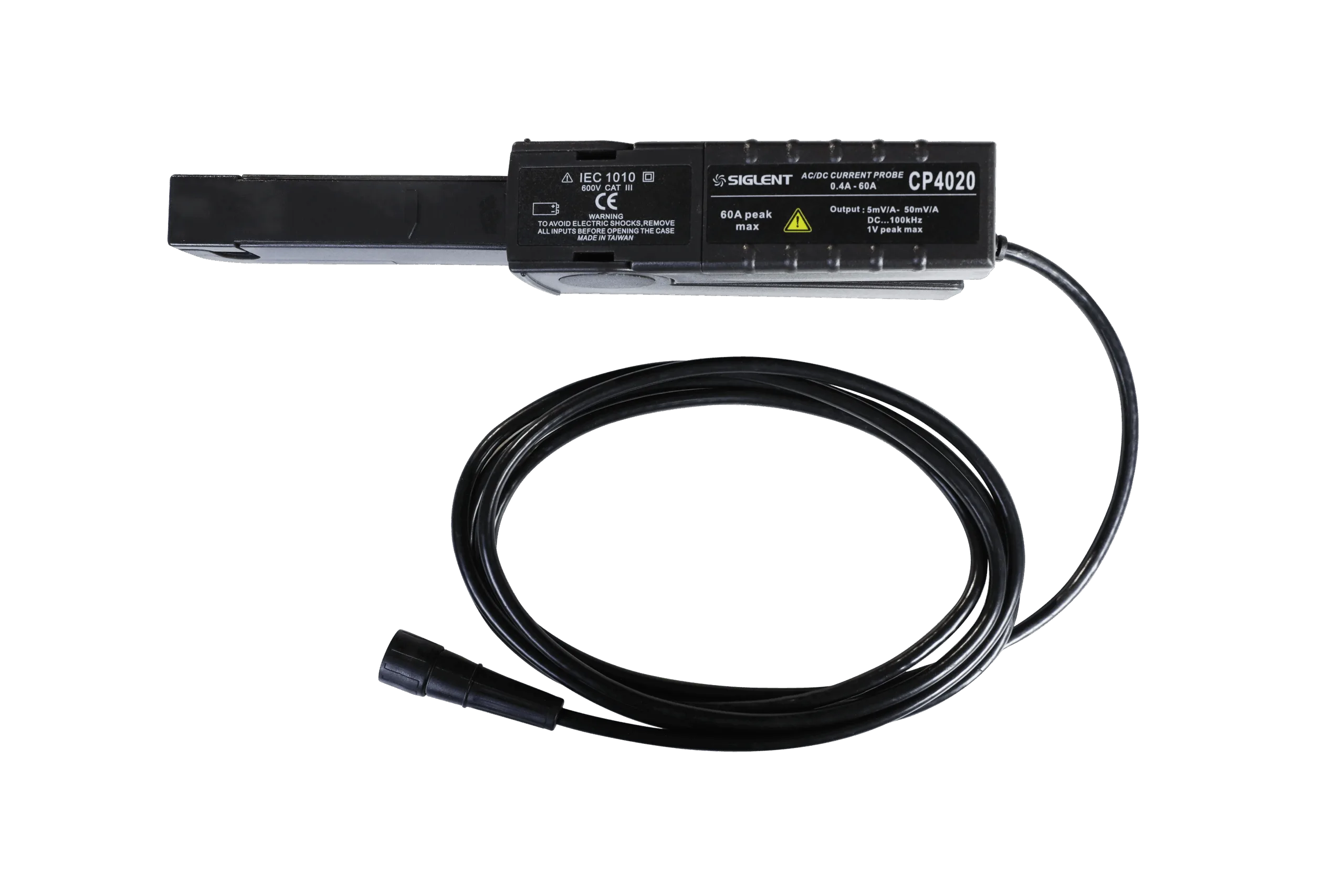

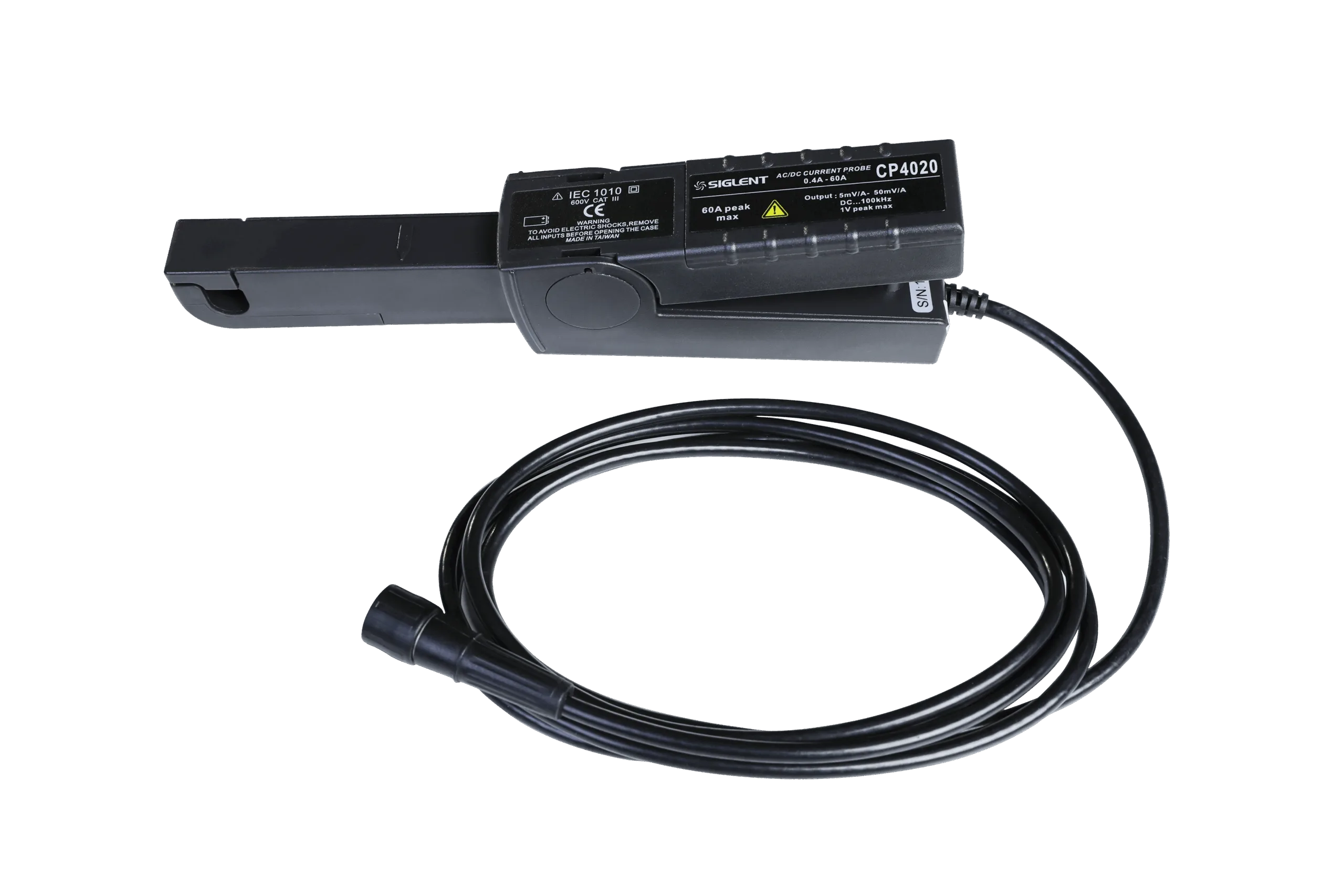

CP4020
Bandwidth: 100KHz; Maximum continuous current 20Arms; Peak current 60A; Switching ratio: 50mV/A; 5mV/A;
Article no.
CP4020
- Bandwidth
- 0.1 MHz
- Current Max
- 20 A
- Interface
- Universal
CHF 413.20
incl. 8.1% VAT · CHF 382.24 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 0.1 MHz bandwidth
- 20 A current max
- Universal interface
The Siglent CP4020 features a bandwidth of 100 kHz, allowing it to handle signals within this frequency range effectively. It supports a maximum continuous current of 20 Arms, ensuring it can operate under sustained high-current conditions. The device is capable of handling peak currents up to 60 A, providing flexibility for short bursts of higher current demands. It has a switching ratio of 50 mV/A and an additional ratio of 5 mV/A, which are critical for accurate current measurement and signal conversion. The CP4020 operates with a maximum current rating of 20 A and includes a universal interface for connectivity. Its bandwidth is specified as 0.1 MHz, aligning with the 100 kHz bandwidth mentioned. These specifications make the CP4020 suitable for applications requiring precise current measurement and control within the stated electrical parameters.
Technical data
Specifications
3- Bandwidth
- 0.1 MHz
- Current Max
- 20 A
- Interface
- Universal
