IT78540-1050-360
1050V L-N, 1818V L-L, 360Arms/ph, 540kVA, 3φ, AC Power Supply, 37U*2, 16-2400 Hz
Article no.
IT78540-1050-360
- Power
- 540000 W
- Voltage
- 1050 V
- Current
- 360 A
- Output Number
- 1
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 540000 W power
- 1050 V voltage
- 360 A current
- 1 output number
- Remote Control

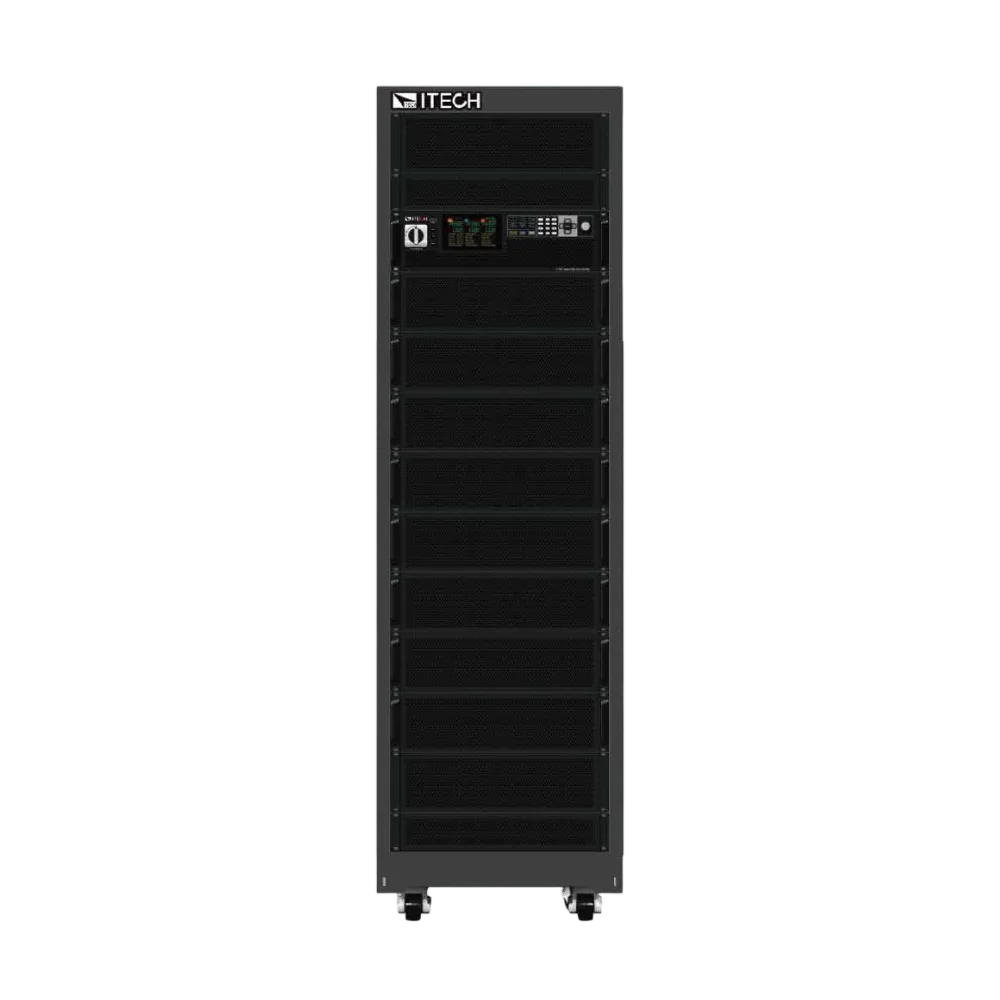

The ITECH IT78540-1050-360 is a three-phase AC power supply designed to deliver a power output of 540,000 watts. It operates at a voltage of 1050 volts line-to-neutral and 1818 volts line-to-line, with a current capacity of 360 amps per phase. The device supports a maximum frequency of 2400 Hz, covering a frequency range from 16 Hz to 2400 Hz. It features a single output and includes remote control functionality for convenient operation. The power supply is housed in a 37U*2 configuration, indicating its size and rack unit dimensions. This model is suitable for applications requiring high power and precise frequency control within the specified range.
Video
IT78540-1050-360
Technical data
Specifications
6- Power
- 540000 W
- Voltage
- 1050 V
- Current
- 360 A
- Output Number
- 1
- Remote Control
- Yes
- Max Frequency
- 2400 Hz
