SDL1020X-E
200W；DC150V/30A，CC Dynamic Mode 25KHz ；current rise time range 0.001-2.5A/us; 1mV/1mA;3.5' TFT-LCD; RS232/USB/LAN/GPIB
Article no.
SDL1020X-E
- Power
- 200 W
- Voltage
- 200 V
- Current
- 30 A
- Output Number
- 1
CHF 460.73
incl. 8.1% VAT · CHF 426.21 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 200 W power
- 200 V voltage
- 30 A current
- 1 output number
- Remote Control

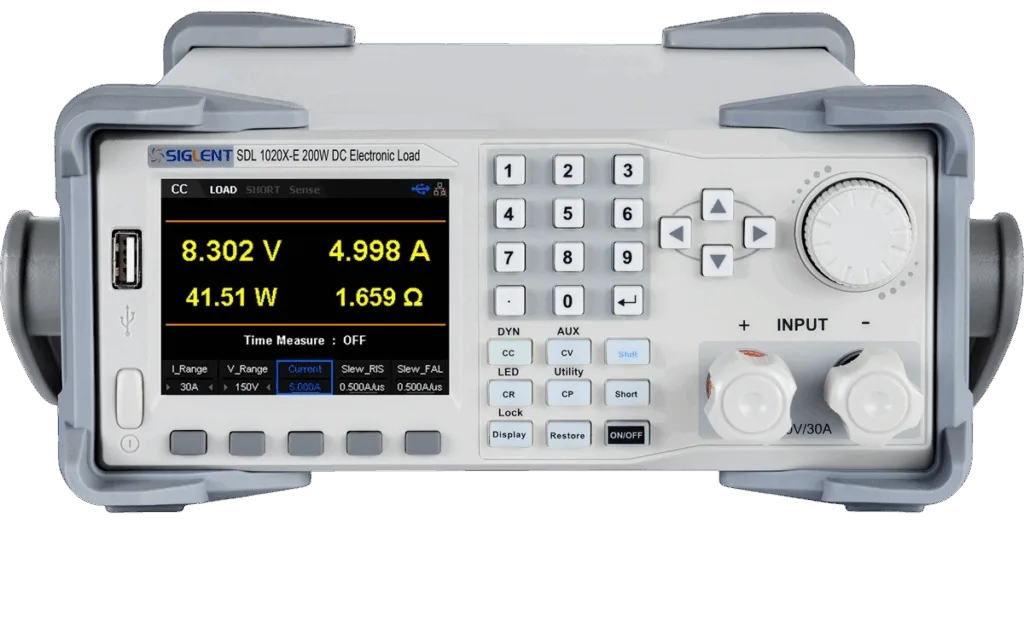

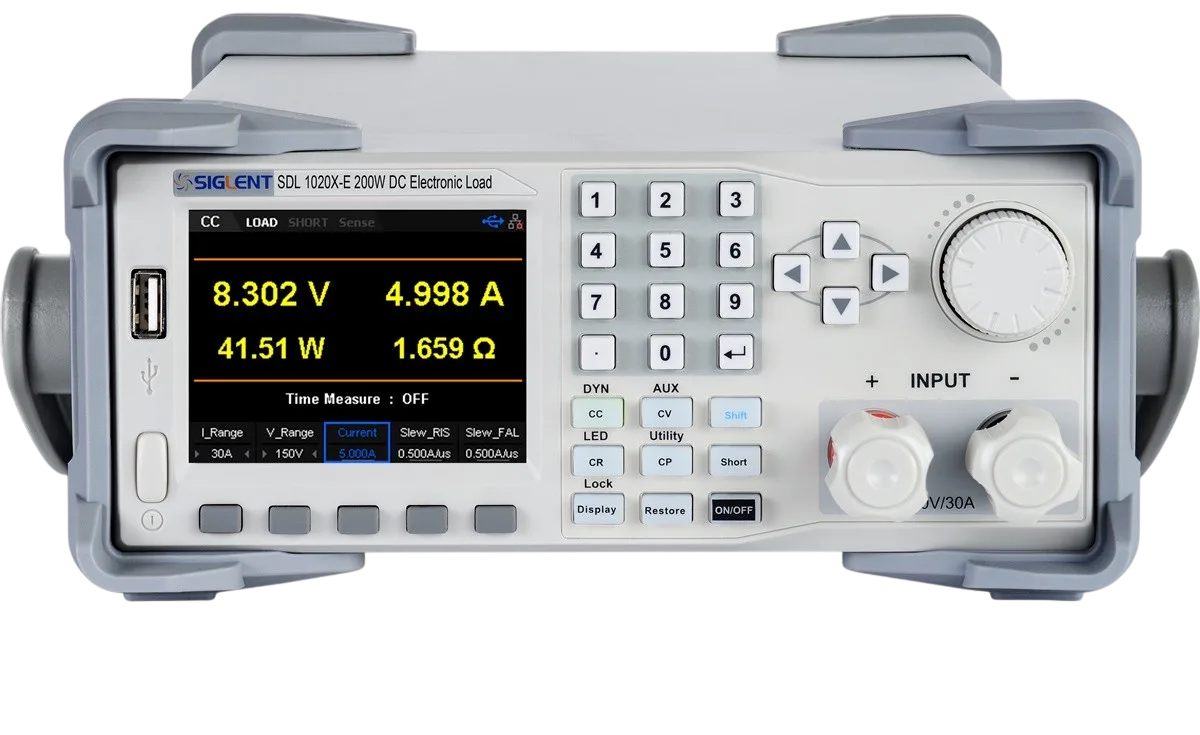

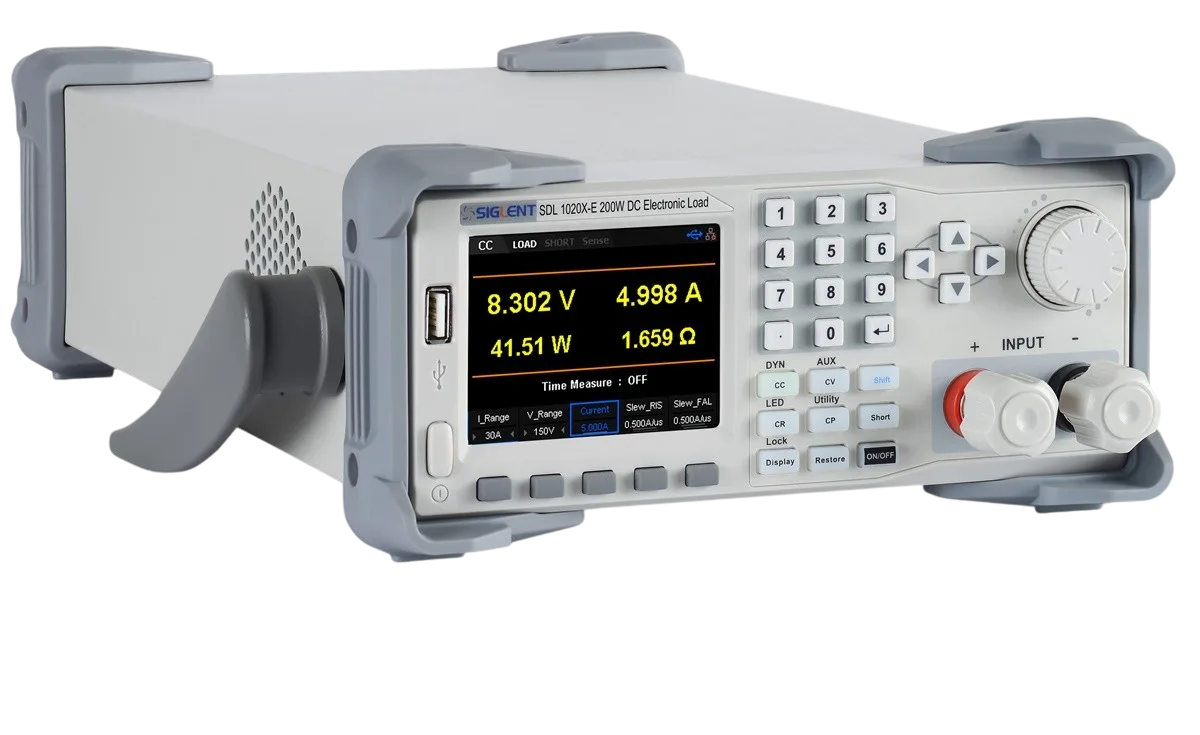

The SDL1020X-E from Siglent delivers a power output of 200W with a maximum voltage of 150V and a current capacity of 30A. It features a CC Dynamic Mode operating at 25KHz and supports a current rise time range from 0.001 to 2.5A per microsecond. The device includes a 3.5-inch TFT-LCD for display purposes and offers multiple connectivity options such as RS232, USB, LAN, and GPIB interfaces. It has a single output channel and supports remote control functionality, allowing for flexible operation. The measurement resolution is set at 1mV per 1mA, providing precise control and monitoring of electrical parameters. This model is designed to accommodate various testing and measurement needs with its combination of power, speed, and interface versatility.
Video
SDL1020X-E
Technical data
Specifications
5- Power
- 200 W
- Voltage
- 200 V
- Current
- 30 A
- Output Number
- 1
- Remote Control
- Yes
Presentation
Product presentation
PDFDocuments
