IT78810-700-810
700V L-N, 1200V L-L, 810Arms/ph, 810kVA, 3φ, AC Power Supply, 27U*2, 16-2400 Hz
Article no.
IT78810-700-810
- Power
- 810000 W
- Voltage
- 700 V
- Current
- 810 A
- Output Number
- 1
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 810000 W power
- 700 V voltage
- 810 A current
- 1 output number
- Remote Control

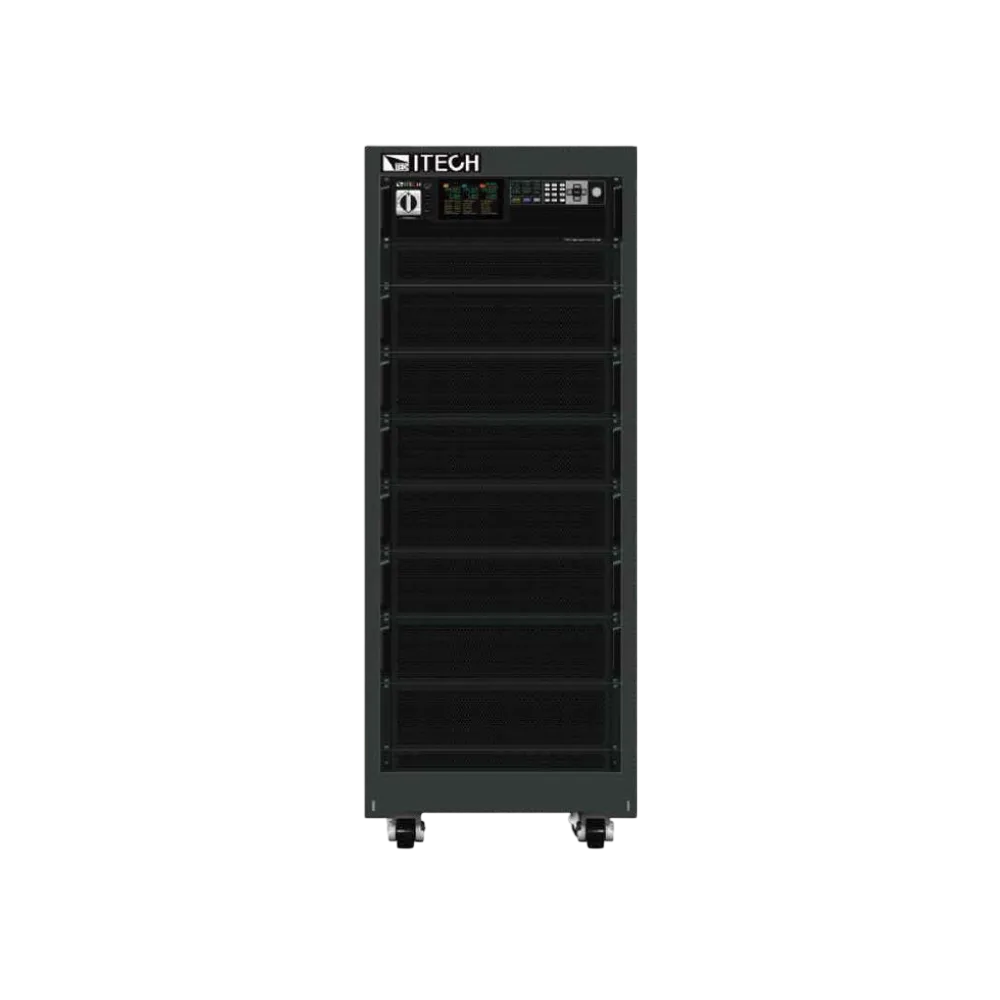

The ITECH IT78810-700-810 is an AC power supply designed to deliver a power output of 810,000 watts with a voltage rating of 700 volts line-to-neutral and 1200 volts line-to-line. It supports a current of 810 amps per phase and operates on a three-phase system. The device offers a maximum frequency range from 16 Hz up to 2400 Hz, making it suitable for a variety of applications requiring variable frequency power. It features a single output channel and includes remote control capability for convenient operation. The power supply is housed in a configuration of 27U*2, indicating its rack size or physical dimensions. With a power rating of 810 kVA, this unit is designed to handle substantial electrical loads while maintaining stable performance across its specified voltage and frequency ranges.
Video
IT78810-700-810
Technical data
Specifications
6- Power
- 810000 W
- Voltage
- 700 V
- Current
- 810 A
- Output Number
- 1
- Remote Control
- Yes
- Max Frequency
- 2400 Hz
