PCBITE-4022

Description

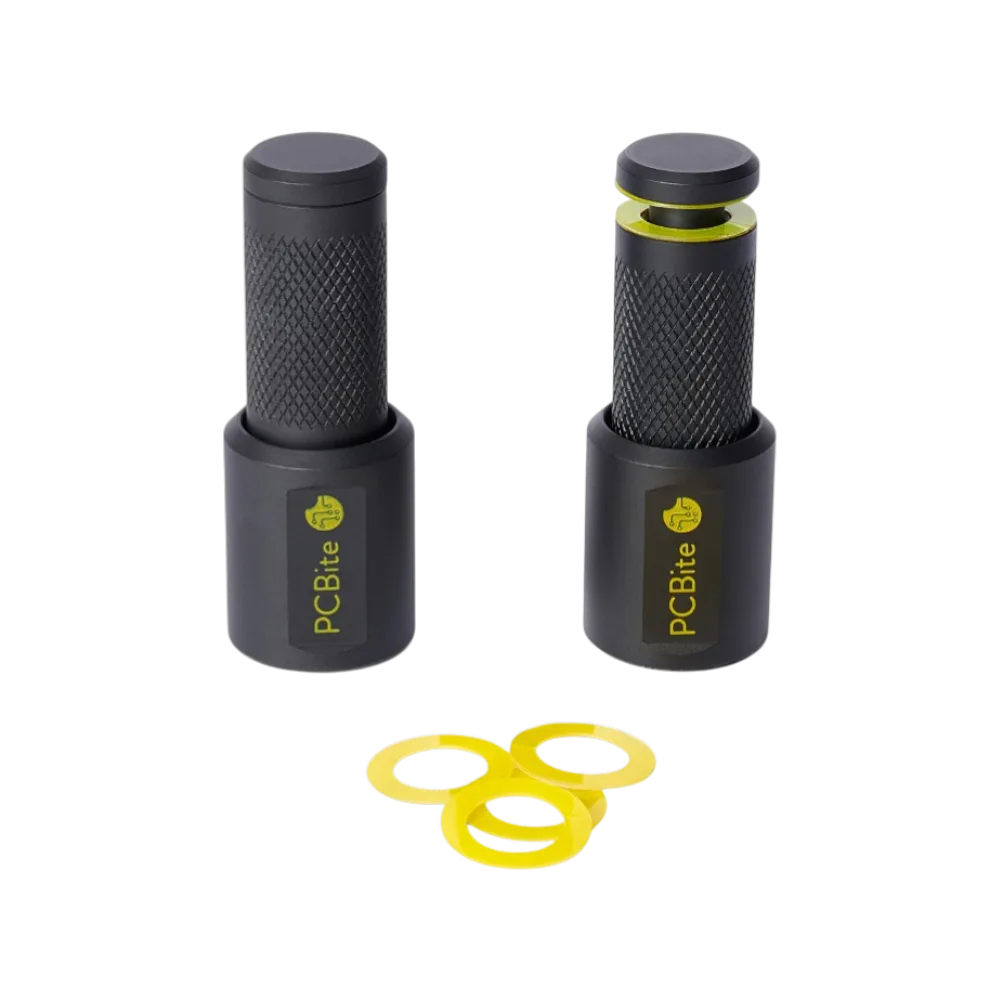

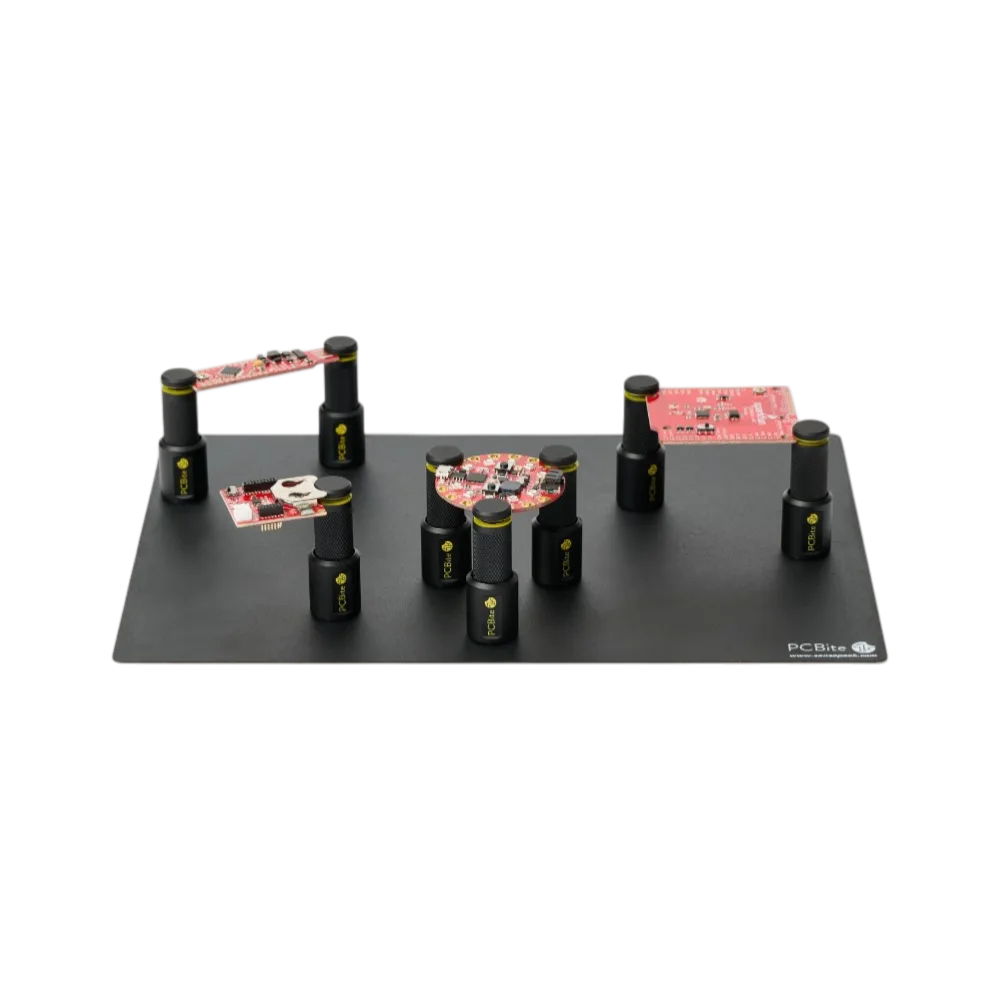

The Sensepeek PCBITE-4022 is a dedicated hardware expansion set designed to provide additional stability and support for complex circuit board configurations. It features two complete PCBite holders and a corresponding set of yellow insulation washers, allowing for a total of six or more support points when integrated with standard kits. The holders are CNC-machined from 6061-grade aluminum and equipped with powerful neodymium magnets for secure, tool-free positioning on any stainless steel base plate. This model includes a spring-loaded sleeve mechanism that enables rapid board mounting while maintaining a firm, vibration-resistant grip. The provided yellow washers offer critical dielectric insulation, preventing electrical shorts between the PCB and the metal holder body during powered testing. Its specifications make it ideal for supporting oversized, irregularly shaped, or heavy PCBs that require extra reinforcement. The combination of high-strength magnetic mounting and integrated insulation supports comprehensive board stabilization for precise measurement and rework.

Additional information

2x PCBite PCB holders
