PCBITE-6016

Description

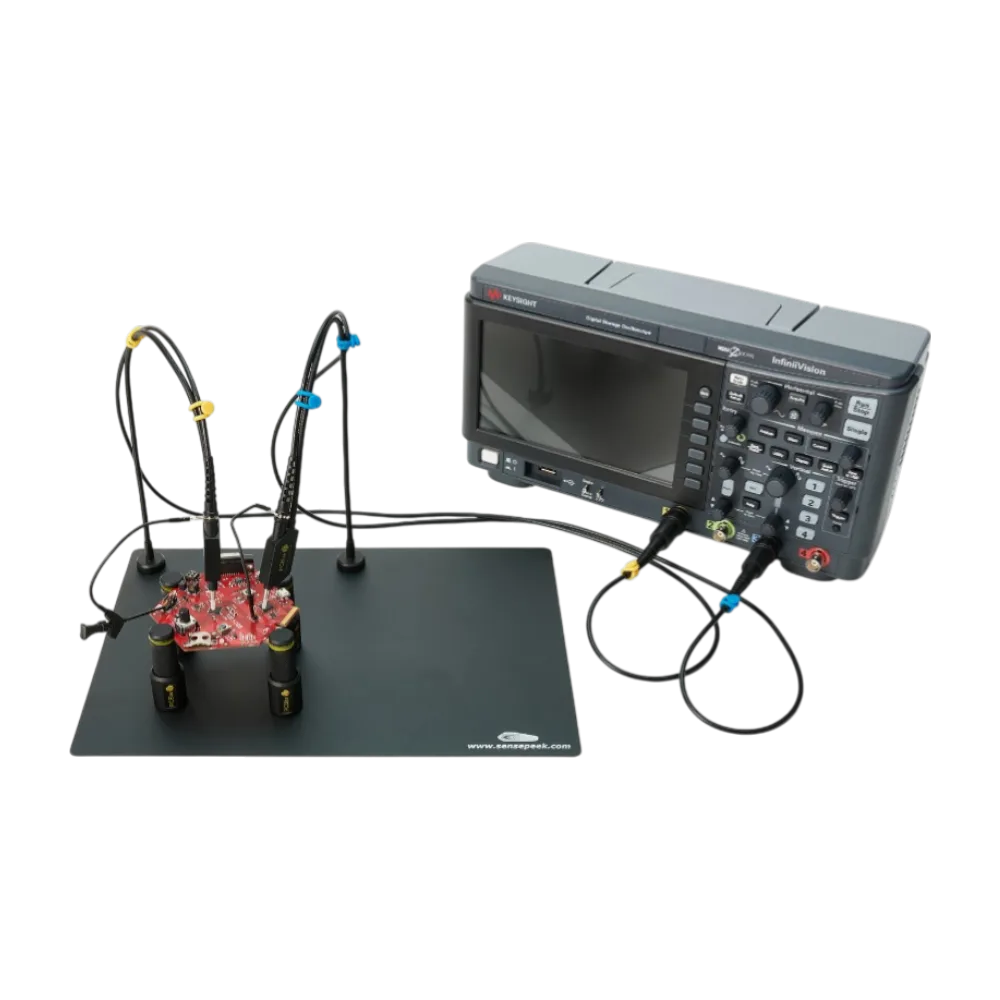

The Sensepeek PCBITE-6016 is a professional-grade oscilloscope kit featuring two SQ200 200 MHz passive probes and a complete set of board holders. Designed for high-fidelity waveform analysis, the probes feature a 10:1 attenuation ratio with automatic scaling support for compatible oscilloscopes. The SQ series is engineered with an insulated body and a lowered center of gravity, ensuring maximum stability during long-duration triggering sessions on fine-pitch components. This model includes a large DIN A4 base plate with a dual-surface finish—mirror-polished for underside inspection and matte for reduced glare—along with a pre-fitted insulation cover. The system provides multiple grounding options, including unique ground springs that maintain rated bandwidth during hands-free operation. With a 10 MΩ input resistance and a compact 0.5 mm spring-tipped needle, this kit supports comprehensive signal acquisition for hardware development and high-speed digital debugging.

Additional information

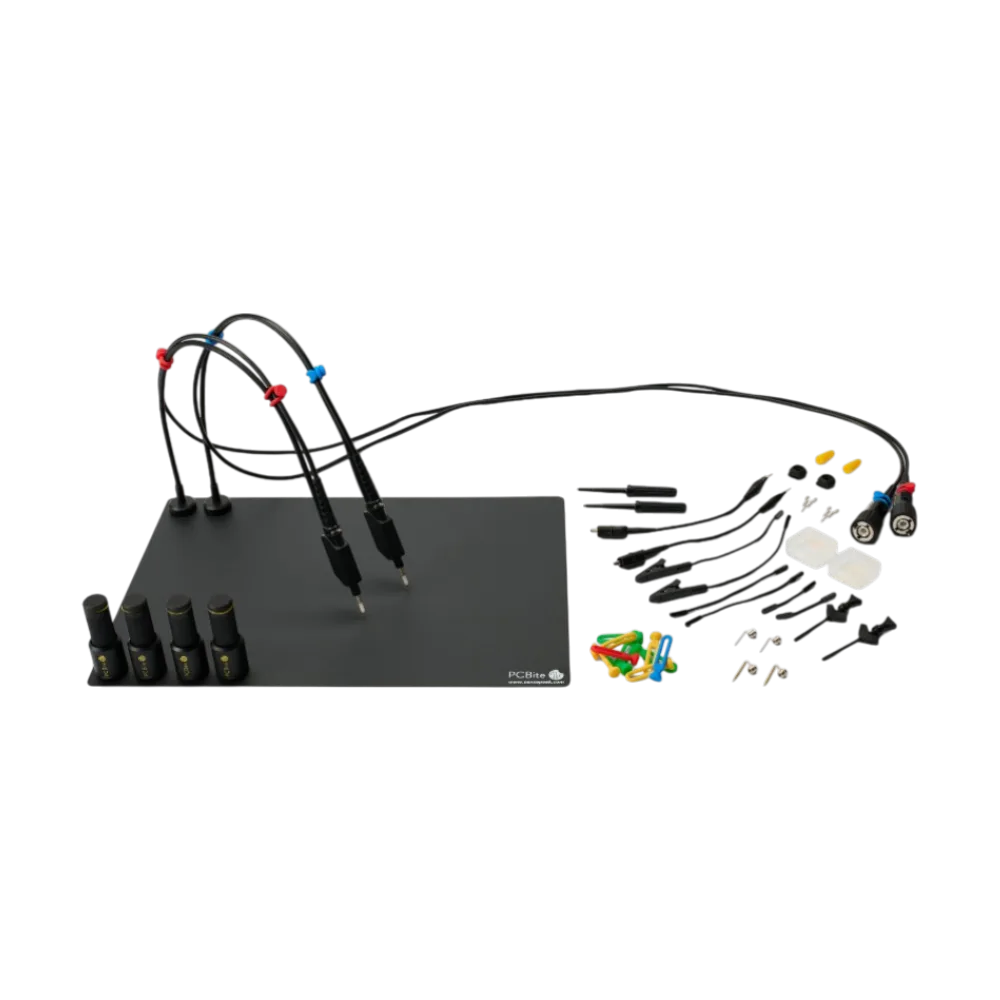

PCBite kit with 2x SQ200 200 MHz handsfree oscilloscope probes
