PCBITE-6023

Description

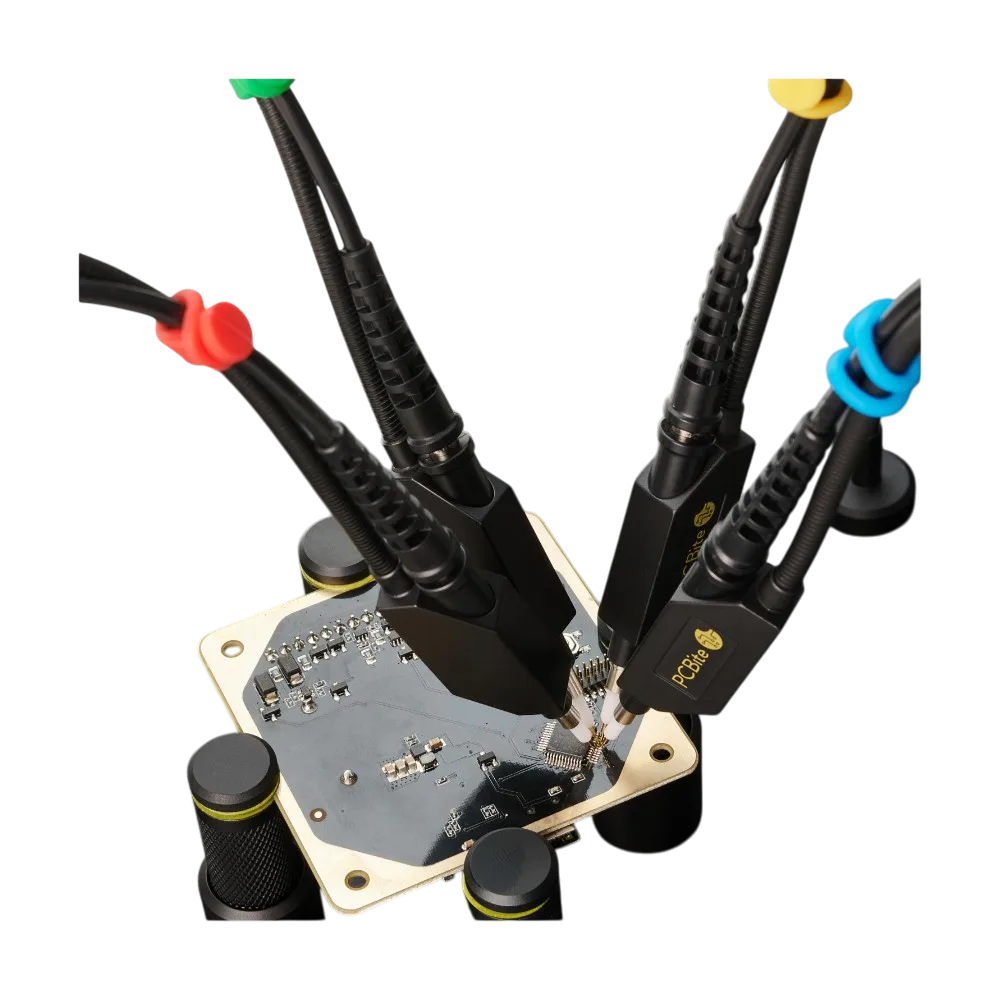

The Sensepeek PCBITE-6023 is a high-bandwidth hands-free probing system featuring the SQ350 passive oscilloscope probe. It offers a 350 MHz bandwidth and a 10:1 attenuation ratio, making it the premier choice for high-speed signal integrity analysis and detailed waveform characterization. The device is part of the advanced SQ series, featuring an insulated probe body and a lowered center of gravity to ensure maximum stability on fine-pitch components. This model includes a 0.5 mm spring-loaded test needle and supports oscilloscopes with automatic scaling. The system is supplied with a versatile grounding kit, including specialized ground springs designed to maintain the rated 350 MHz bandwidth during total hands-free operation. Its technical specifications, including an input capacitance of 11 pF and a 300 V CAT II safety rating, support professional-grade development and high-frequency digital debugging.

Additional information

SQ350 - 350Mhz handsfree oscilloscope probe
