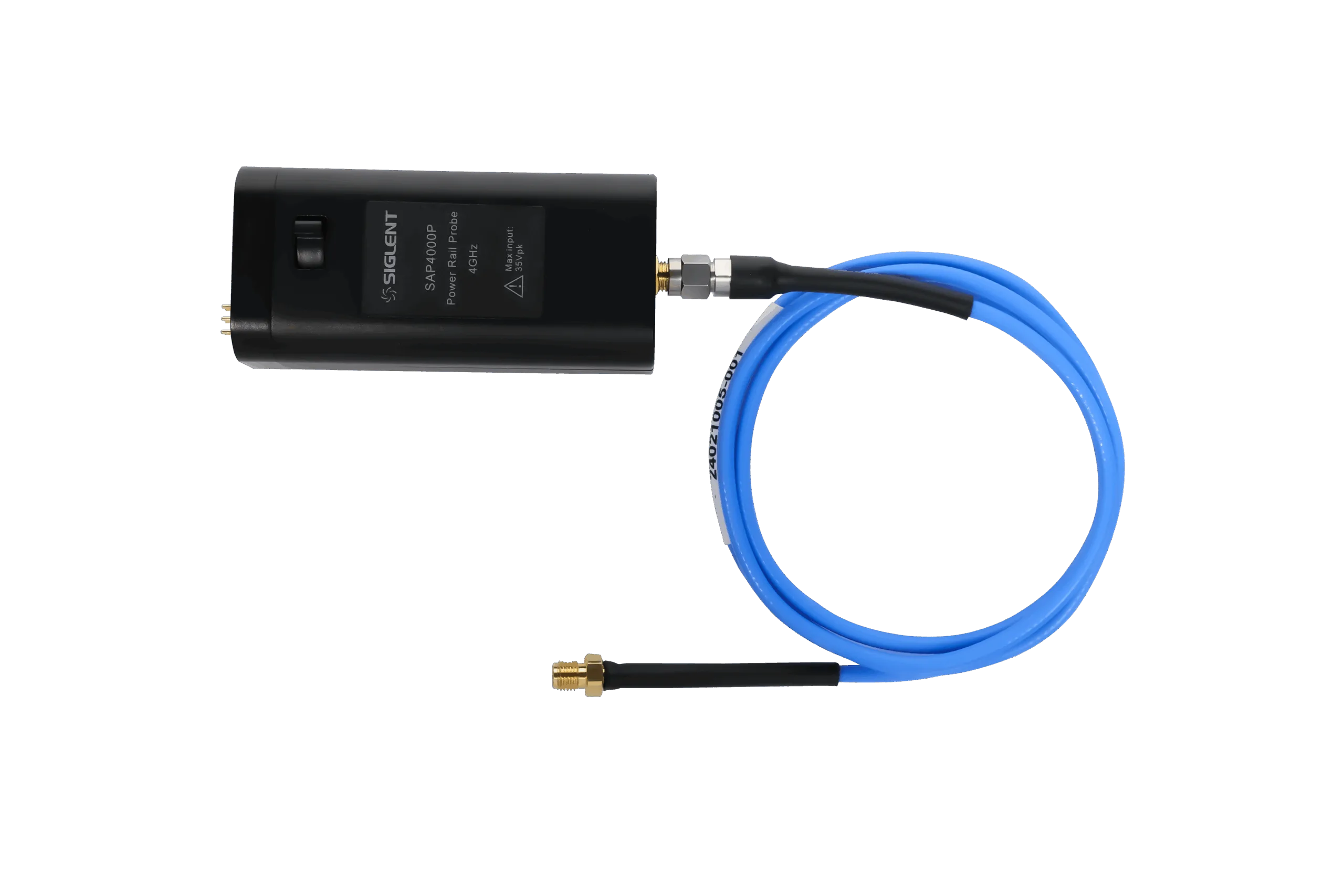

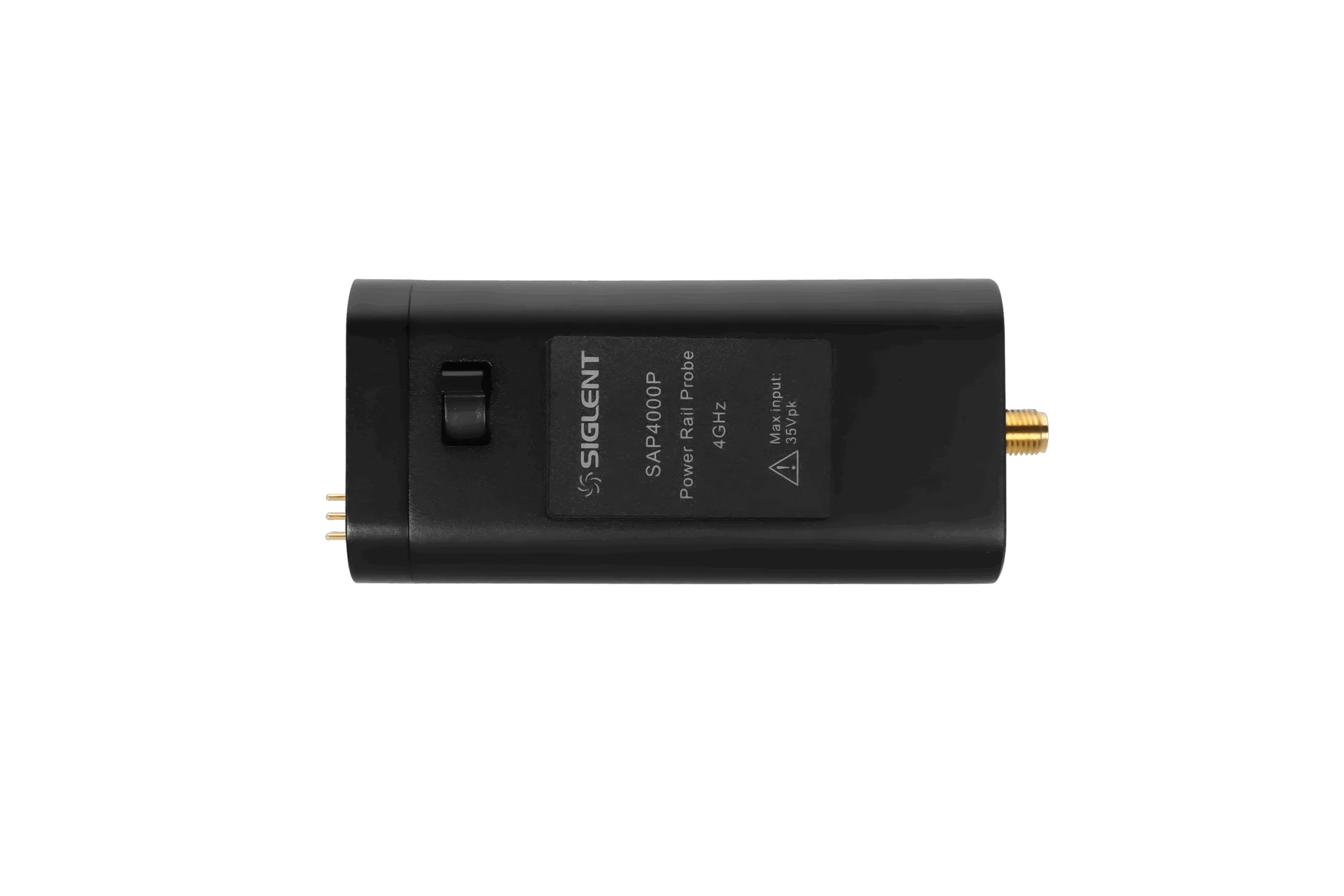

SAP4000P

4 GHz power rail probe; low frequency resistance 20 kΩ; high frequency resistance 50 Ω; offset voltage range ±24 V; attenuation ratio 1.1:1; dynamic range ±600 mV

Article no. SAP4000P

Bandwidth: 4000 MHz
Voltage Max: 1.2 V
Interface: Siglent

CHF 4'458.34

incl. 8.1% VAT · CHF 4'124.27 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

4000 MHz bandwidth
1.2 V voltage max
Siglent interface

The SAP4000P from Siglent is a 4 GHz power rail probe designed with a low frequency resistance of 20 kΩ and a high frequency resistance of 50 Ω. It features an offset voltage range of ±24 V, allowing for versatile measurement capabilities across different voltage levels. The probe has an attenuation ratio of 1.1:1, which helps maintain signal integrity during testing. Its dynamic range is ±600 mV, providing a suitable window for capturing power rail variations. The device operates with a bandwidth of 4000 MHz and supports a maximum voltage of 1.2 V. The interface is specified as Siglent, ensuring compatibility with related equipment. This combination of specifications makes the SAP4000P suitable for detailed power rail analysis in high-frequency applications.

Technical data
