SDM3055-SC
SDM3055+Scanner Card （SC1016）
Article no.
SDM3055-SC
- Channels
- 16
- Digits
- 5.5
- Vmax DC
- 1000 V
- Imax DC
- 7 A
CHF 732.56
incl. 8.1% VAT · CHF 677.67 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 16 channels
- 5.5 digits
- 1000 V vmax dc
- 7 A imax dc
- 750 V vmax ac

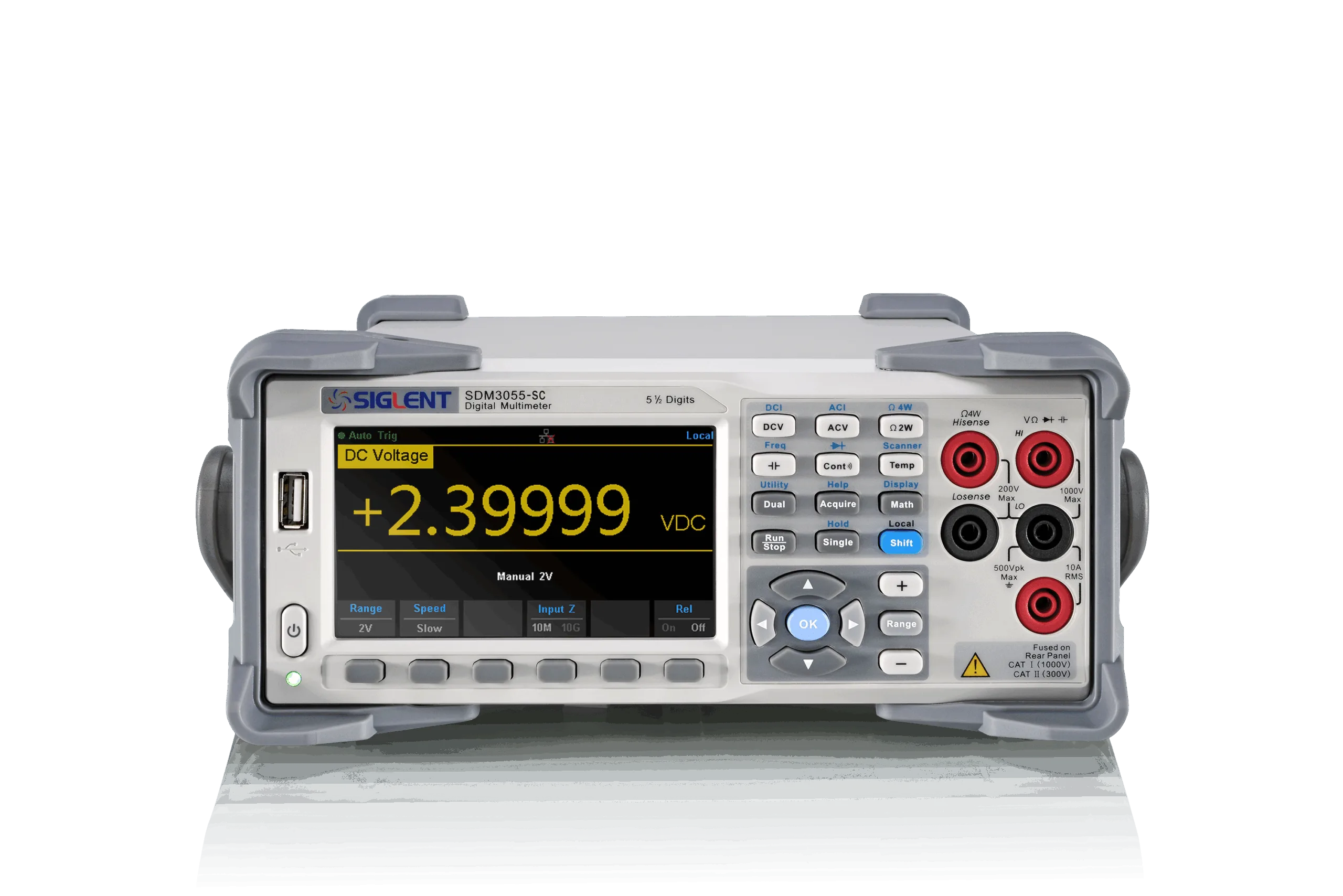

The SDM3055-SC from Siglent features a 5.5-digit display and supports a maximum DC voltage of 1000 volts along with a maximum DC current of 7 amperes. It is capable of handling up to 750 volts AC and offers a resistance measurement range up to 100 megaohms. This model includes True RMS measurement functionality, ensuring accurate readings of AC signals. The device is equipped with a scanner card (SC1016) that allows for a scan speed of 50 channels per second, facilitating efficient multi-channel measurements. These specifications make the SDM3055-SC suitable for various electrical testing and measurement applications where high voltage and current capabilities are required alongside precise resistance and RMS measurements.
Technical data
Specifications
8- Channels
- 16
- Digits
- 5.5
- Vmax DC
- 1000 V
- Imax DC
- 7 A
- Vmax AC
- 750 V
- Resistance Max
- 100 MΩ
- True RMS
- yes
- Scan Speed
- 50 Ch/s
