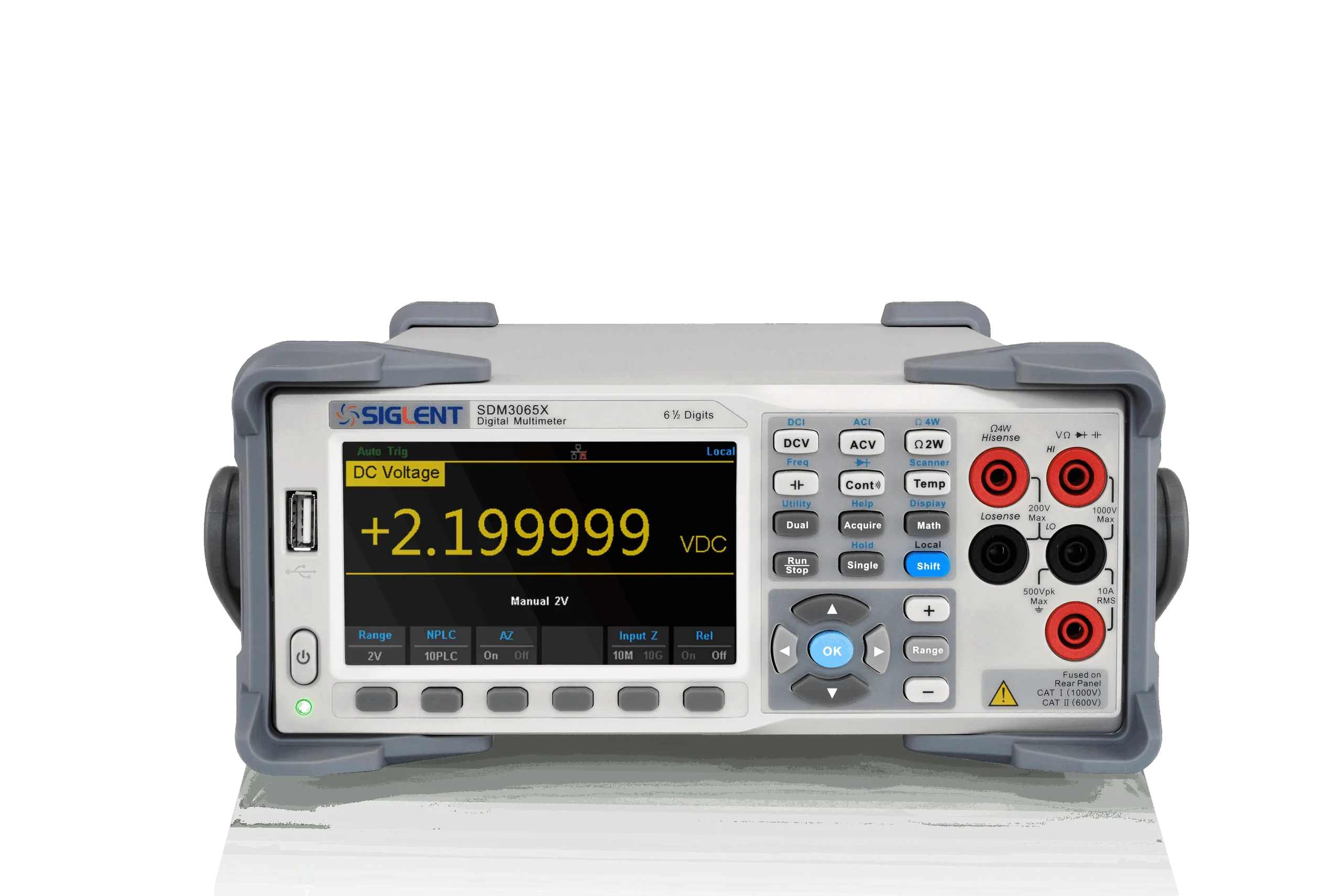

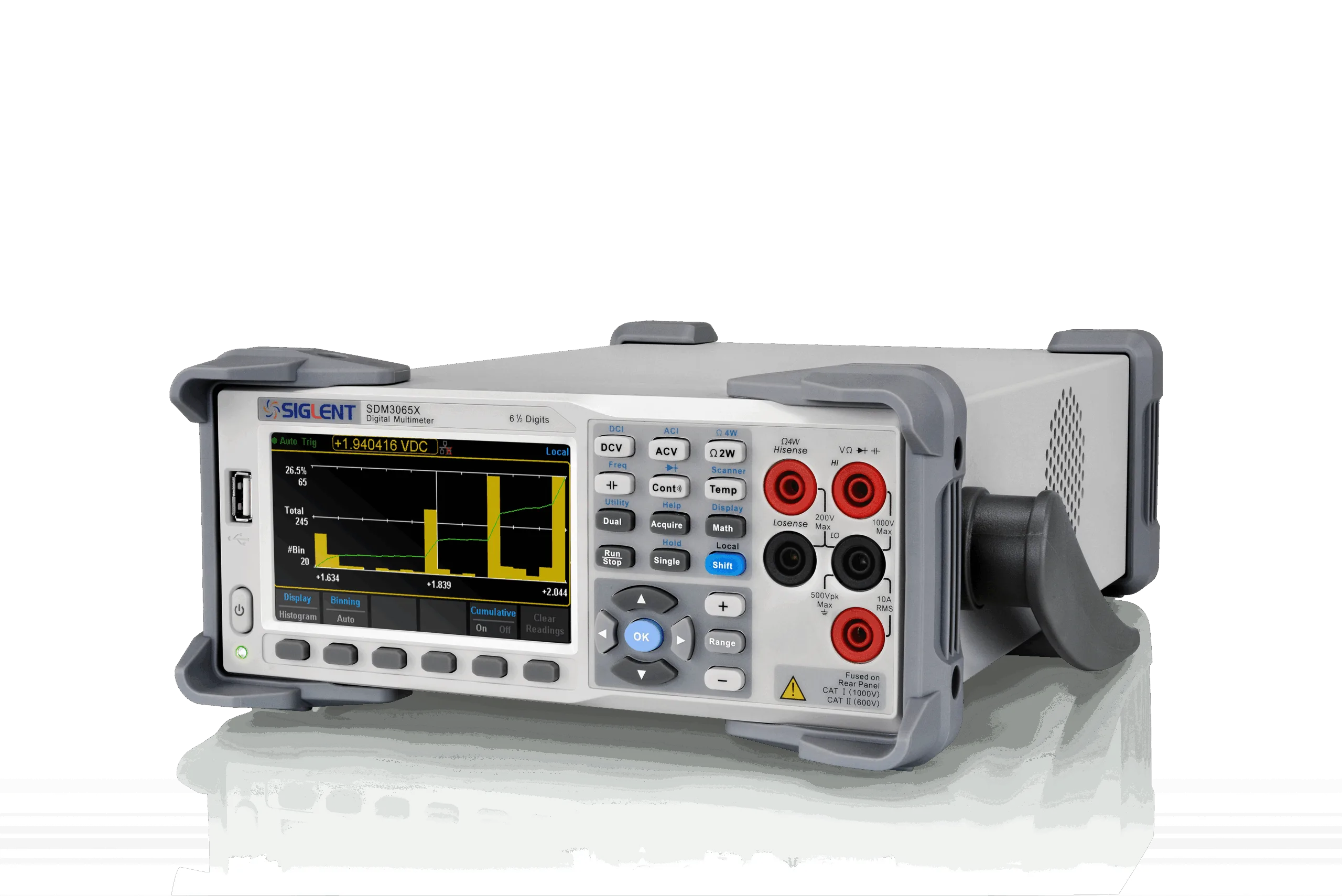

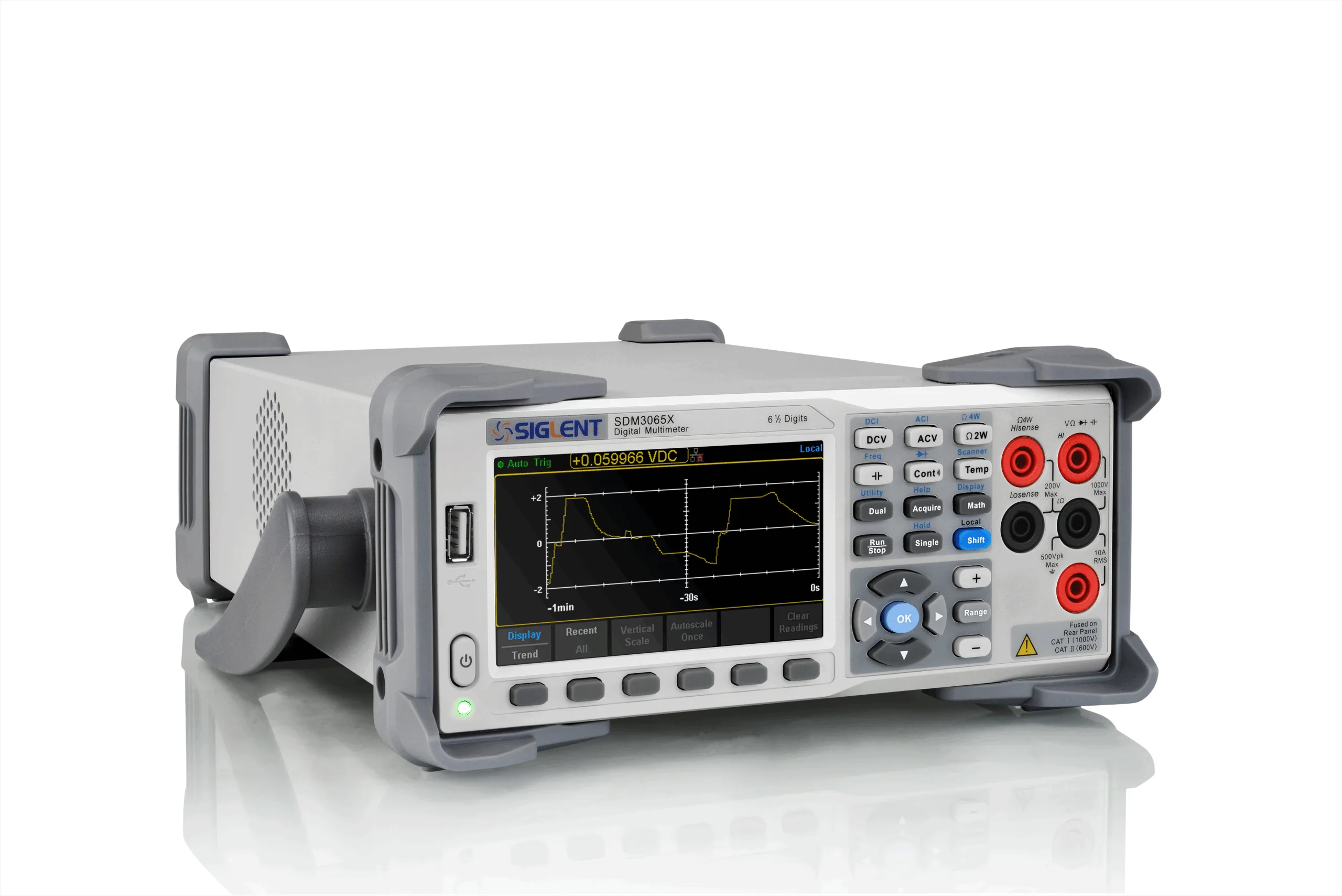

SDM3065X

6½-digit; 10000rdgs/s sampling speed; 4.3 inch (480 * 272) true color TFT-LCD screen display; True RMS AC voltage and AC current measurements; supports GPIB interface, Scanner card

Article no. SDM3065X

Digits: 6.5
Vmax DC: 1000 V
Imax DC: 7 A
Vmax AC: 750 V

CHF 723.11

incl. 8.1% VAT · CHF 668.93 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

6.5 digits
1000 V vmax dc
7 A imax dc
750 V vmax ac
100 MΩ resistance max

The SDM3065X by Siglent features a 6½-digit resolution and offers a sampling speed of 10,000 readings per second. It is equipped with a 4.3 inch true color TFT-LCD screen with a resolution of 480 by 272 pixels, providing clear and detailed visual output. This device supports True RMS measurements for both AC voltage and AC current, ensuring accurate readings in various electrical applications. The instrument supports a GPIB interface and is compatible with a scanner card, allowing for expanded connectivity and functionality. It has a maximum DC voltage rating of 1000 volts and a maximum DC current rating of 7 amperes. For AC measurements, the maximum voltage is rated at 750 volts. The device can measure resistance up to 100 megaohms. True RMS capability is included, enhancing the precision of AC measurements. The SDM3065X is designed to meet the needs of users requiring high-resolution and high-speed data acquisition in electrical testing and measurement tasks.

Technical data
