SDM4055A-SC
SDM4055+Scanner Card （SC1016）
Article no.
SDM4055A-SC
- Channels
- 16
- Digits
- 5.5
- Vmax DC
- 1000 V
- Imax DC
- 7 A
CHF 921.48
incl. 8.1% VAT · CHF 852.43 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 16 channels
- 5.5 digits
- 1000 V vmax dc
- 7 A imax dc
- 750 V vmax ac

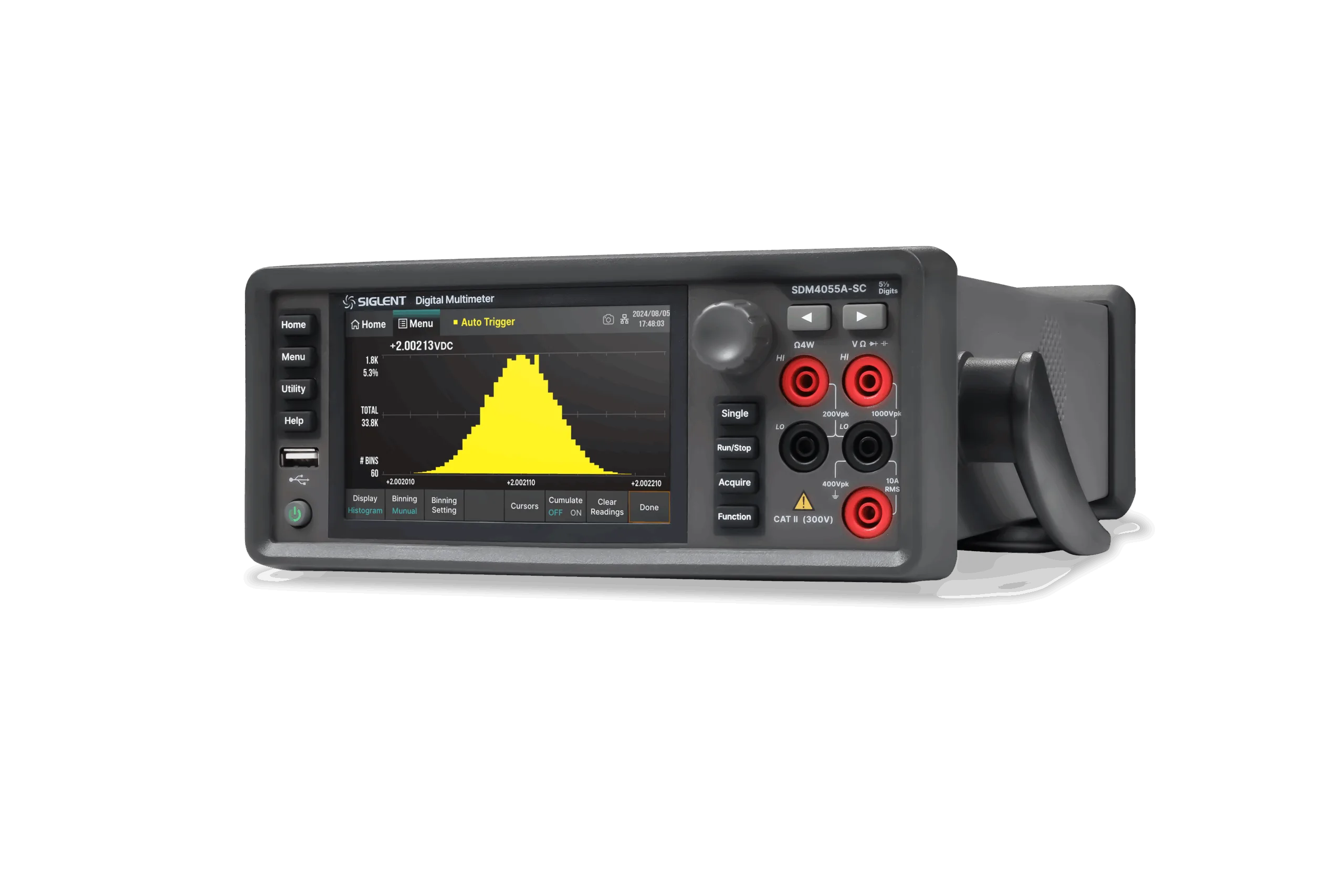

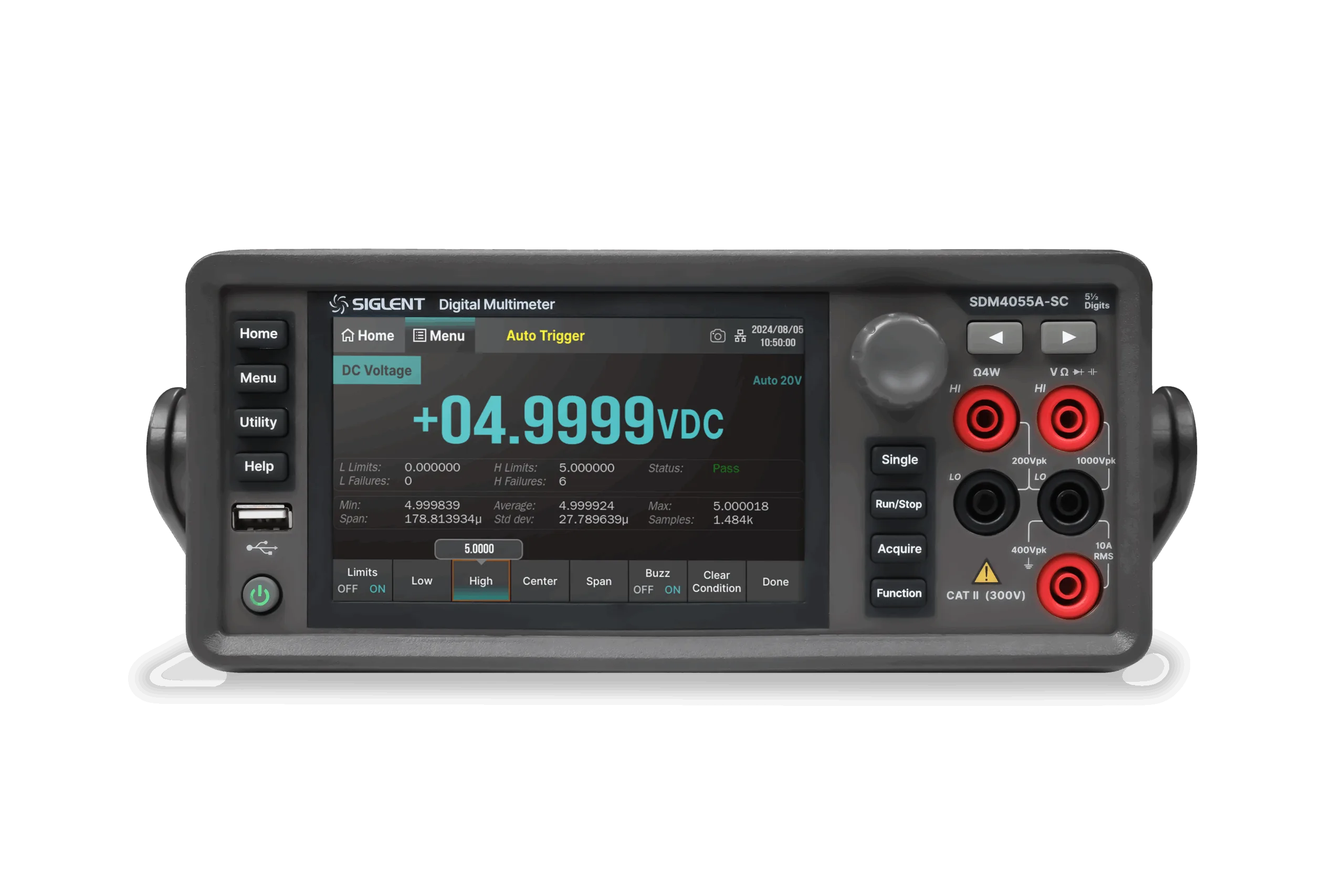

The SDM4055A-SC is a product from Siglent that includes the SDM4055 along with a Scanner Card (SC1016). It features a 5.5-digit display, providing precise measurement capabilities. The device supports a maximum DC voltage of 1000 volts and a maximum DC current of 7 amperes, allowing it to handle high-voltage and high-current applications. For AC measurements, it can manage up to 750 volts. The resistance measurement capability extends up to 100 megaohms. This model includes True RMS functionality, ensuring accurate readings of AC signals regardless of waveform. The scanner card enables a scan speed of 50 channels per second, facilitating efficient multi-channel measurements.
Technical data
Specifications
8- Channels
- 16
- Digits
- 5.5
- Vmax DC
- 1000 V
- Imax DC
- 7 A
- Vmax AC
- 750 V
- Resistance Max
- 100 MΩ
- True RMS
- yes
- Scan Speed
- 50 Ch/s
