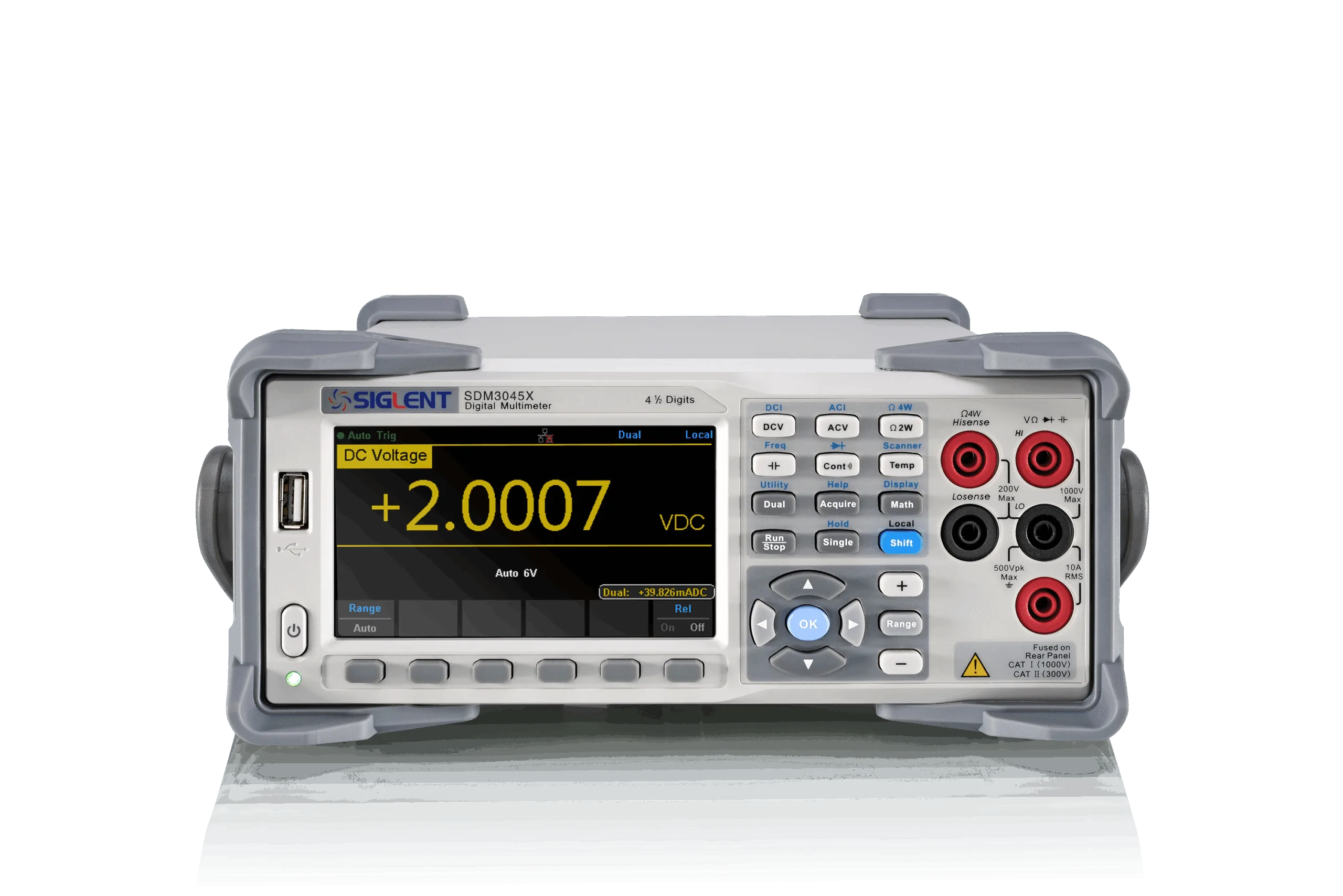

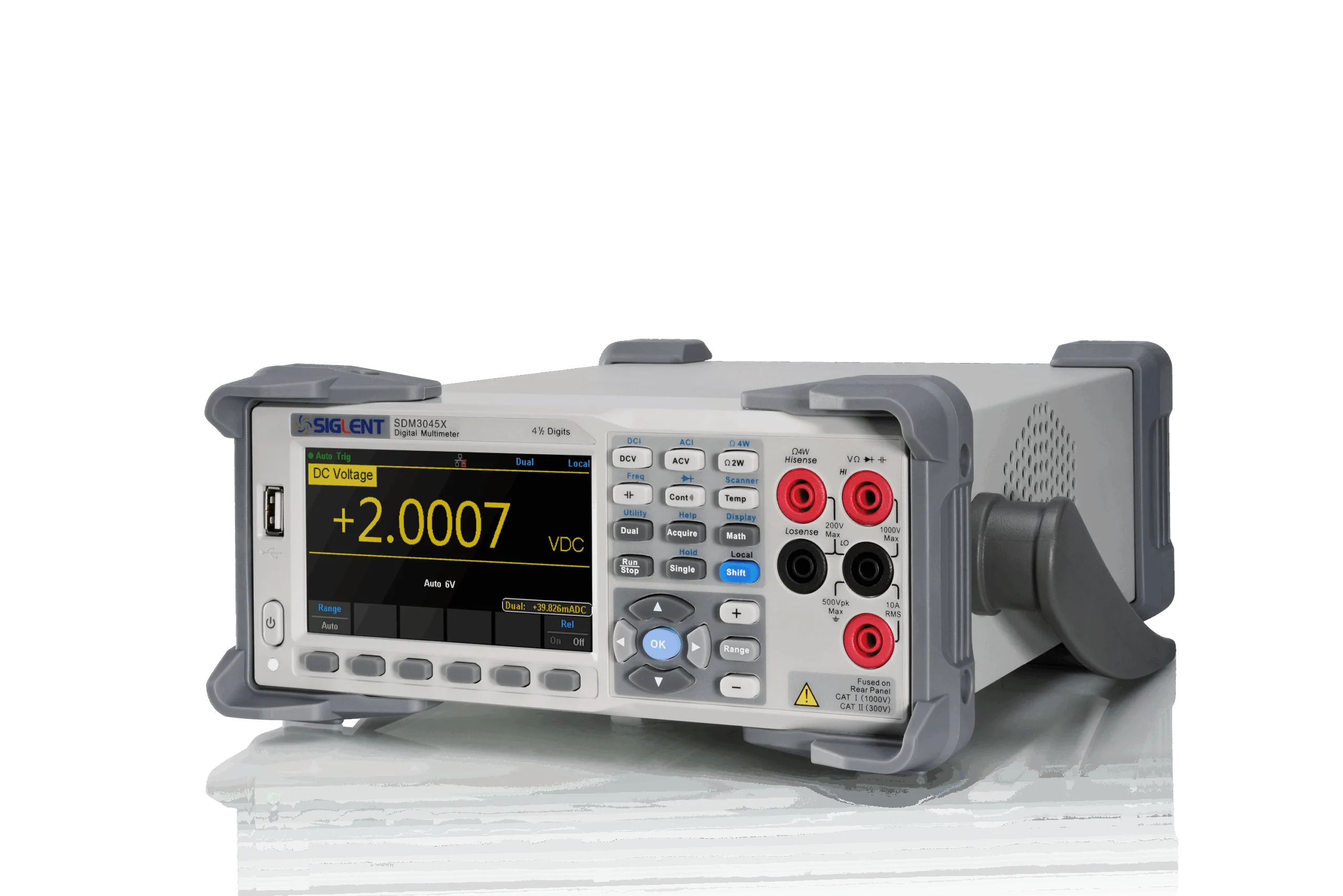

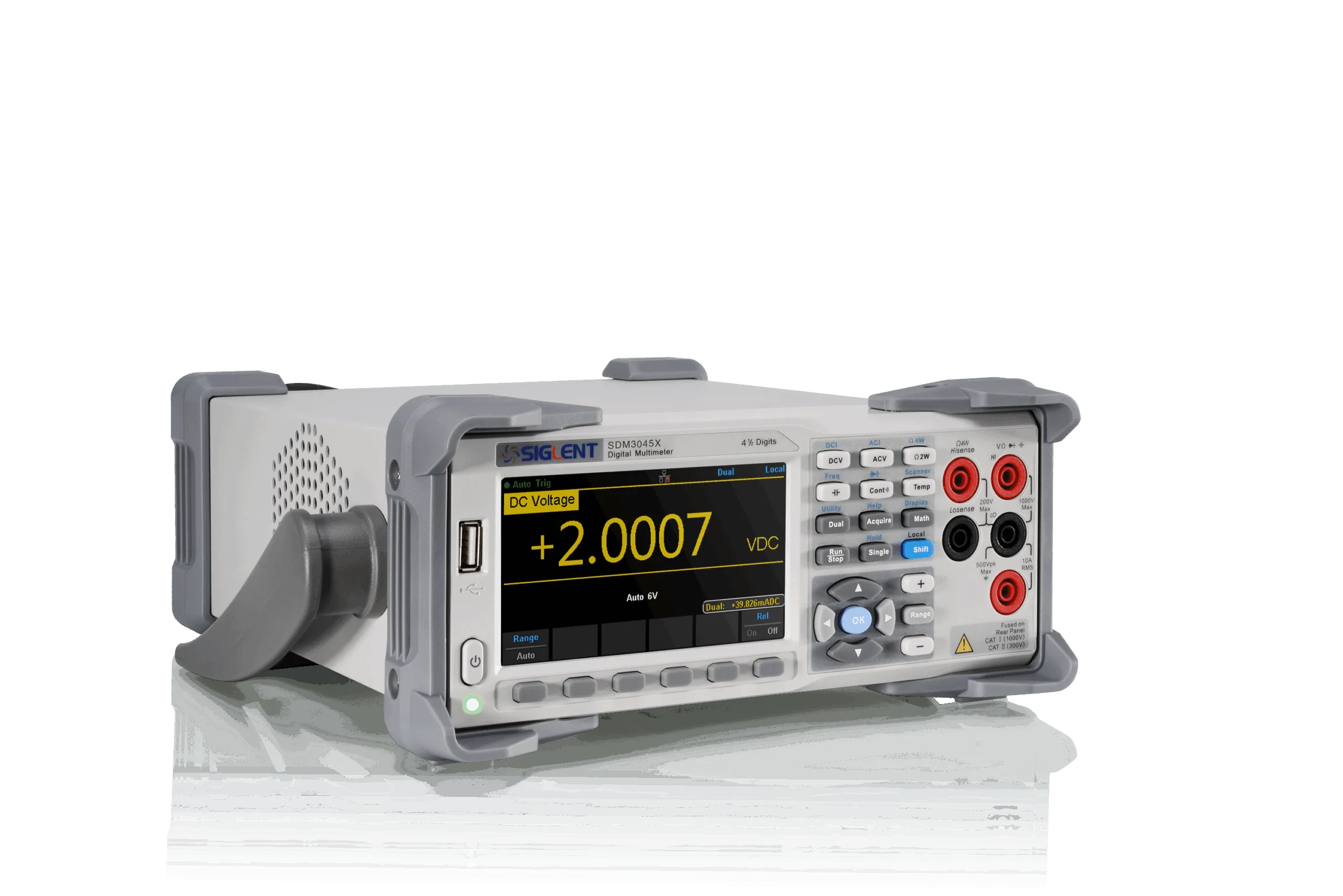

SDM3045X
4½-digit; 150rdgs / s measurement speed; 4.3 inch (480 * 272) true color TFT-LCD screen display; True RMS AC voltage and AC current measurements
Article no.
SDM3045X
- Digits
- 4.5
- Vmax DC
- 1000 V
- Imax DC
- 7 A
- Vmax AC
- 750 V
CHF 400.91
incl. 8.1% VAT · CHF 370.87 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4.5 digits
- 1000 V vmax dc
- 7 A imax dc
- 750 V vmax ac
- 100 MΩ resistance max
The SDM3045X from Siglent features a 4½-digit display and offers a measurement speed of 150 readings per second. It is equipped with a 4.3 inch true color TFT-LCD screen with a resolution of 480 by 272 pixels, providing clear and detailed visual output. This device supports True RMS measurements for both AC voltage and AC current, ensuring accurate readings under varying signal conditions. The maximum DC voltage it can handle is 1000 volts, while the maximum AC voltage rating is 750 volts. For current measurements, the maximum DC current is rated at 7 amperes. Additionally, the SDM3045X can measure resistance up to 100 megaohms. True RMS functionality is included, which is essential for precise AC measurements. This combination of features makes the SDM3045X suitable for a range of electrical measurement tasks.
Technical data
Specifications
6- Digits
- 4.5
- Vmax DC
- 1000 V
- Imax DC
- 7 A
- Vmax AC
- 750 V
- Resistance Max
- 100 MΩ
- True RMS
- yes
