SDM4065A-SC
SDM4065A+Scanner Card （SC1016）
Article no.
SDM4065A-SC
- Channels
- 16
- Digits
- 6.5
- Vmax DC
- 1000 V
- Imax DC
- 7 A
CHF 1'173.36
incl. 8.1% VAT · CHF 1'085.44 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 16 channels
- 6.5 digits
- 1000 V vmax dc
- 7 A imax dc
- 750 V vmax ac

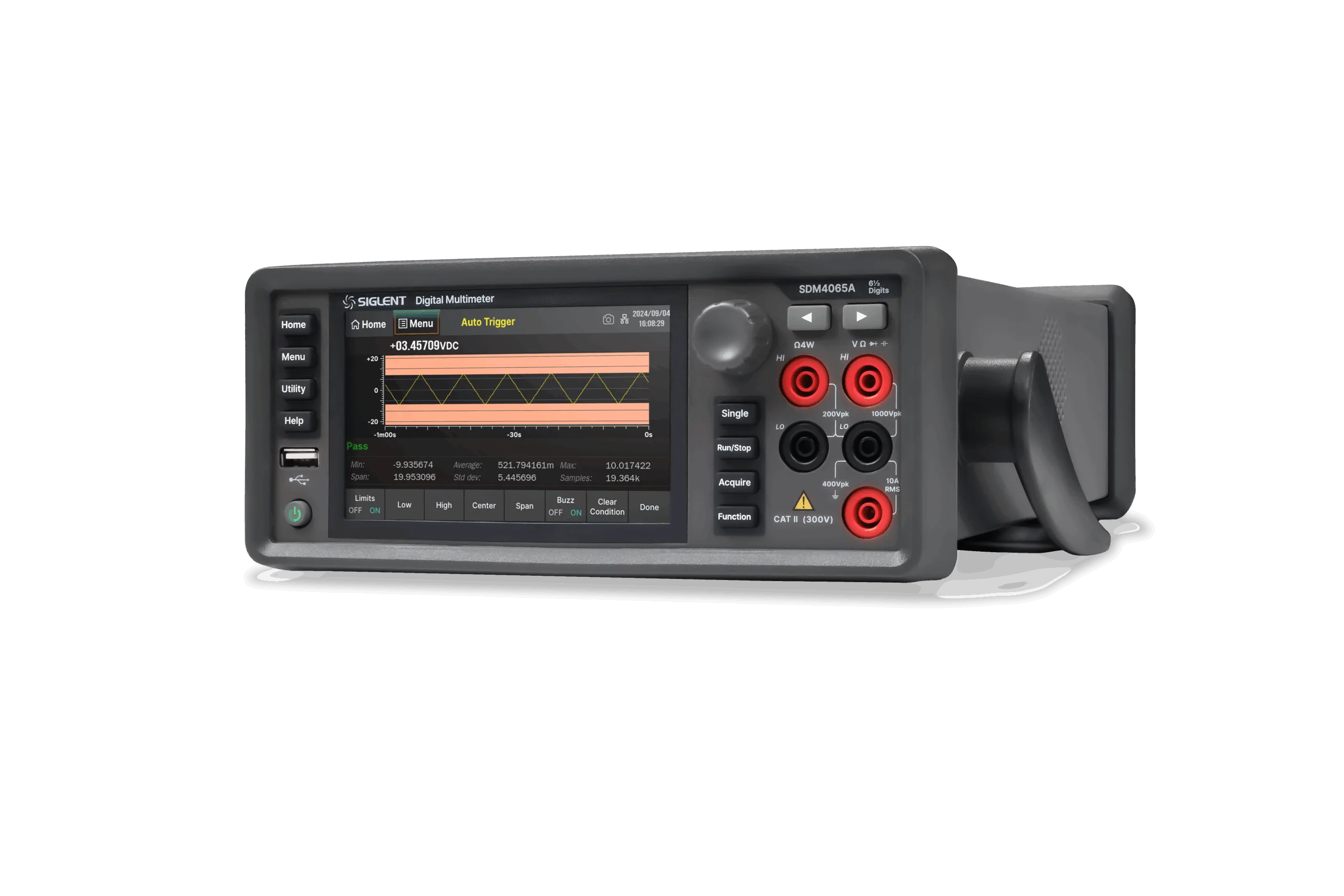

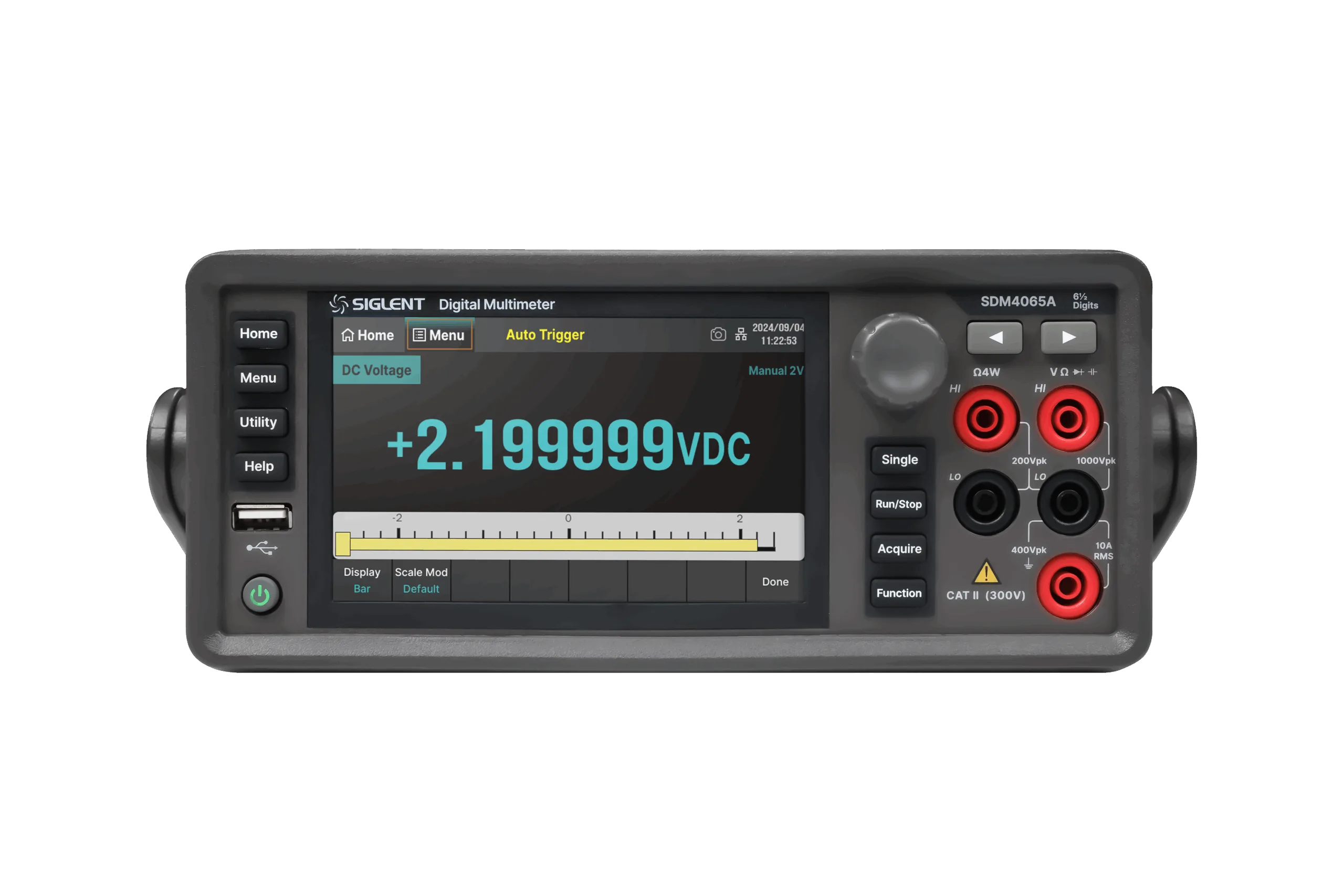

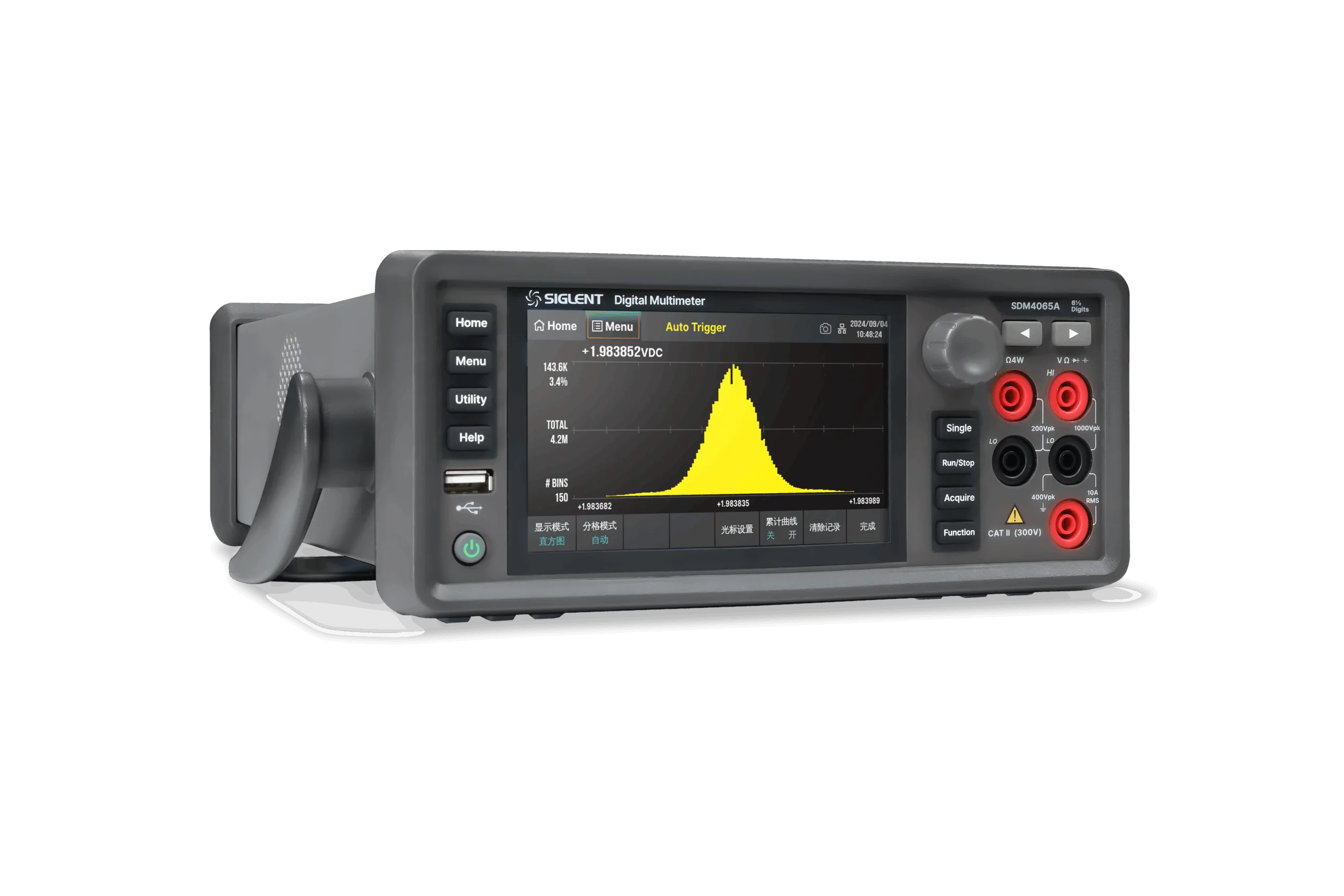

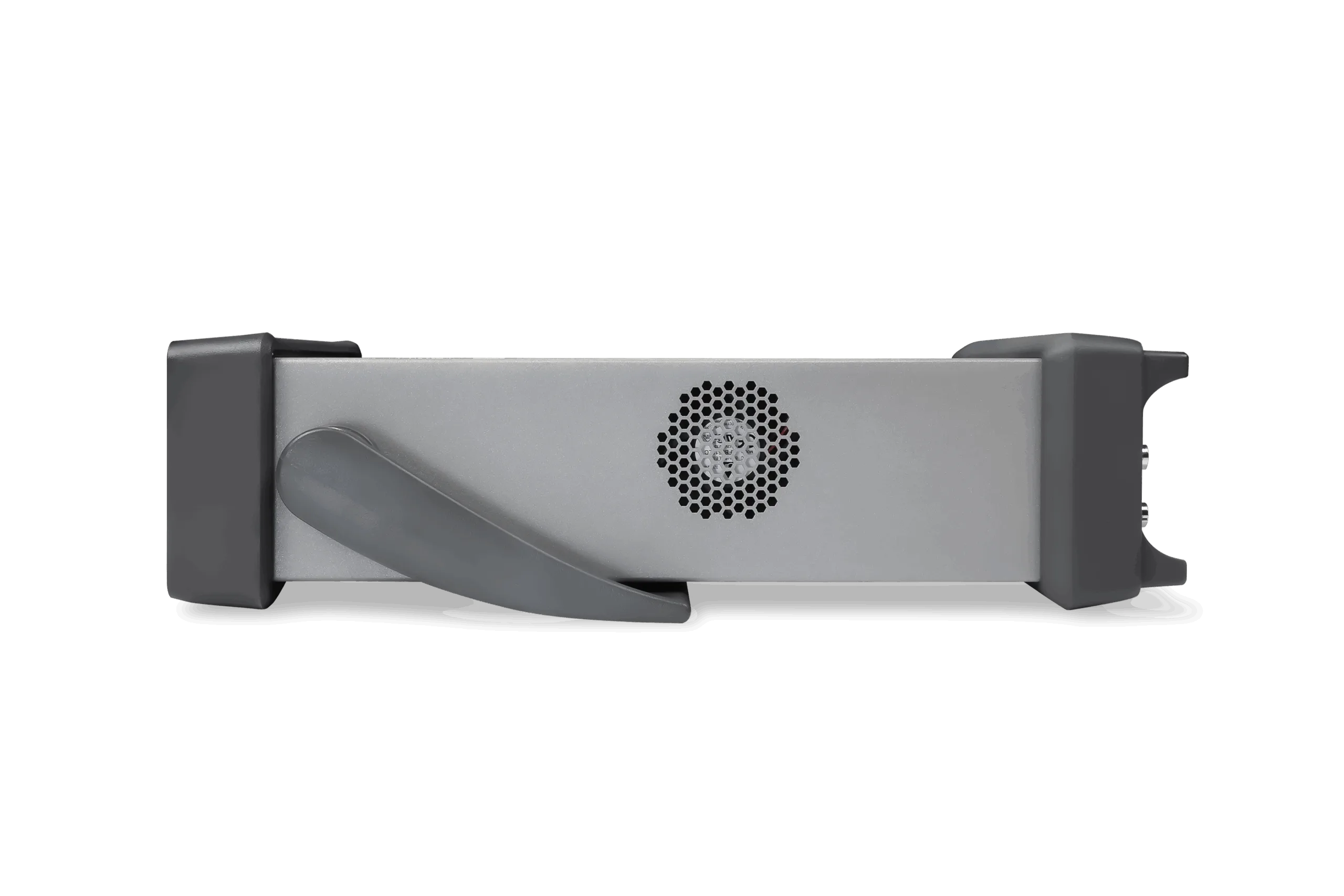

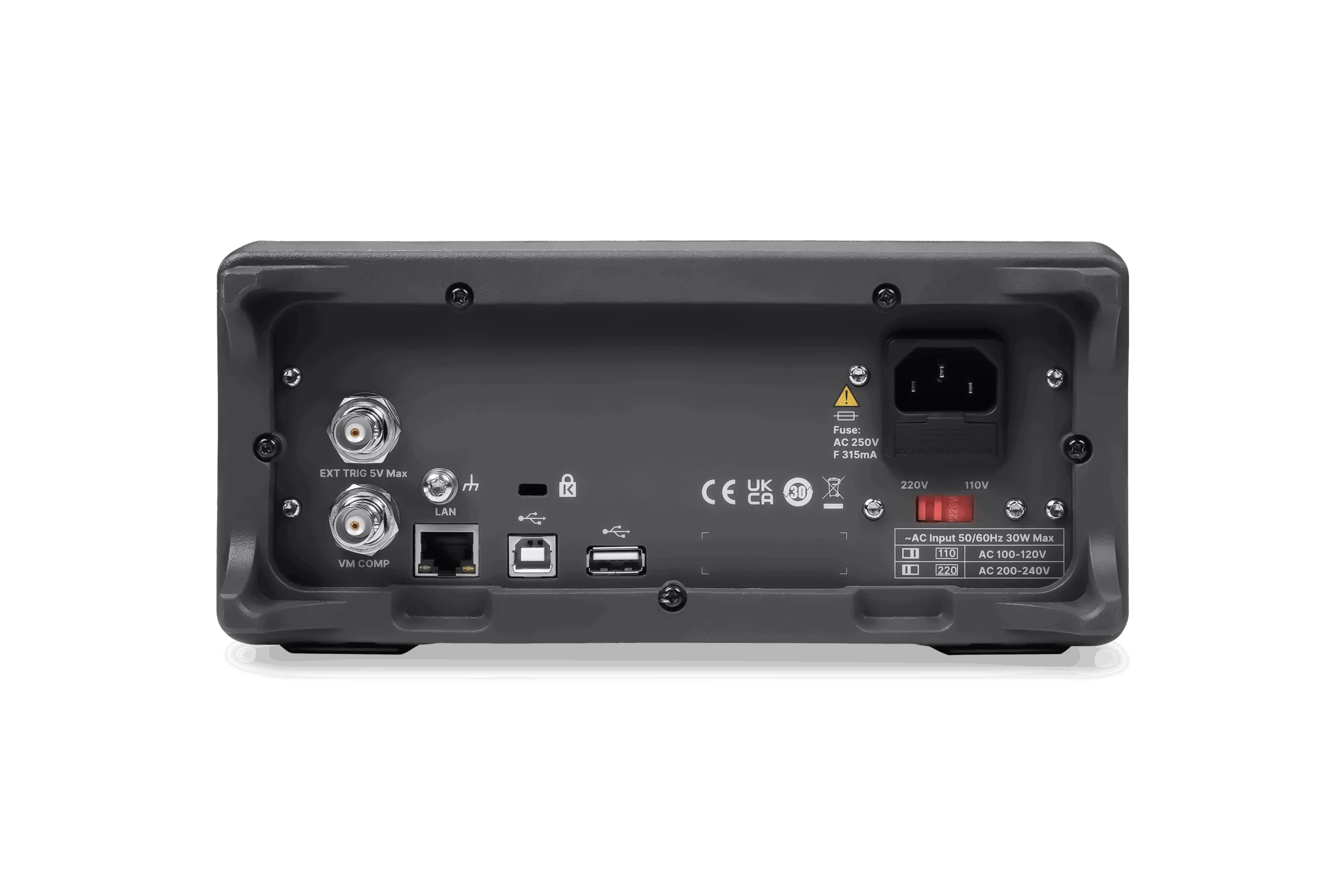

The SDM4065A-SC is a product from Siglent that includes the SDM4065A and a Scanner Card (SC1016). It features a 6.5-digit resolution, providing precise measurement capabilities. The device supports a maximum DC voltage of 1000 volts and a maximum DC current of 7 amperes. For AC measurements, it can handle up to 750 volts. The maximum resistance measurable by this product is 100 megaohms. It is equipped with True RMS functionality, ensuring accurate readings of alternating current signals. The scanner card included allows for a scan speed of 50 channels per second, facilitating efficient data acquisition across multiple inputs.
Technical data
Specifications
8- Channels
- 16
- Digits
- 6.5
- Vmax DC
- 1000 V
- Imax DC
- 7 A
- Vmax AC
- 750 V
- Resistance Max
- 100 MΩ
- True RMS
- yes
- Scan Speed
- 50 Ch/s
Presentation
Product presentation
PDFDocuments
