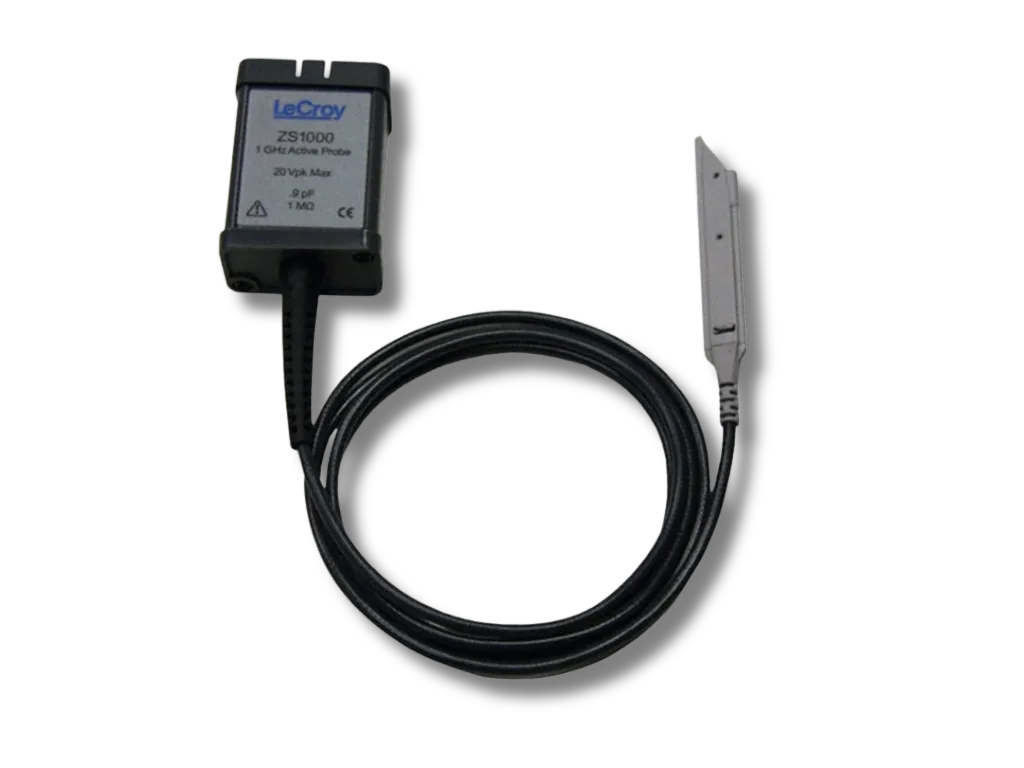

ZS1000
1 GHz, 0.9 pF, 1 Mega-Ω Active Voltage Probe
Article no.
ZS1000
- Bandwidth
- 1000 MHz
- Imax AC
- Voltage Max
- 8 V
- Interface
- LeCroy
CHF 1'848.51
incl. 8.1% VAT · CHF 1'710.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 1000 MHz bandwidth
- imax ac
- 8 V voltage max
- LeCroy interface
The Teledyne Lecroy ZS1000 is an active voltage probe designed to operate at a frequency of 1 GHz with a bandwidth of 1000 MHz. It features a low input capacitance of 0.9 pF and an input resistance of 1 Mega-Ω, which helps maintain signal integrity during measurements. The probe supports a maximum voltage of 8 V, making it suitable for a range of voltage measurement applications. It interfaces with LeCroy equipment, ensuring compatibility with specific test and measurement devices. The ZS1000 is engineered to provide precise voltage probing capabilities at high frequencies, supporting detailed signal analysis. Its design focuses on maintaining accuracy and reliability in high-speed electronic testing environments.
Technical data
Specifications
4- Bandwidth
- 1000 MHz
- Imax AC
- Voltage Max
- 8 V
- Interface
- LeCroy
