DPB1300
Bandwidth: 50MHz; Rise Time ≤7ns; DC Accuracy ±2%; Max Input: 600 V CATIII, 1000 V CATII; Max Differential Test Voltage (DC + Peak AC): 50 X: ±130 V, 500 X:±1300 V. Input impedance…
Article no.
DPB1300
- Bandwidth
- 50 MHz
- Voltage Max
- 1300 V
- Interface
- Universal
CHF 418.76
incl. 8.1% VAT · CHF 387.38 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 50 MHz bandwidth
- 1300 V voltage max
- Universal interface

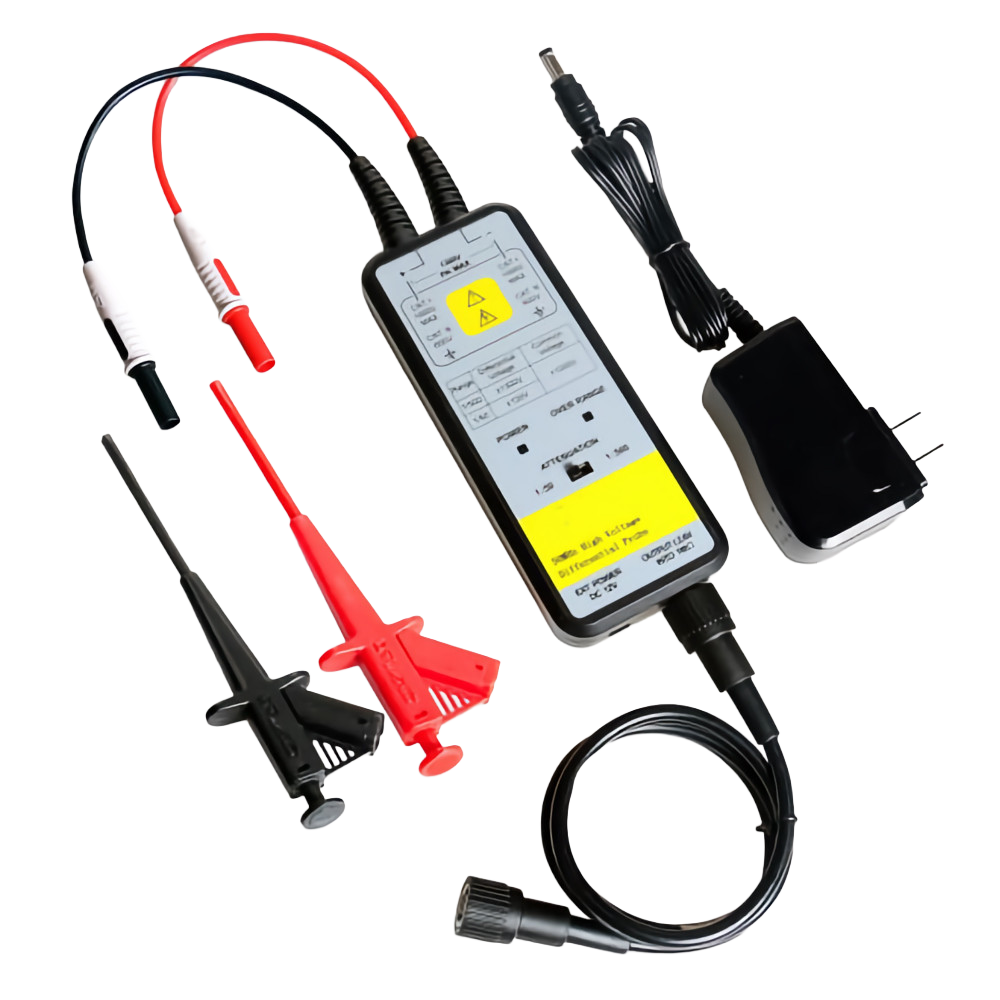

The Siglent DPB1300 features a bandwidth of 50 MHz and a rise time of less than or equal to 7 nanoseconds, ensuring precise signal measurement. It offers a DC accuracy of ±2%, supporting reliable data acquisition. The device can handle a maximum input voltage of 600 V CATIII and 1000 V CATII, with a maximum differential test voltage of ±130 V at 50X attenuation and ±1300 V at 500X attenuation. Its input impedance and capacitance are specified as 5 MΩ and less than 4 pF for single-ended inputs, and 10 MΩ and less than 2 pF for two inputs, respectively. The DPB1300 operates on a DC 12 V power supply with a current of 1.2 A. This model is designed for universal interface compatibility, making it adaptable to various testing environments. The maximum voltage rating is 1300 V, accommodating a wide range of electrical testing applications.
Additional information
Bandwidth: 50MHz; Rise Time ≤7ns; DC Accuracy ±2%; Max Input: 600 V CATIII, 1000 V CATII; Max Differential Test Voltage (DC + Peak AC): 50 X: ±130 V, 500 X:±1300 V. Input impedance/capacitance: 5 MΩ/<4 pF(Single-ended), 10 MΩ/< 2 pF(Two inputs); DC 12 V/1.2 A Power
Technical data
Specifications
3- Bandwidth
- 50 MHz
- Voltage Max
- 1300 V
- Interface
- Universal
