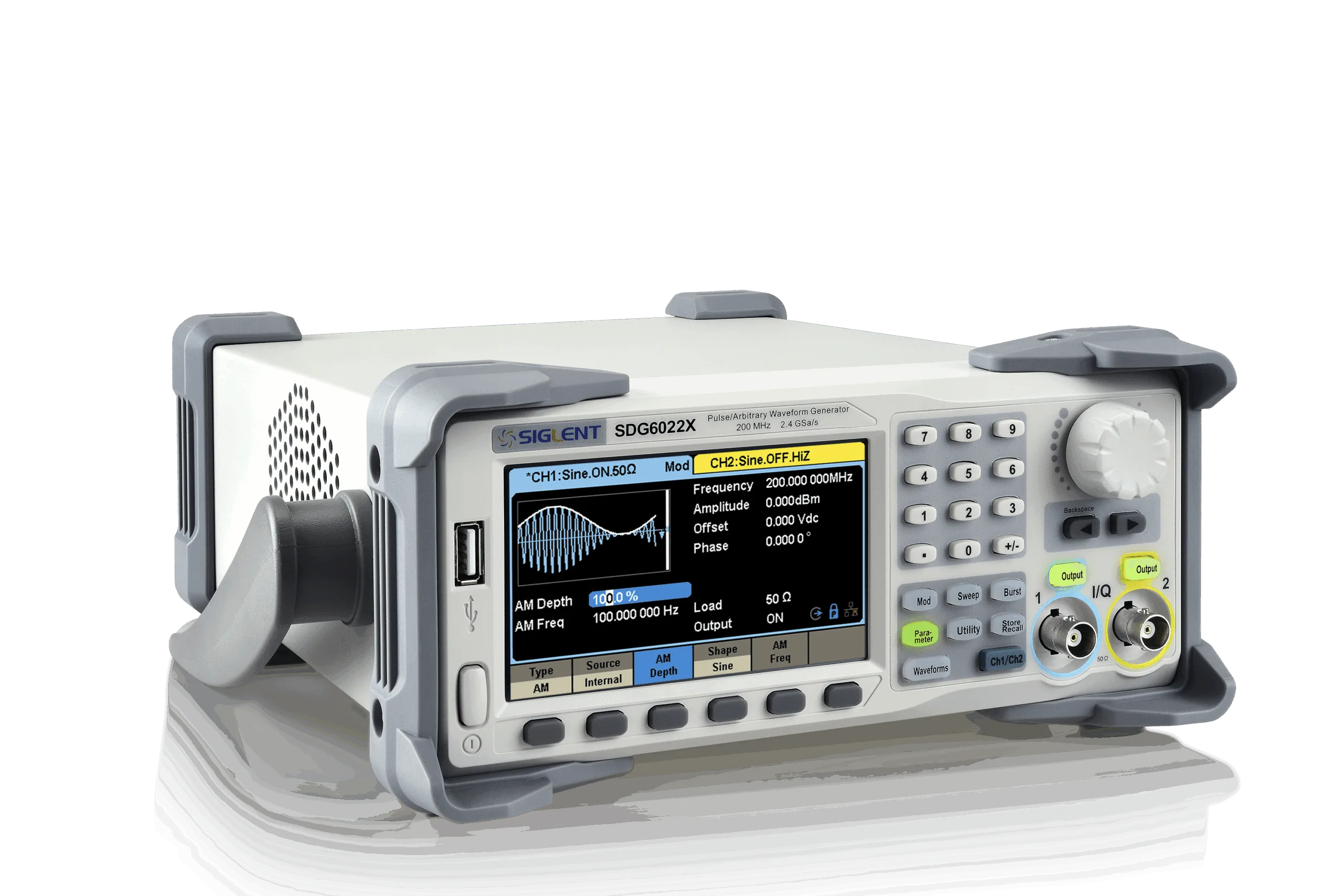

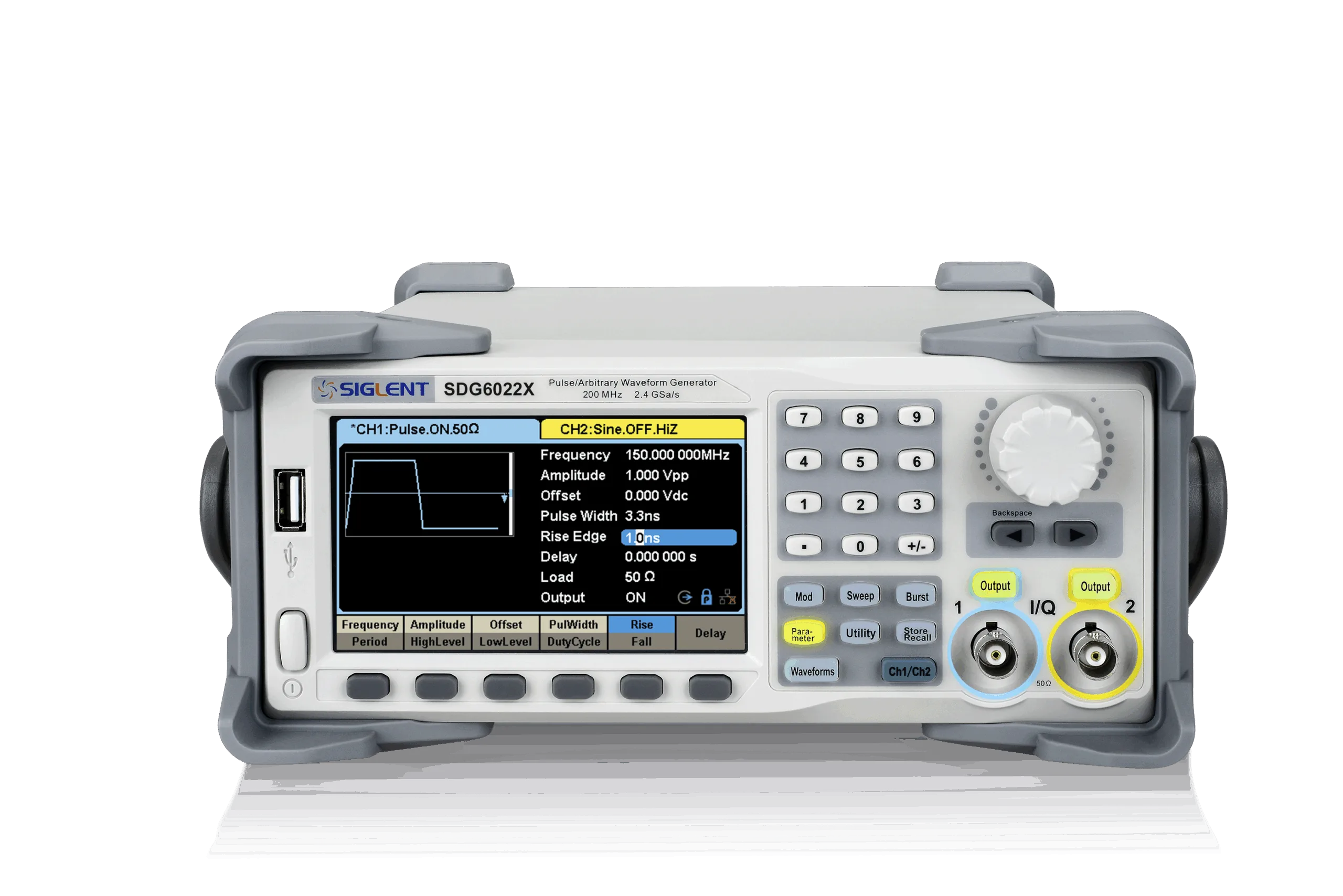

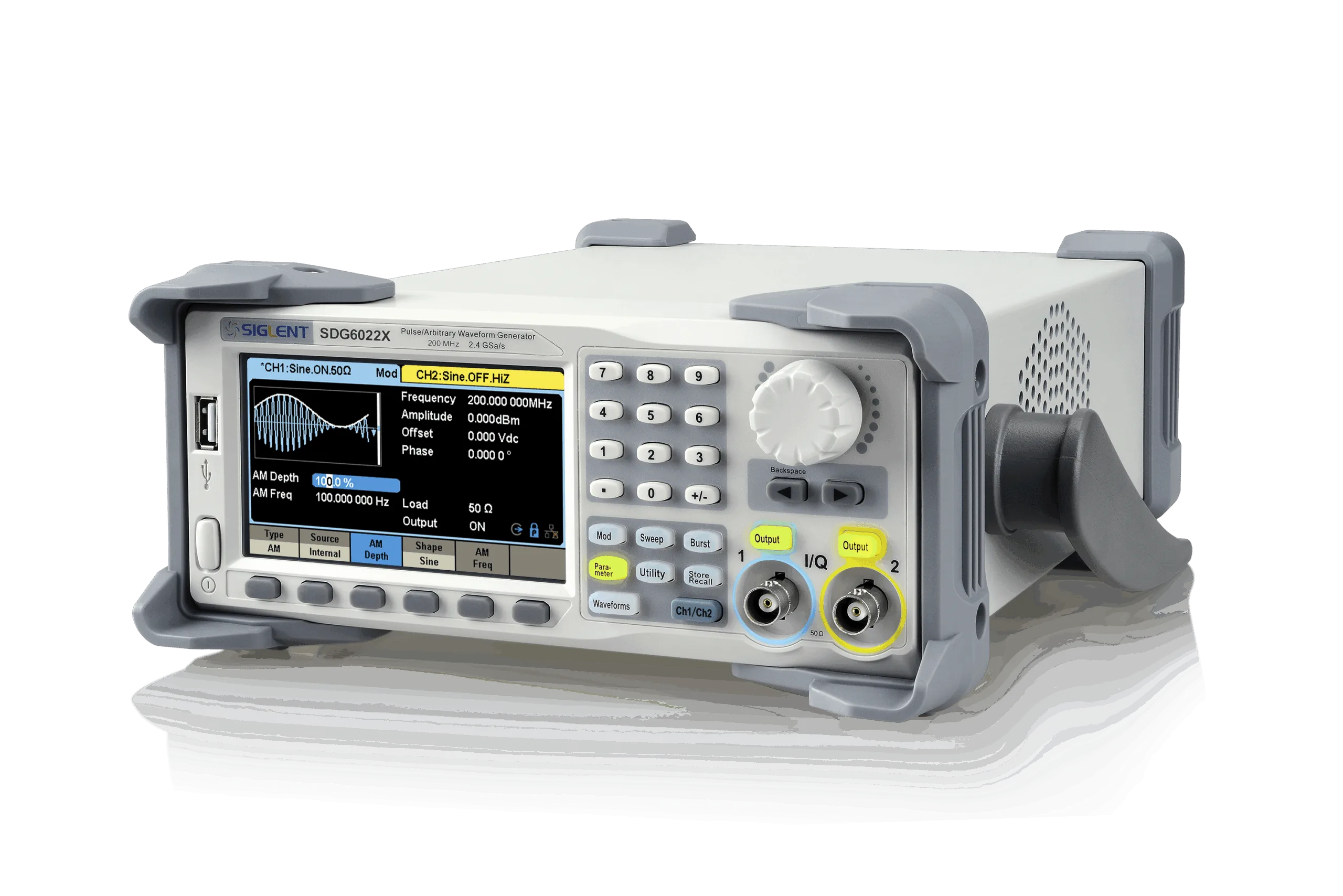

SDG6022X
200 MHz; 2 canali; 2,4 GSa/s; 16 bit; lunghezza della forma d'onda Arb: 2~20 Mpts; uscita funzione/forma d'onda arbitraria; tecnologia EasyPulse e TrueArb;
Article no.
SDG6022X
- Canali
- 2
- Resoluzione verticale
- 16 bit
- Frequenza
- 200 MHz
- Amplitudine
- 10 V
CHF 1'373.81
incl. 8.1% VAT · CHF 1'270.87 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 canali
- 16 bit di risoluzione verticale
- Frequenza di 200 MHz
- Amplitudine di 10 V
- Spazzare
The SDG6022X from Siglent features a maximum frequency of 200 MHz and offers two channels for signal output. It supports a sampling rate of 2.4 GSa/s and provides a vertical resolution of 16 bits. The device includes function and arbitrary waveform output capabilities, with an Arb-Waveform length ranging from 2 to 20 million points. It incorporates EasyPulse and TrueArb technology to enhance waveform generation. The memory depth is 20 million points. Additional features include sweep and burst modes, a minimum transition time of 2 nanoseconds, and a minimum pulse width of 3.4 nanoseconds. The amplitude can reach up to 10 volts.

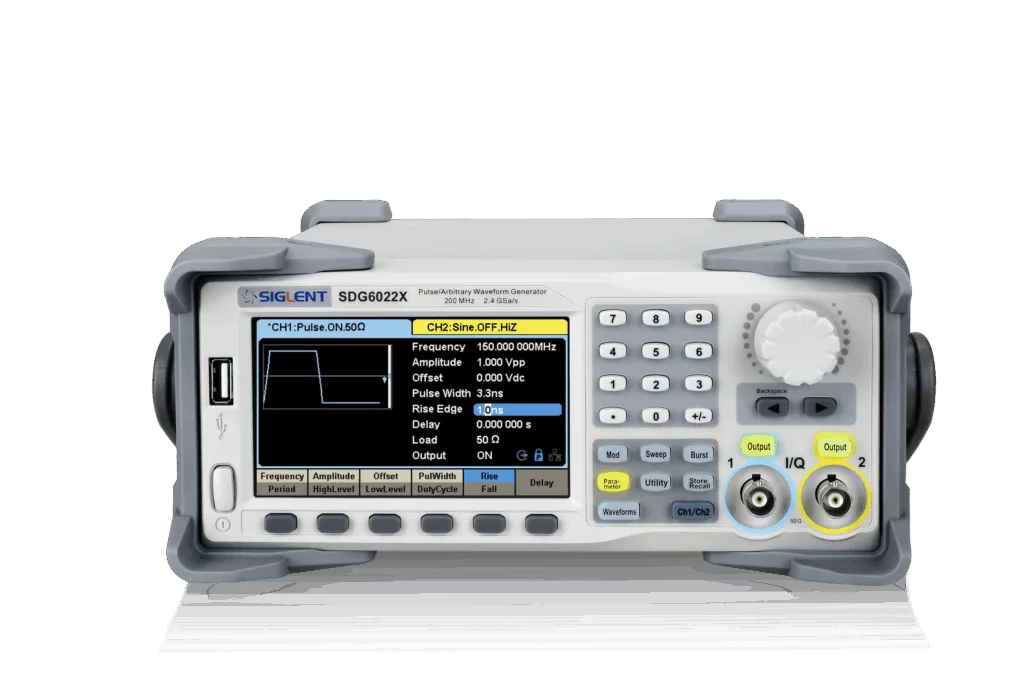

Video
SDG6022X
Technical data
Specifications
10- Canali
- 2
- Resoluzione verticale
- 16 bit
- Frequenza
- 200 MHz
- Amplitudine
- 10 V
- Spazzare
- Sì
- Scoppio
- Sì
- Frequenza di campionamento
- 2400 MS/s
- Memoria
- 20 MPts
- Tempo di transizione min
- 2 ns
- Larghezza di impulso min
- 3,4 ns
