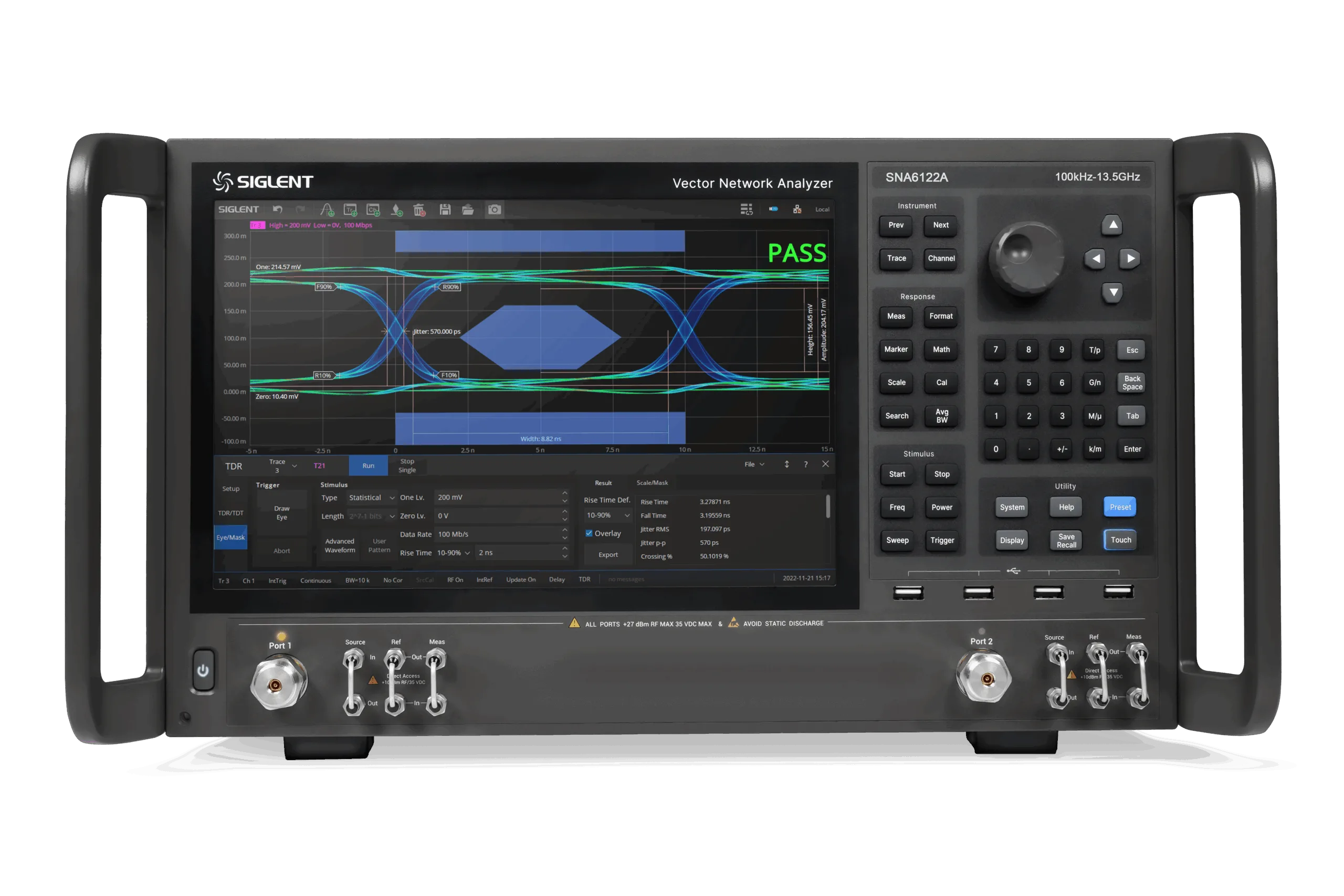

SNA6122A
100k~13.5GHz, 2 ports VNA with direct receiver access; stanadard setting range of output level: -55 ~ +10 dBm; dynamic range 135 dB; 12.1'' touch screen
Article no.
SNA6122A
- Frequenza Max
- 13500 MHz
- Frequenza min
- 100000 Hz
- Gamma dinamica
- 135 dB
- Porti
- 2
CHF 40'862.85
incl. 8.1% VAT · CHF 37'800.97 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- Frequenza massima 13500 MHz
- Frequenza di 100000 Hz min
- Gamma dinamica di 135 dB
- 2 porte

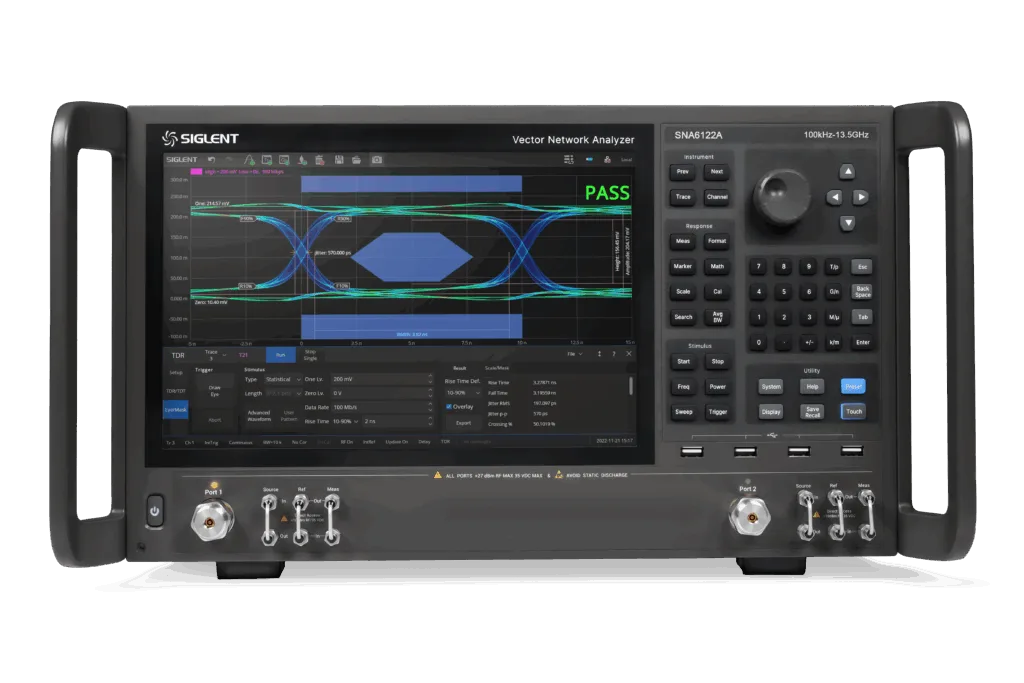

The SNA6122A by Siglent is a vector network analyzer featuring a frequency range from 100 kHz to 13.5 GHz and equipped with two ports. It offers direct receiver access, allowing for detailed signal analysis. The device has a standard output level setting range from -55 to +10 dBm, providing flexibility in signal output control. With a dynamic range of 135 dB, it supports high-precision measurements across a wide spectrum. The analyzer includes a 12.1-inch touch screen, enhancing user interaction and ease of operation. This model is designed to handle complex testing scenarios with its broad frequency capabilities and output level adjustments. Its specifications make it suitable for various applications requiring accurate network analysis within the specified frequency and power ranges.
Video
SNA6122A
Technical data
Specifications
5- Frequenza Max
- 13500 MHz
- Frequenza min
- 100000 Hz
- Gamma dinamica
- 135 dB
- Porti
- 2
- Palmare
- No
