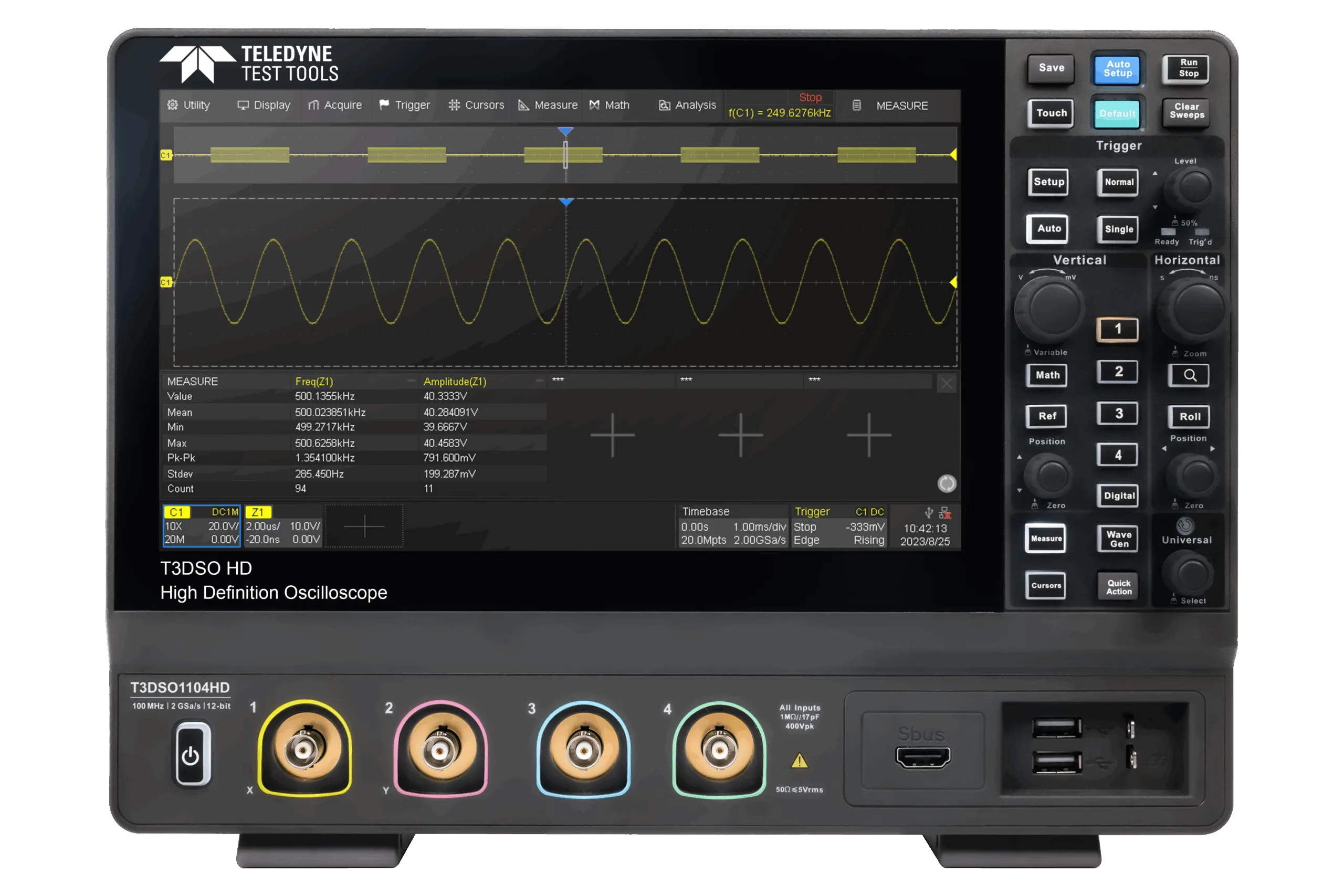

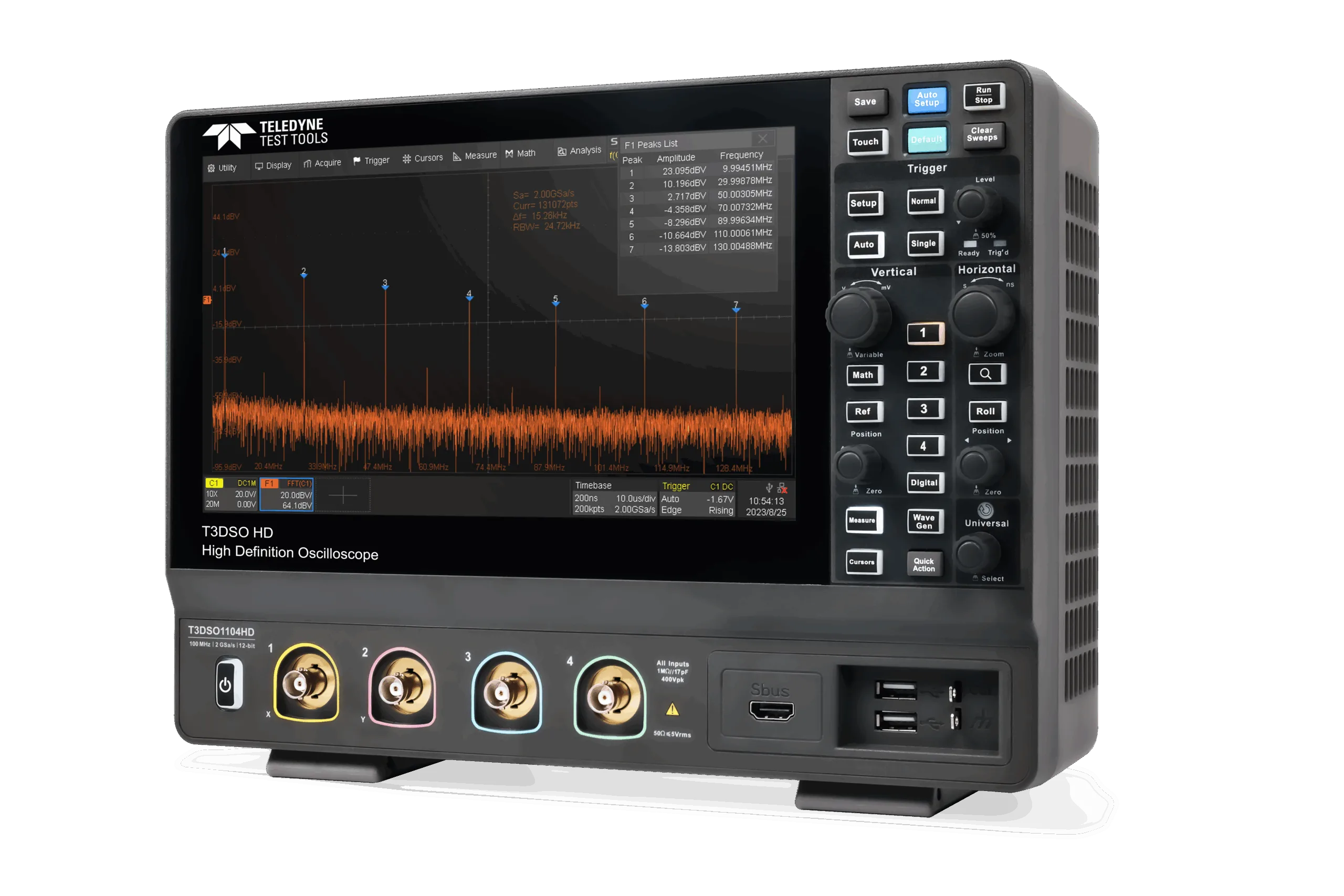

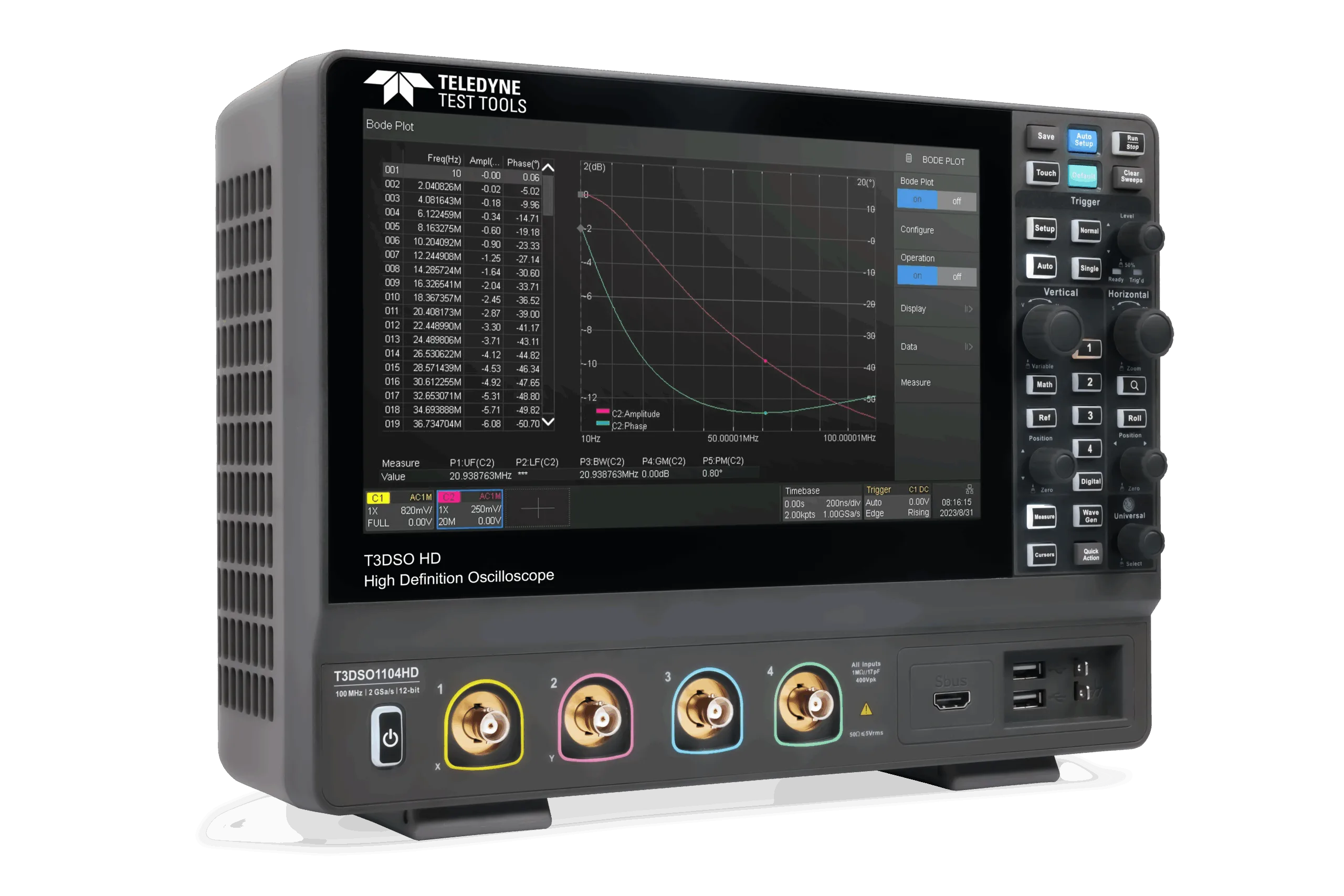

T3DSO1104HD
100 MHz, 2 GS/s per Ch, 2 GS/s interleaved, 4 CH, 200 Mpts/Ch HD DSO with 10.1" Color Display
Article no.
T3DSO1104HD
- Canali
- 4
- Larghezza di banda
- 100 MHz
- Frequenza di campionamento/Canali
- 500 MS/s
- Depressione della memoria
- 100 Mpts
CHF 2'275.51
incl. 8.1% VAT · CHF 2'105.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 canali
- Larghezza di banda di 100 MHz
- 500 MS/s Velocità di campionamento
- 100 Mpts di profondità della memoria
- 12 bit di risoluzione verticale
The Teledyne Lecroy T3DSO1104HD features a 100 MHz bandwidth and offers four channels for signal analysis. Each channel supports a sampling rate of 500 MS/s, with an interleaved sampling rate reaching up to 2 GS/s. The device is equipped with a memory depth of 100 Mpts per channel, allowing for detailed waveform capture and analysis. It provides a vertical resolution of 12 bits, enhancing the precision of signal measurements. The oscilloscope includes a 10.1-inch color display with touch screen functionality, facilitating user interaction and data visualization. With a total memory depth of 200 Mpts across all channels, it supports extended data acquisition sessions. This high-definition digital storage oscilloscope is designed to handle complex signal testing and measurement tasks with its advanced sampling capabilities and multi-channel support.

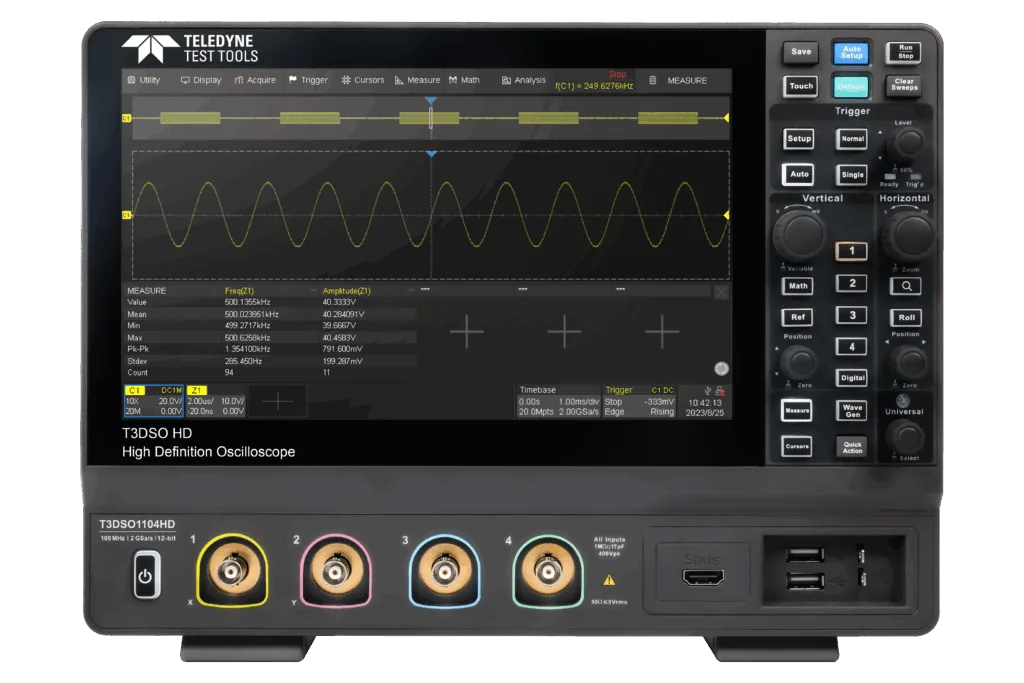

Video
T3DSO1104HD
Technical data
Specifications
8- Canali
- 4
- Larghezza di banda
- 100 MHz
- Frequenza di campionamento/Canali
- 500 MS/s
- Depressione della memoria
- 100 Mpts
- Resoluzione verticale
- 12 bit
- Canali digitali
- Opt
- Schermo tattile
- Sì
- Imax AC
