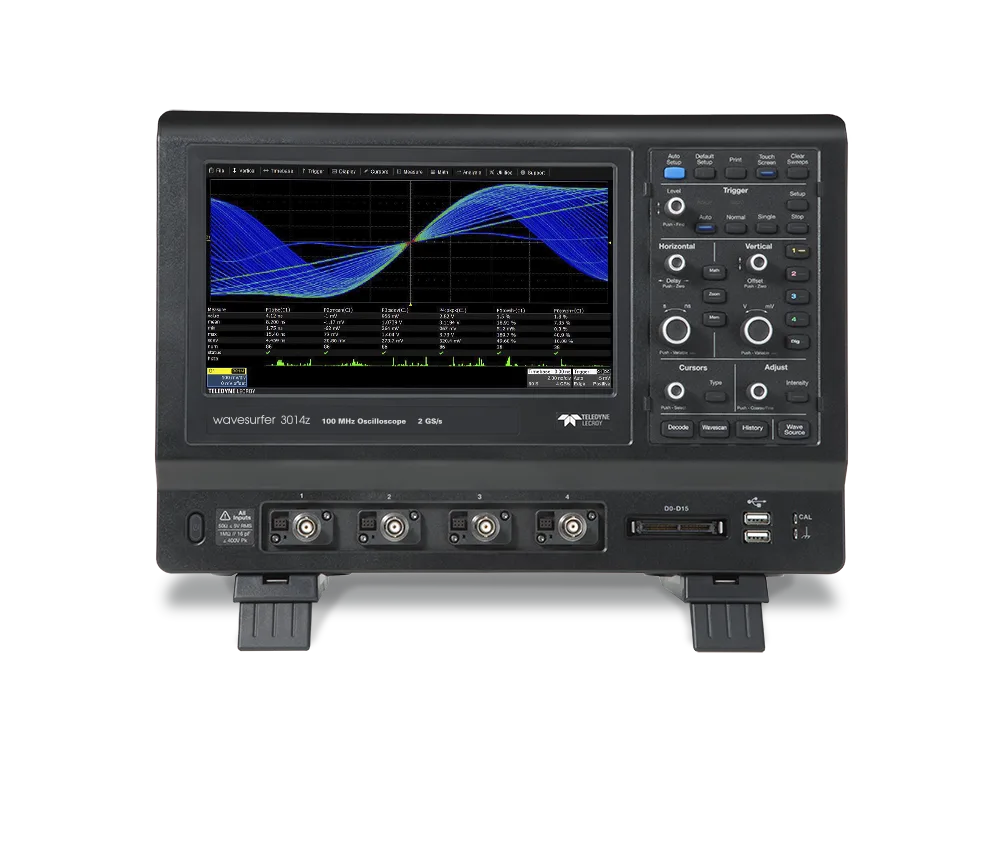

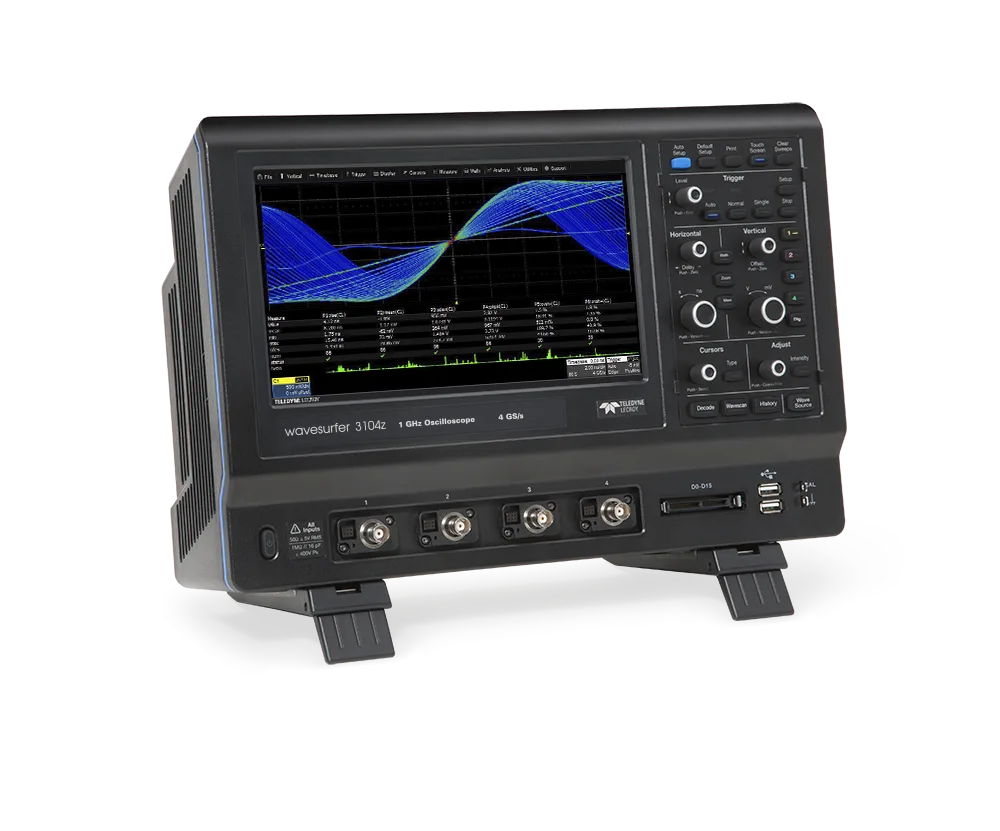

WAVESURFER 3104Z#
1 GHz, 4 GS/s, 4 Ch, 10 Mpts/Ch DSO with 10.1" Wide, Capacitive Touch Screen, Color Display
Article no.
WAVESURFER 3104Z#
- Canali
- 4
- Larghezza di banda
- 1000 MHz
- Frequenza di campionamento/Canali
- 2000 MS/s
- Depressione della memoria
- 10 punti
CHF 16'096.09
incl. 8.1% VAT · CHF 14'890.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 canali
- Larghezza di banda 1000 MHz
- 2000 MS/s Velocità di campionamento
- 10 Mpts di profondità della memoria
- 8 bit di risoluzione verticale
The WAVESURFER 3104Z# by Teledyne Lecroy is a digital storage oscilloscope featuring a 1 GHz bandwidth and a sampling rate of 4 GS/s across four channels. Each channel is equipped with a memory depth of 10 million points, allowing for detailed signal capture and analysis. The device includes a 10.1-inch wide capacitive touch screen with a color display, enhancing user interaction and visualization of waveforms. It offers a vertical resolution of 8 bits, providing precise measurement capabilities. The oscilloscope supports a sampling rate of 2000 MS/s per channel, ensuring high-speed data acquisition. The combination of these specifications makes it suitable for various applications requiring high-frequency signal analysis and multi-channel data capture.
Video
WAVESURFER 3104Z#
Technical data
Specifications
8- Canali
- 4
- Larghezza di banda
- 1000 MHz
- Frequenza di campionamento/Canali
- 2000 MS/s
- Depressione della memoria
- 10 punti
- Resoluzione verticale
- 8 bit
- Canali digitali
- Opt
- Schermo tattile
- Sì
- Imax AC
