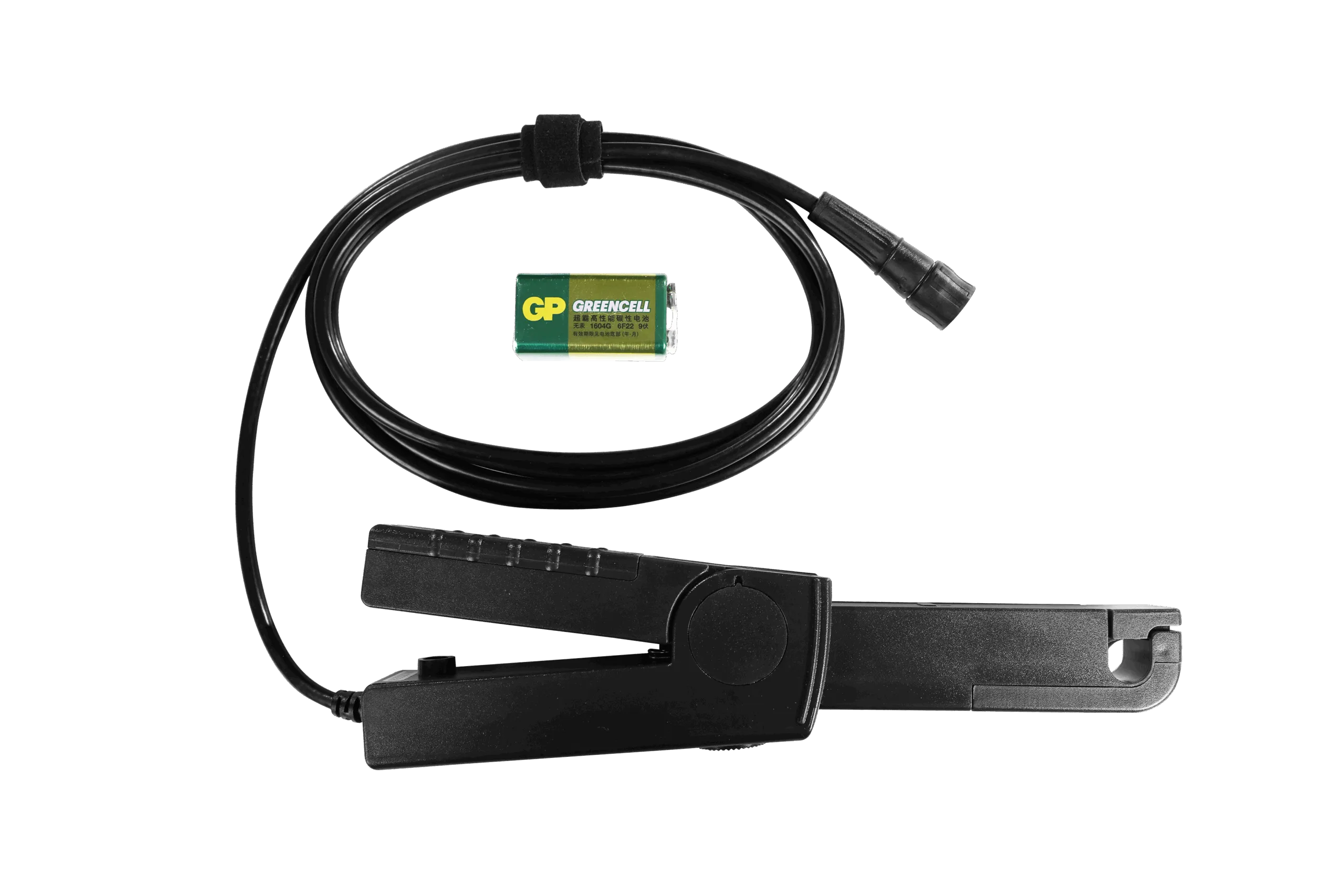

CP4070
Bandwidth: 300kHz; Maximum continuous current 70Arms;Peak current 200A;Switching ratio：50mV/A、5mV/A;
Article no.
CP4070
- Bandwidth
- 0.15 MHz
- Current Max
- 70 A
- Interface
- Universal
CHF 631.42
incl. 8.1% VAT · CHF 584.11 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 0.15 MHz bandwidth
- 70 A current max
- Universal interface
The Siglent CP4070 features a bandwidth of 300kHz, allowing it to handle signals within this frequency range effectively. It supports a maximum continuous current of 70Arms, ensuring reliable operation under sustained load conditions. The device can handle peak currents up to 200A, accommodating short bursts of higher current without damage. It offers switching ratios of 50mV/A and 5mV/A, providing flexibility in measurement sensitivity. The maximum current rating is 70A, and it includes a universal interface for connectivity. Additionally, the bandwidth is specified as 0.15MHz, indicating its capability to process signals within this narrower frequency band as well. These specifications make the CP4070 suitable for applications requiring precise current measurement and control within the stated electrical parameters.
Technical data
Specifications
3- Bandwidth
- 0.15 MHz
- Current Max
- 70 A
- Interface
- Universal
