IT7921EP-350-105
350V L-N, 606V L-L, 105Arms, 21kVA, 1φ or 3φ AC Performance Regenerative Grid Simulator, 3U, 16-500Hz
Article no.
IT7921EP-350-105
- Power
- 21000 W
- Voltage
- 350 V
- Current
- 105 A
- Output Number
- 1
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 21000 W power
- 350 V voltage
- 105 A current
- 1 output number
- Remote Control

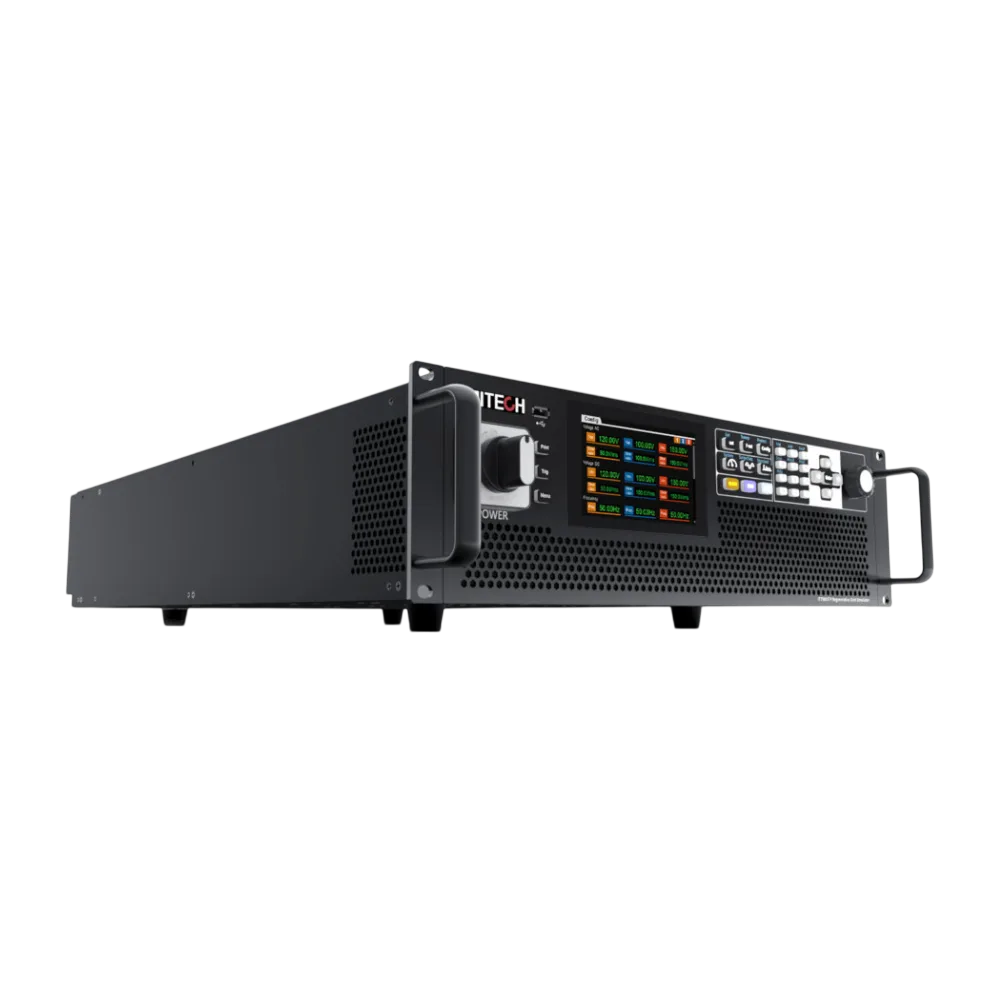

The IT7921EP-350-105 by ITECH is a regenerative grid simulator designed for single-phase or three-phase AC performance testing. It operates at a voltage of 350V line-to-neutral and 606V line-to-line, with a current capacity of 105Arms. The device delivers a power output of 21kVA and supports a frequency range from 16Hz to 500Hz, with a maximum frequency of 150Hz. This simulator is housed in a 3U chassis and features remote control capability for convenient operation. It has a single output channel, making it suitable for various testing scenarios requiring precise AC power simulation. The combination of its voltage, current, and frequency specifications allows it to simulate complex grid conditions effectively.
Technical data
Specifications
6- Power
- 21000 W
- Voltage
- 350 V
- Current
- 105 A
- Output Number
- 1
- Remote Control
- Yes
- Max Frequency
- 150 Hz
