PP019-1

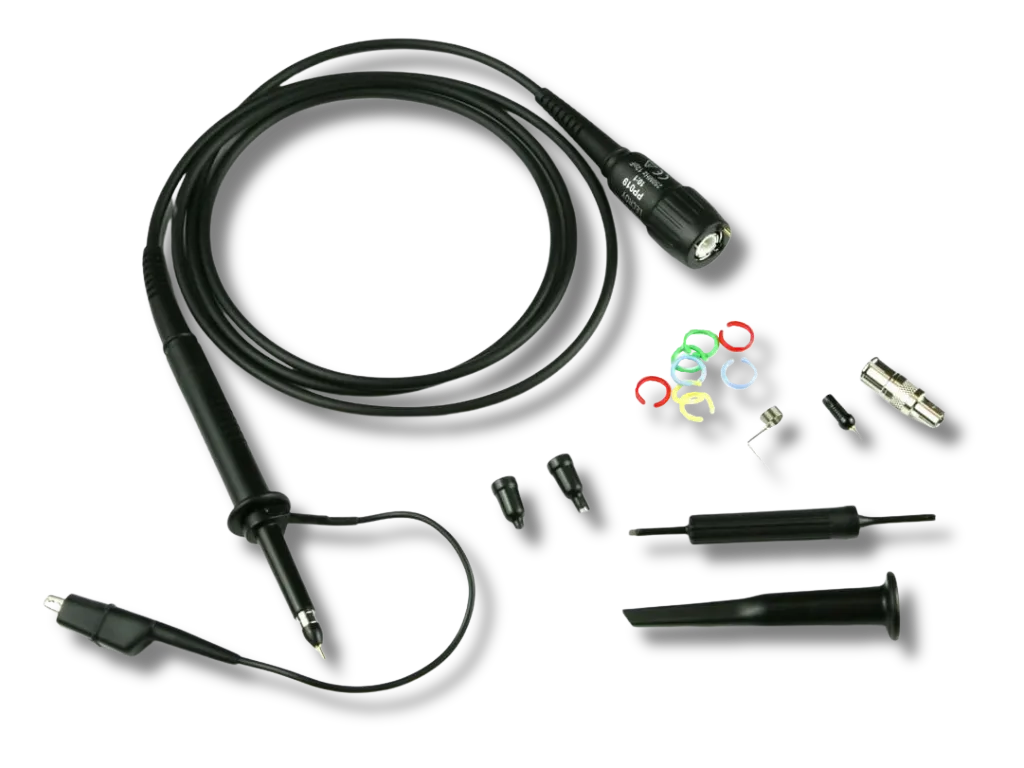

250 MHz Passive Probe for WaveSurfer 3000, 10:1, 10 Mega-Ω
Article no.
PP019-1
- Imax AC
CHF 237.82
incl. 8.1% VAT · CHF 220.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- imax ac
The Teledyne Lecroy PP019-1 is a 250 MHz passive probe designed for use with the WaveSurfer 3000 series. It features a 10:1 attenuation ratio, which helps in measuring higher voltage signals while maintaining signal integrity. The probe has an input resistance of 10 Mega-ohms, ensuring minimal loading on the circuit under test. This passive probe is suitable for applications requiring bandwidth up to 250 MHz, making it compatible with a range of signal frequencies encountered in various electronic testing scenarios. Its design supports accurate signal acquisition without the need for additional power, as it operates passively. The probe’s specifications align with the requirements of the WaveSurfer 3000, providing reliable performance for waveform analysis. It is a component that integrates seamlessly with Teledyne Lecroy’s oscilloscopes, facilitating detailed signal examination and troubleshooting.
Technical data
Specifications
1- Imax AC
