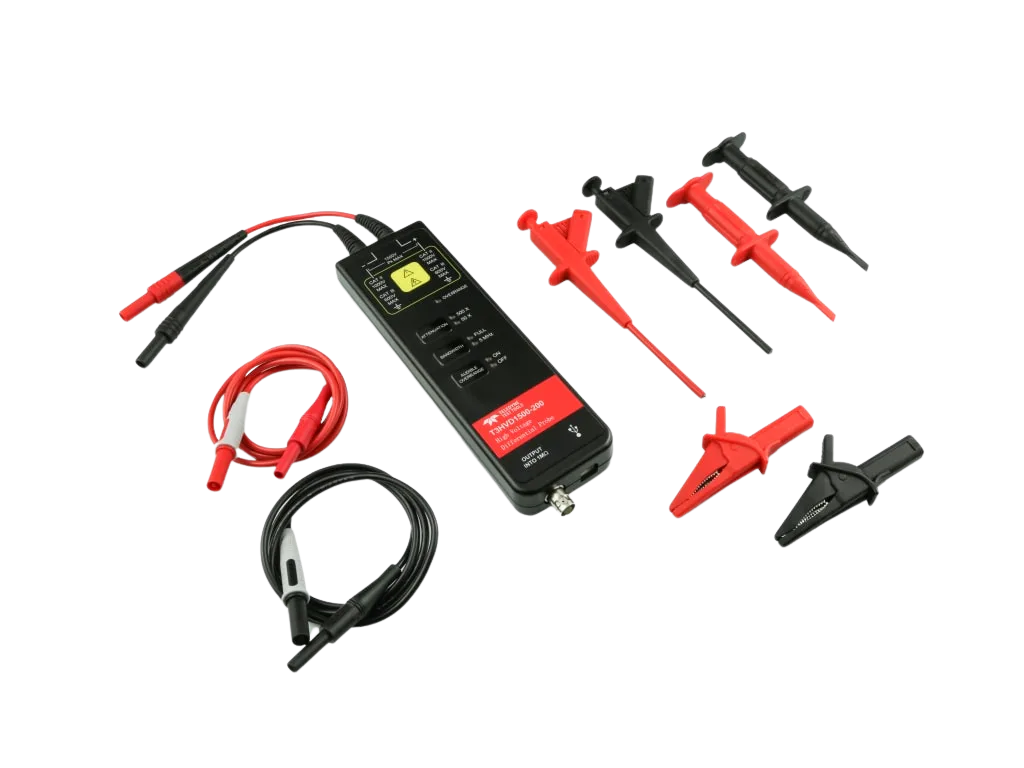

T3HVD1500-200
1.5kV, 200 MHz, 2 pF,10 Mega-Ω, Rise Time < 1.75 ns, High Voltage Differential Probe
Article no.
T3HVD1500-200
- Bandwidth
- 200 MHz
- Imax AC
- Voltage Max
- 1500 V
- Interface
- Universal
CHF 3'151.12
incl. 8.1% VAT · CHF 2'915.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 200 MHz bandwidth
- imax ac
- 1500 V voltage max
- Universal interface
The Teledyne Lecroy T3HVD1500-200 is a high voltage differential probe designed to handle voltages up to 1.5 kV. It features a bandwidth of 200 MHz, making it suitable for applications requiring high-frequency signal measurements. The probe has a low input capacitance of 2 pF and an input resistance of 10 Mega-Ω, which helps maintain signal integrity during testing. It offers a rise time of less than 1.75 nanoseconds, allowing for accurate capture of fast transient signals. The interface is universal, ensuring compatibility with a wide range of equipment. This probe is engineered to provide precise differential voltage measurements in environments where high voltage and high frequency are present.
Technical data
Specifications
4- Bandwidth
- 200 MHz
- Imax AC
- Voltage Max
- 1500 V
- Interface
- Universal
