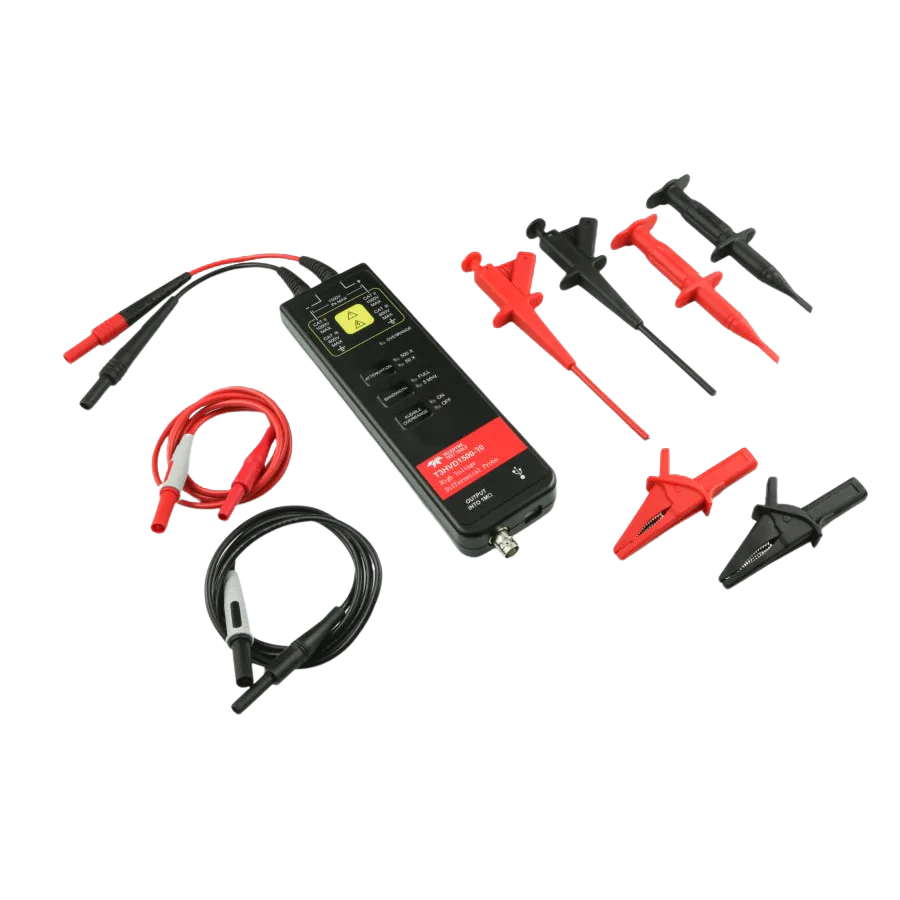

T3HVD1500-70
1.5kV, 70 MHz, 2 pF,10 Mega-Ω, Rise Time < 5 ns, High Voltage Differential Probe
Article no.
T3HVD1500-70
- Bandwidth
- 70 MHz
- Imax AC
- Voltage Max
- 1500 V
- Interface
- Universal
CHF 2'118.76
incl. 8.1% VAT · CHF 1'960.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 70 MHz bandwidth
- imax ac
- 1500 V voltage max
- Universal interface
The T3HVD1500-70 from Teledyne Lecroy is a high voltage differential probe designed to handle voltages up to 1.5kV. It operates with a bandwidth of 70 MHz, making it suitable for applications requiring moderate frequency response. The probe features a low input capacitance of 2 pF and a high input resistance of 10 Mega-Ω, which helps minimize the loading effect on the circuit under test. It offers a fast rise time of less than 5 nanoseconds, allowing it to accurately capture rapid signal transitions. The interface is universal, ensuring compatibility with a wide range of measurement instruments. This probe is engineered to provide precise differential measurements in high voltage environments while maintaining signal integrity through its electrical characteristics.
Technical data
Specifications
4- Bandwidth
- 70 MHz
- Imax AC
- Voltage Max
- 1500 V
- Interface
- Universal
