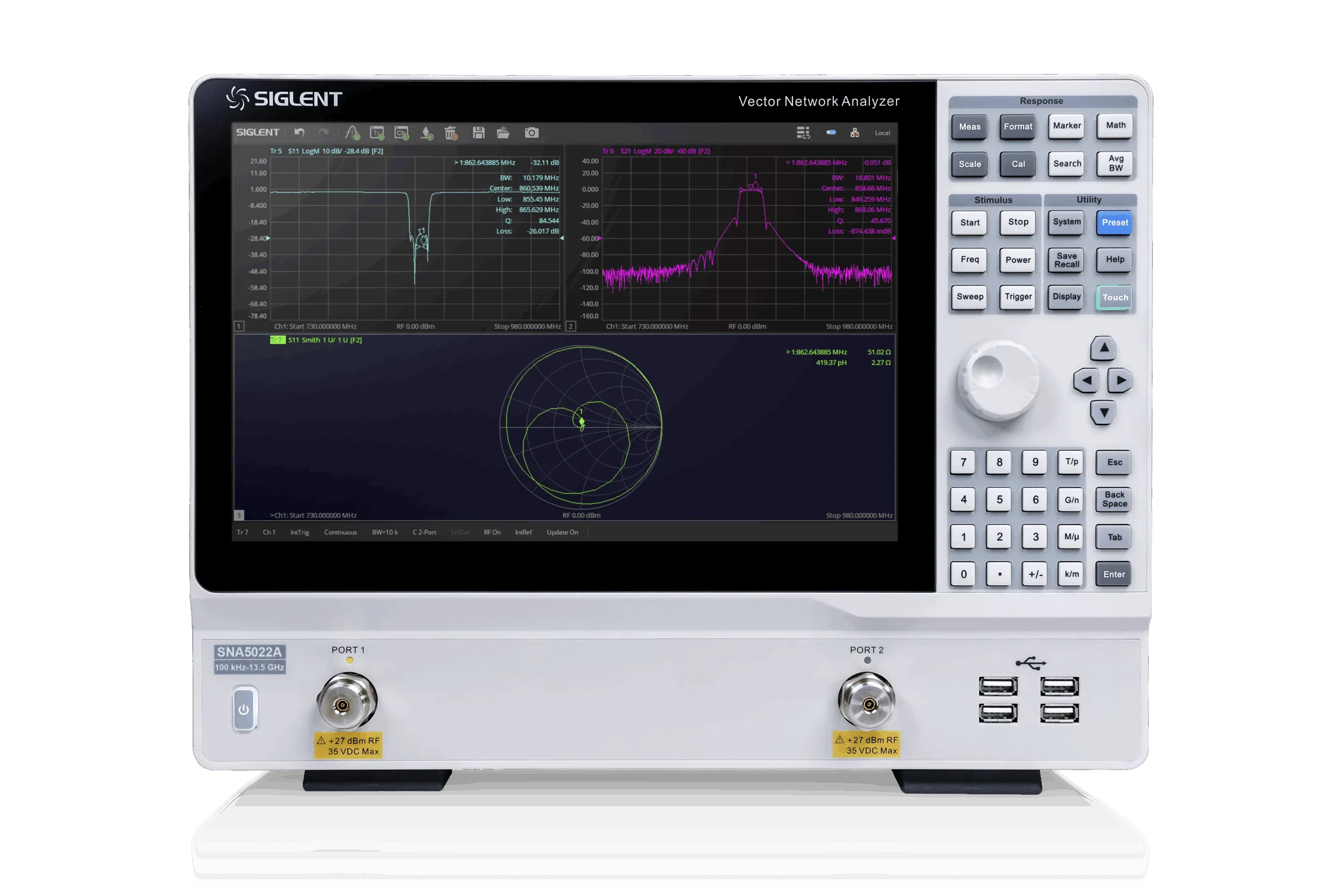

SNA5022A
Frequency Range: 100 kHz~13.5 GHz, 2 ports，Frequencey Resolution 1 Hz, IFBW 10 Hz~3 MHz, Dynamic Range 125 dB, Output Level Range -55 dBm ~ +10 dBm, 12.1'' Touch Screen
Article no.
SNA5022A
- Frekencja Max
- 13500 MHz
- Frekwencja min
- 100000 Hz
- Dynamiczny zakres
- 125 dB
- Porty
- 2
CHF 26'311.33
incl. 8.1% VAT · CHF 24'339.81 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 13500 MHz Frequency Max
- 100000 Hz Frequency min
- Zakres dynamiki 125 dB
- 2 porty
The Siglent SNA5022A operates within a frequency range of 100 kHz to 13.5 GHz and features two ports for signal input and output. It offers a frequency resolution of 1 Hz, allowing for precise frequency measurements. The instrument's intermediate frequency bandwidth (IFBW) ranges from 10 Hz to 3 MHz, providing flexibility in signal analysis. It has a dynamic range of 125 dB, which supports the detection of signals with a wide range of amplitudes. The output level range spans from -55 dBm to +10 dBm, accommodating various testing requirements. The device is equipped with a 12.1-inch touch screen, enhancing user interaction and control. This combination of specifications makes the SNA5022A suitable for detailed frequency and amplitude analysis across a broad spectrum.

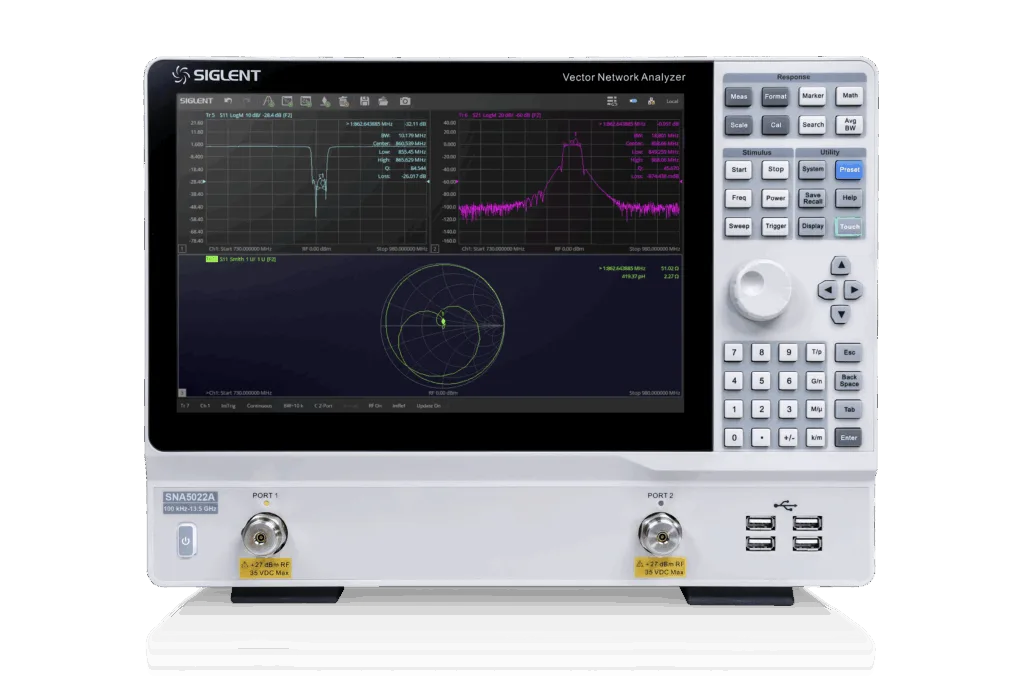

Video
SNA5022A
Technical data
Specifications
5- Frekencja Max
- 13500 MHz
- Frekwencja min
- 100000 Hz
- Dynamiczny zakres
- 125 dB
- Porty
- 2
- Ręczny
- Nie
