SNA6022A
100k~13.5GHz, 2 ports VNA
Article no.
SNA6022A
- Frekencja Max
- 13500 MHz
- Frekwencja min
- 100000 Hz
- Dynamiczny zakres
- 135 dB
- Porty
- 2
CHF 35'825.18
incl. 8.1% VAT · CHF 33'140.78 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 13500 MHz Frequency Max
- 100000 Hz Frequency min
- 135 dB Dynamic Range
- 2 porty

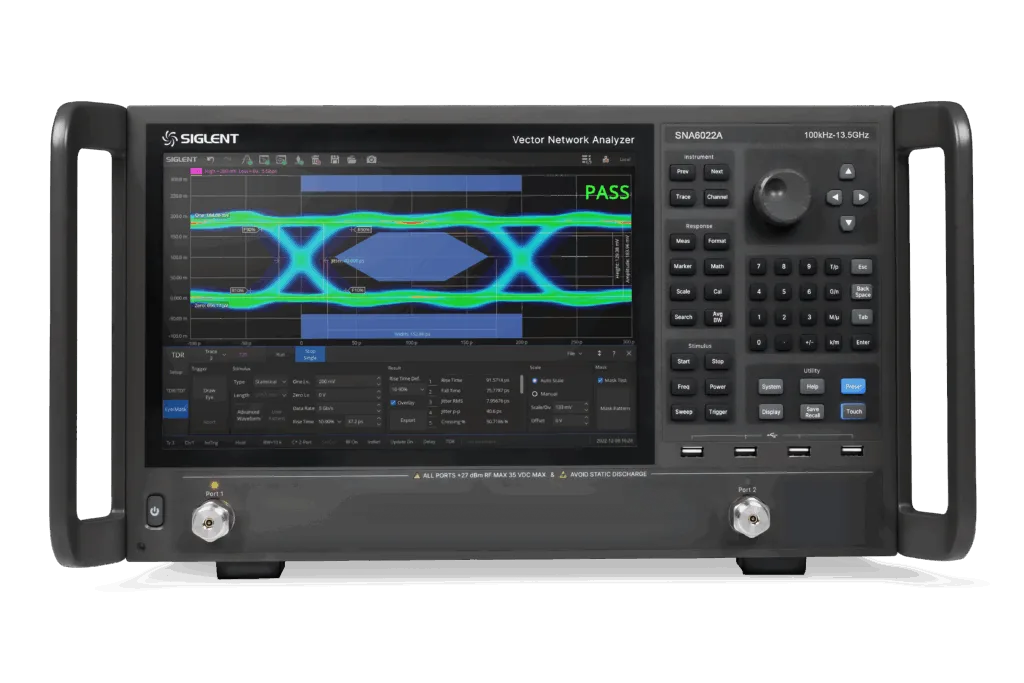

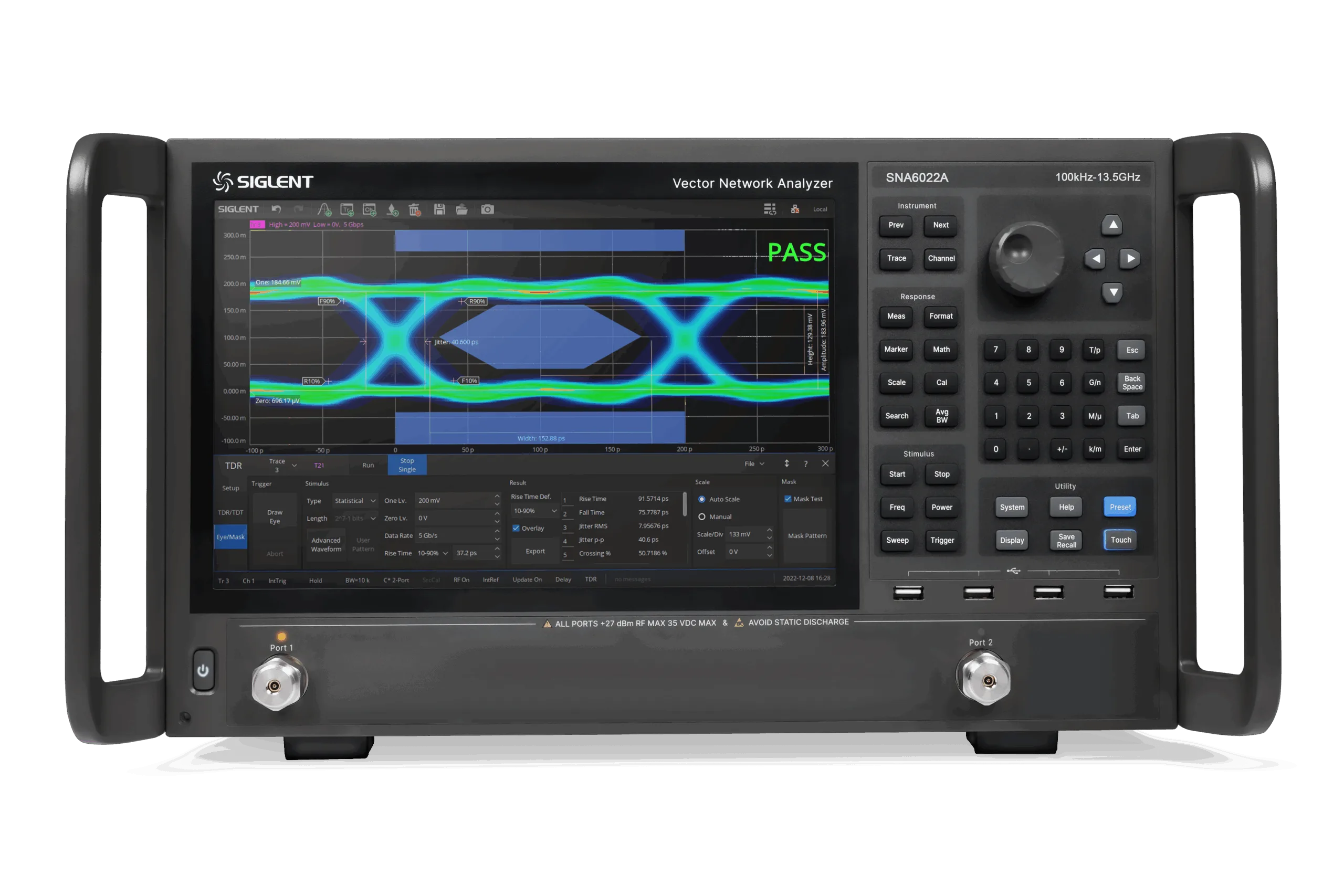

The Siglent SNA6022A is a vector network analyzer featuring a frequency range from 100 kHz to 13.5 GHz. It is equipped with two ports, allowing for versatile measurement capabilities. The device offers a dynamic range of 135 dB, supporting detailed signal analysis across its operational bandwidth. Designed for benchtop use, the SNA6022A provides precise network parameter measurements within its specified frequency limits. Its maximum frequency capability extends up to 13.5 GHz, while the minimum frequency starts at 100 kHz. The analyzer is not handheld, indicating it is intended for stationary laboratory or production environments. This model is suitable for applications requiring accurate vector network analysis over a broad frequency spectrum.
Video
SNA6022A
Technical data
Specifications
5- Frekencja Max
- 13500 MHz
- Frekwencja min
- 100000 Hz
- Dynamiczny zakres
- 135 dB
- Porty
- 2
- Ręczny
- Nie
