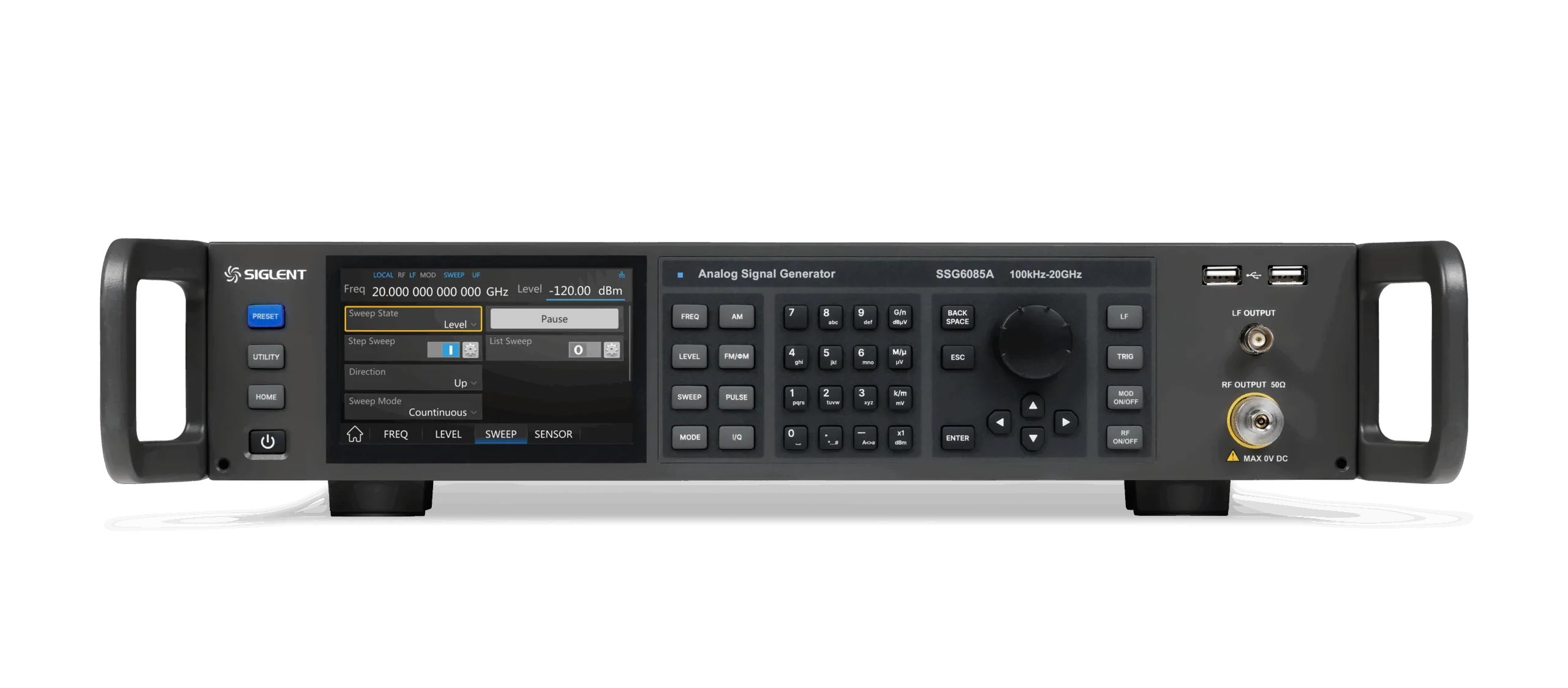

SSG6085A
100 k ~ 20 GHz; level setting range: -130 dBm ~ +24 dBm; Phase noise -135 dBc/Hz @1 GHz, 20 kHz offset; 5 inch TFT touch-screen, standard high accuracy clock source
Article no.
SSG6085A
- Kanały
- 1
- Częstotliwość
- 20000 MHz
- Amplituda
- 24 dBm
CHF 25'639.64
incl. 8.1% VAT · CHF 23'718.45 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 1 kanały
- Frekwencja 20000 MHz
- 24 dBm Amplitude
The SSG6085A by Siglent operates over a frequency range from 100 kHz to 20 GHz, providing a level setting range from -130 dBm to +24 dBm. It features a phase noise specification of -135 dBc/Hz at 1 GHz with a 20 kHz offset. The device includes a 5-inch TFT touch-screen for user interaction and comes equipped with a standard high accuracy clock source. Its maximum frequency capability is 20,000 MHz, and it supports an amplitude level up to 24 dBm. The combination of these specifications makes the SSG6085A suitable for applications requiring precise signal generation and measurement within its frequency and amplitude ranges.

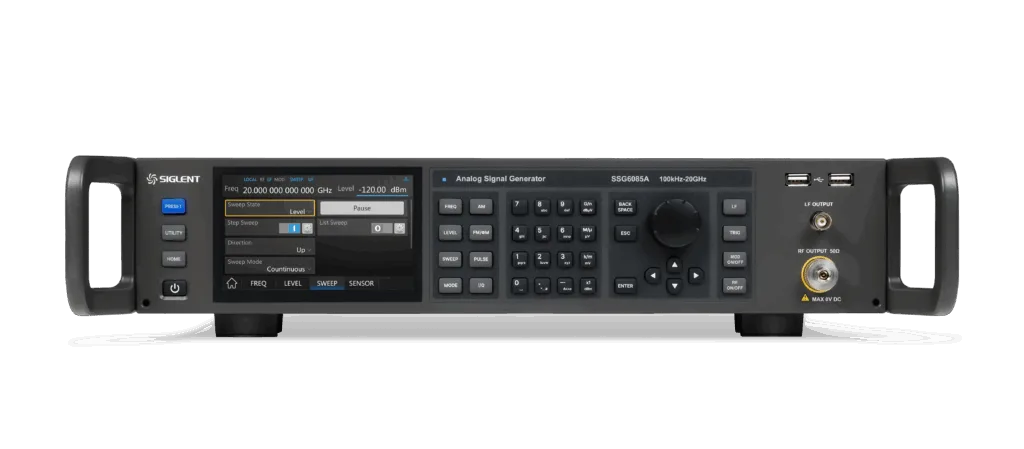

Video
SSG6085A
Technical data
Specifications
3- Kanały
- 1
- Częstotliwość
- 20000 MHz
- Amplituda
- 24 dBm
Presentation
Product presentation
PDFDocuments
