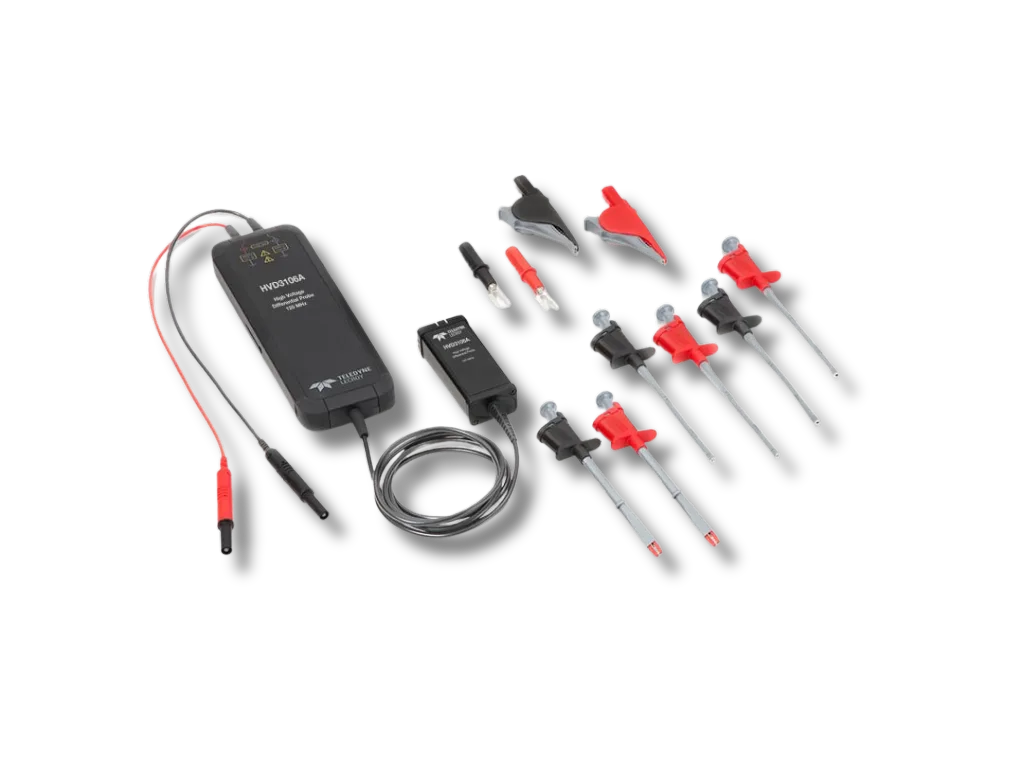

HVD3106A
1kV, 120 MHz High Voltage Differential Probe with Auto Zero Disconnect
Article no.
HVD3106A
- Bandwidth
- 120 MHz
- Imax AC
- Voltage Max
- 1000 V
- Interface
- LeCroy
CHF 3'464.61
incl. 8.1% VAT · CHF 3'205.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 120 MHz bandwidth
- imax ac
- 1000 V voltage max
- LeCroy interface
The Teledyne Lecroy HVD3106A is a high voltage differential probe designed to handle voltages up to 1kV. It features a bandwidth of 120 MHz, making it suitable for applications requiring high-frequency signal measurements. This probe includes an auto zero disconnect function, which helps maintain accuracy by automatically compensating for offset voltages. The interface used by this probe is LeCroy, ensuring compatibility with LeCroy oscilloscopes and measurement systems. The HVD3106A is engineered to provide reliable performance in high voltage environments, supporting precise differential measurements. Its design focuses on maintaining signal integrity at high voltages and frequencies, making it a specialized tool for electrical testing and diagnostics. The combination of its voltage rating and bandwidth allows it to be used in a variety of testing scenarios where both high voltage and high frequency are present.
Video
HVD3106A
Technical data
Specifications
4- Bandwidth
- 120 MHz
- Imax AC
- Voltage Max
- 1000 V
- Interface
- LeCroy
