ODP6050B
Optical isolated probe: 500 MHz, 50X, Max. Differential Test Voltage (DC + Peak AC) +/-25 V, Isolated Voltage +/-60 kV, DC 5 V adapter or 7.4 V battery Power supply，Standard 50X/10…
Article no.
ODP6050B
- Bandwidth
- 500 MHz
- Voltage Max
- 5000 V
- Interface
- Uniiversal
CHF 4'722.81
incl. 8.1% VAT · CHF 4'368.93 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 500 MHz bandwidth
- 5000 V voltage max
- Uniiversal interface

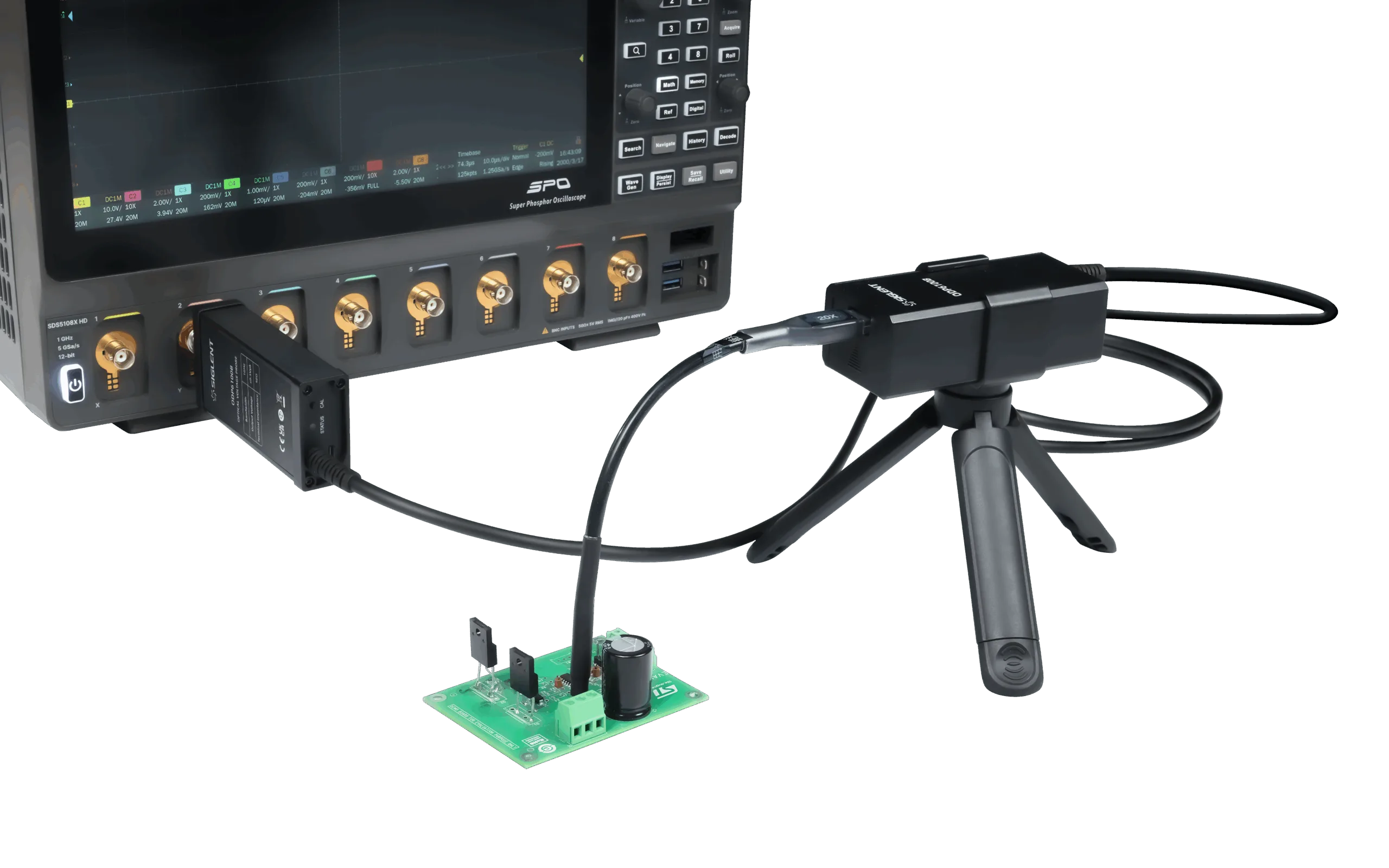

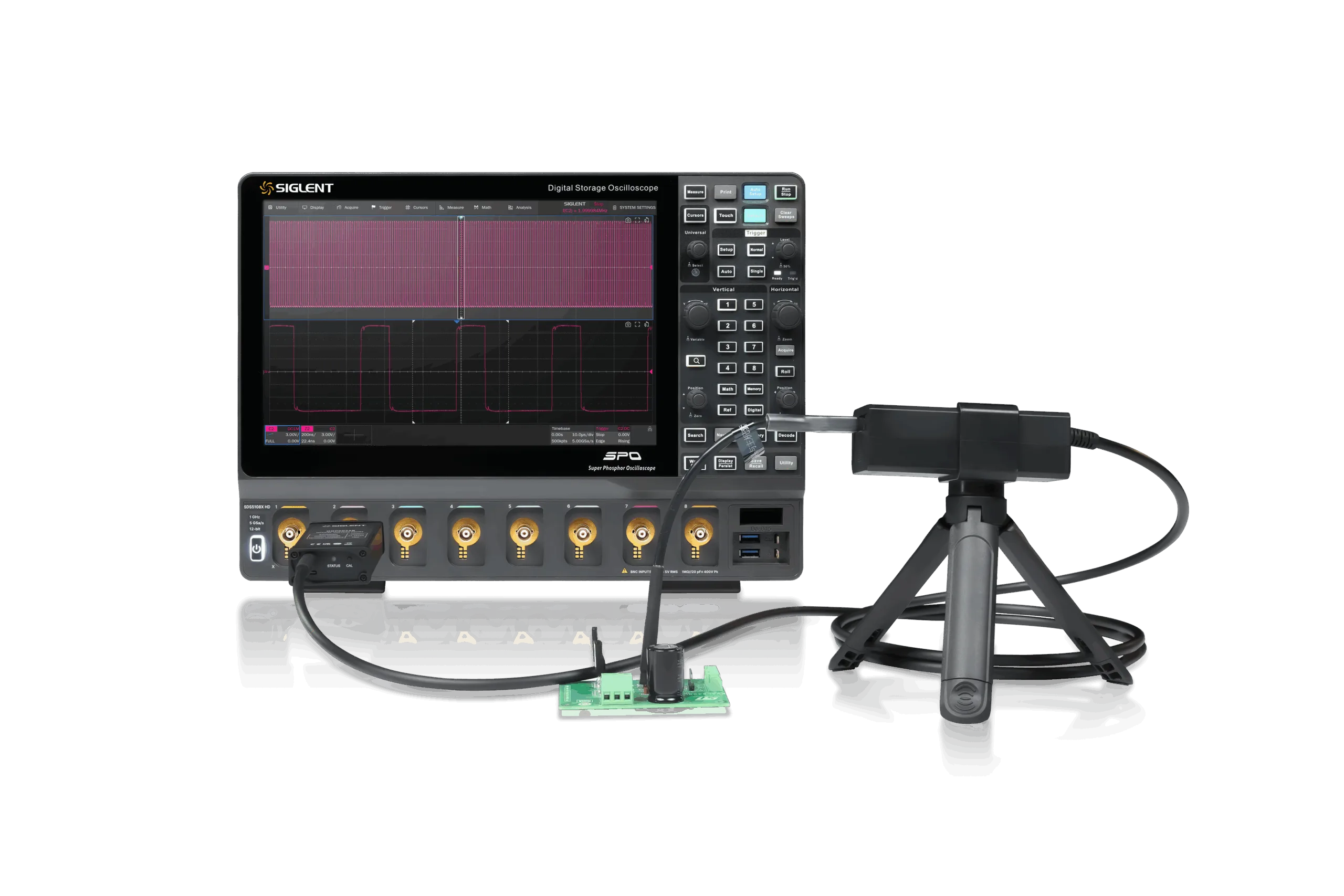

The ODP6050B is an optical isolated probe with a bandwidth of 500 MHz and a 50X attenuation factor. It supports a maximum differential test voltage of plus or minus 25 volts for both DC and peak AC measurements. The probe features an isolated voltage rating of up to 60 kilovolts, ensuring safe operation in high-voltage environments. Power can be supplied either through a DC 5-volt adapter or a 7.4-volt battery, providing flexibility in different usage scenarios. The device includes standard attenuators with options for 50X, 1000X, 2000X, and 5000X, allowing for a wide range of signal scaling. Manufactured by Siglent, the probe is designed to interface universally, accommodating various testing setups. This combination of features makes the ODP6050B suitable for precise and isolated voltage measurements across a broad frequency range.
Additional information

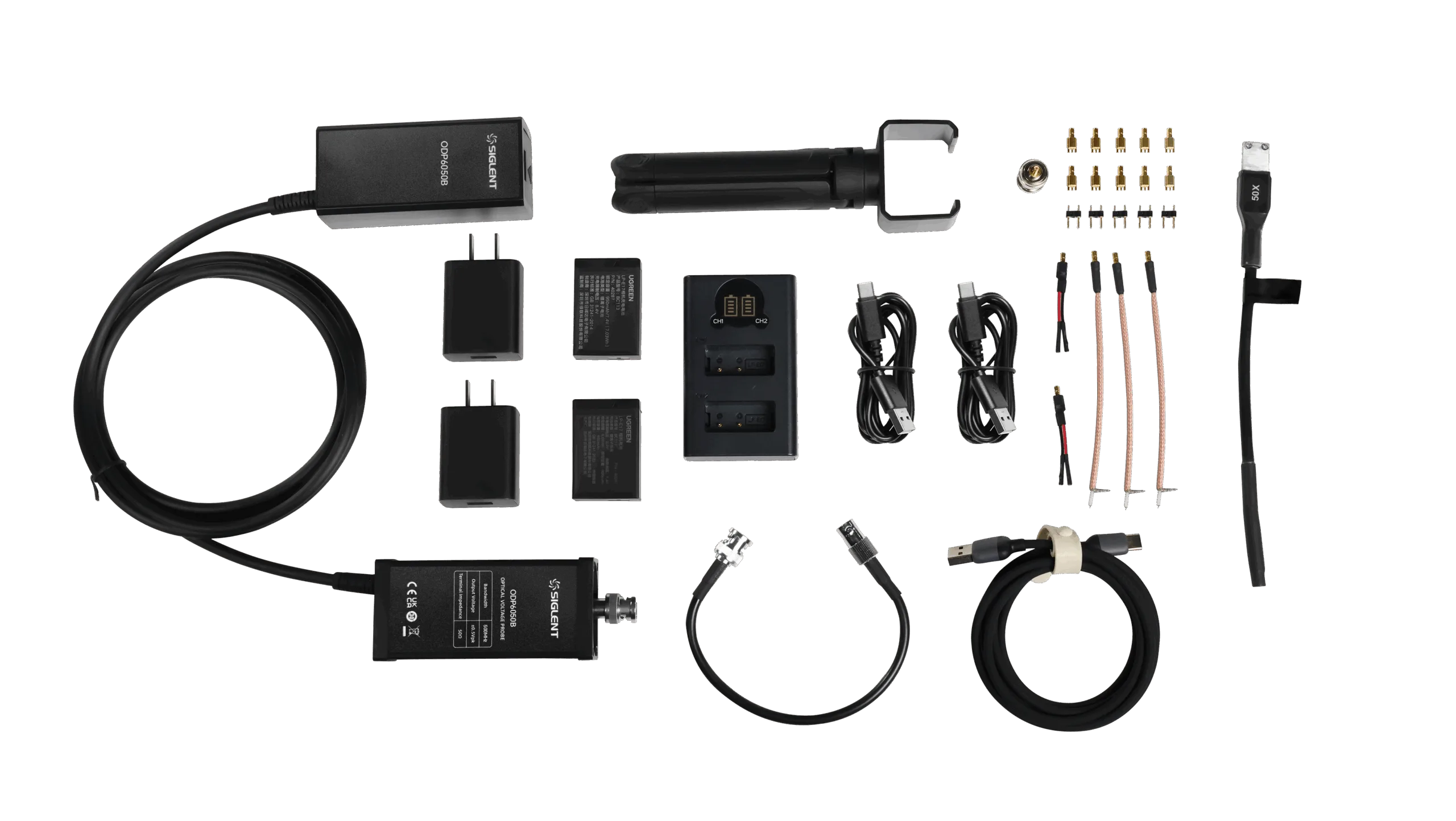

Optical isolated probe: 500 MHz, 50X, Max. Differential Test Voltage (DC + Peak AC) +/-25 V, Isolated Voltage +/-60 kV, DC 5 V adapter or 7.4 V battery Power supply，Standard 50X/1000X/2000X/5000X attenuator
Technical data
Specifications
3- Bandwidth
- 500 MHz
- Voltage Max
- 5000 V
- Interface
- Uniiversal
