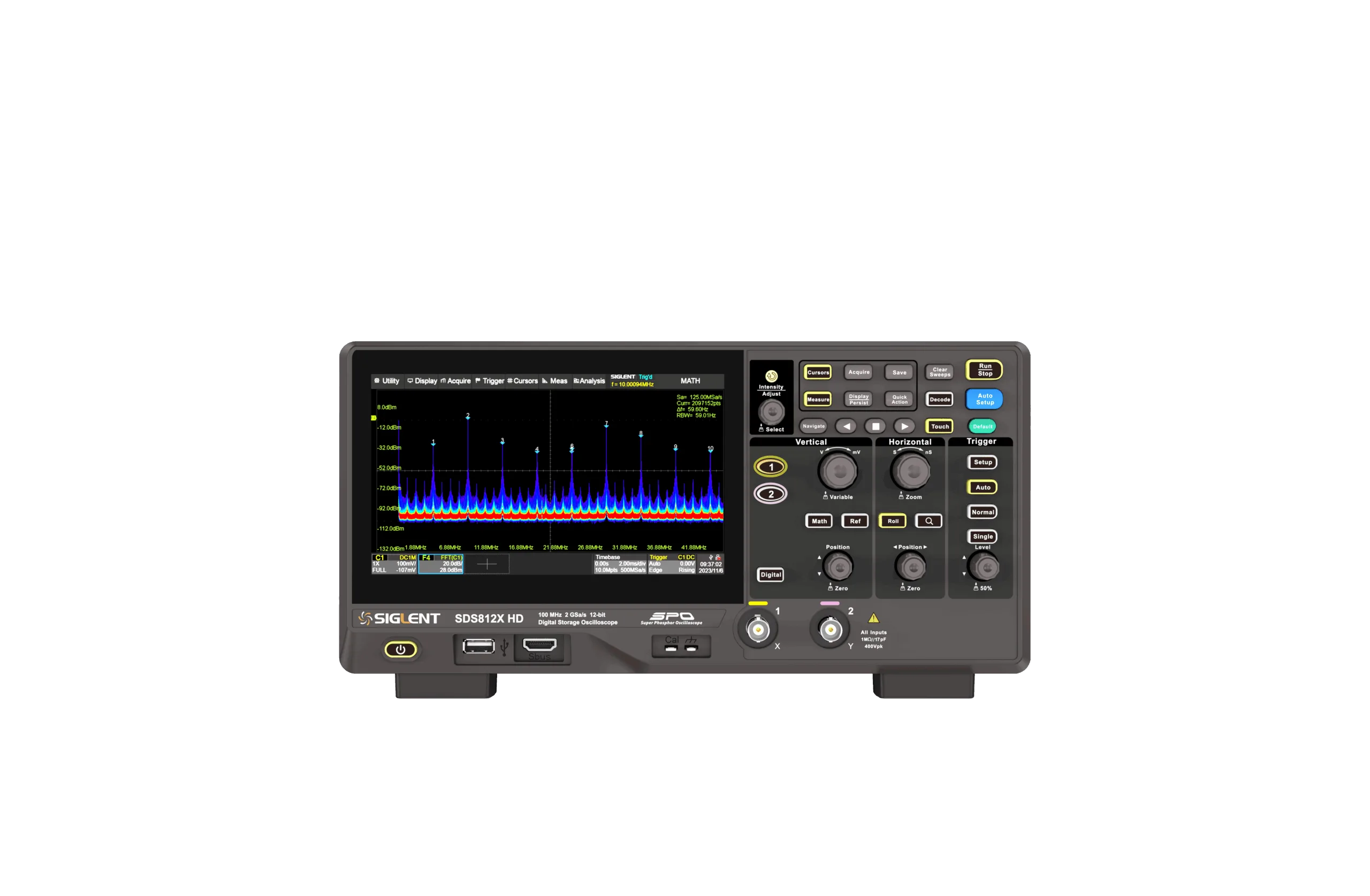

SDS812X HD
2Ch 12bit 100 MHz Oscilloscope
Article no.
SDS812X HD
- Channels
- 2
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 1000 MS/s
- Memory Depht
- 50 Mpts
CHF 429.25
incl. 8.1% VAT · CHF 397.09 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 100 MHz bandwidth
- 1000 MS/s sampling rate
- 50 Mpts memory depht
- 12 Bits vertical resolution
The Siglent SDS812X HD is a 2-channel oscilloscope featuring a 12-bit vertical resolution and a bandwidth of 100 MHz. It offers a high sampling rate of 1000 MS/s per channel, allowing for detailed signal analysis. The device includes a memory depth of 50 Mpts, which supports extended waveform capture and analysis. This model is equipped with a touch screen interface, enhancing user interaction and ease of operation. The oscilloscope is designed to handle a variety of measurement tasks with precision, supported by its advanced digital architecture. Its combination of high resolution, bandwidth, and sampling rate makes it suitable for a range of electronic testing and diagnostic applications.

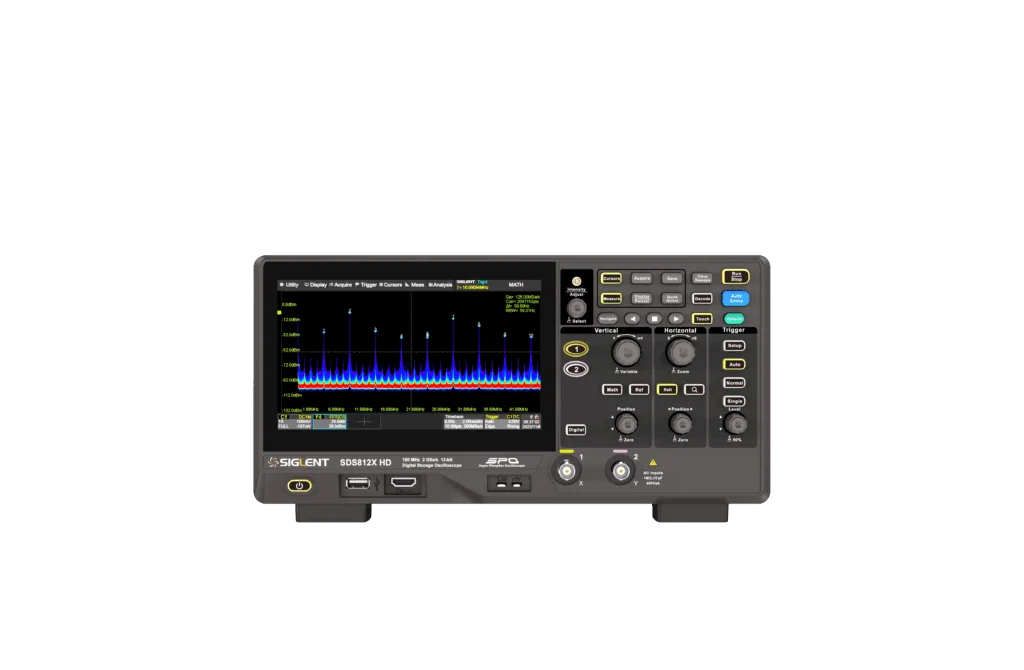

Video
SDS812X HD
Technical data
Specifications
7- Channels
- 2
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 1000 MS/s
- Memory Depht
- 50 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- Yes
