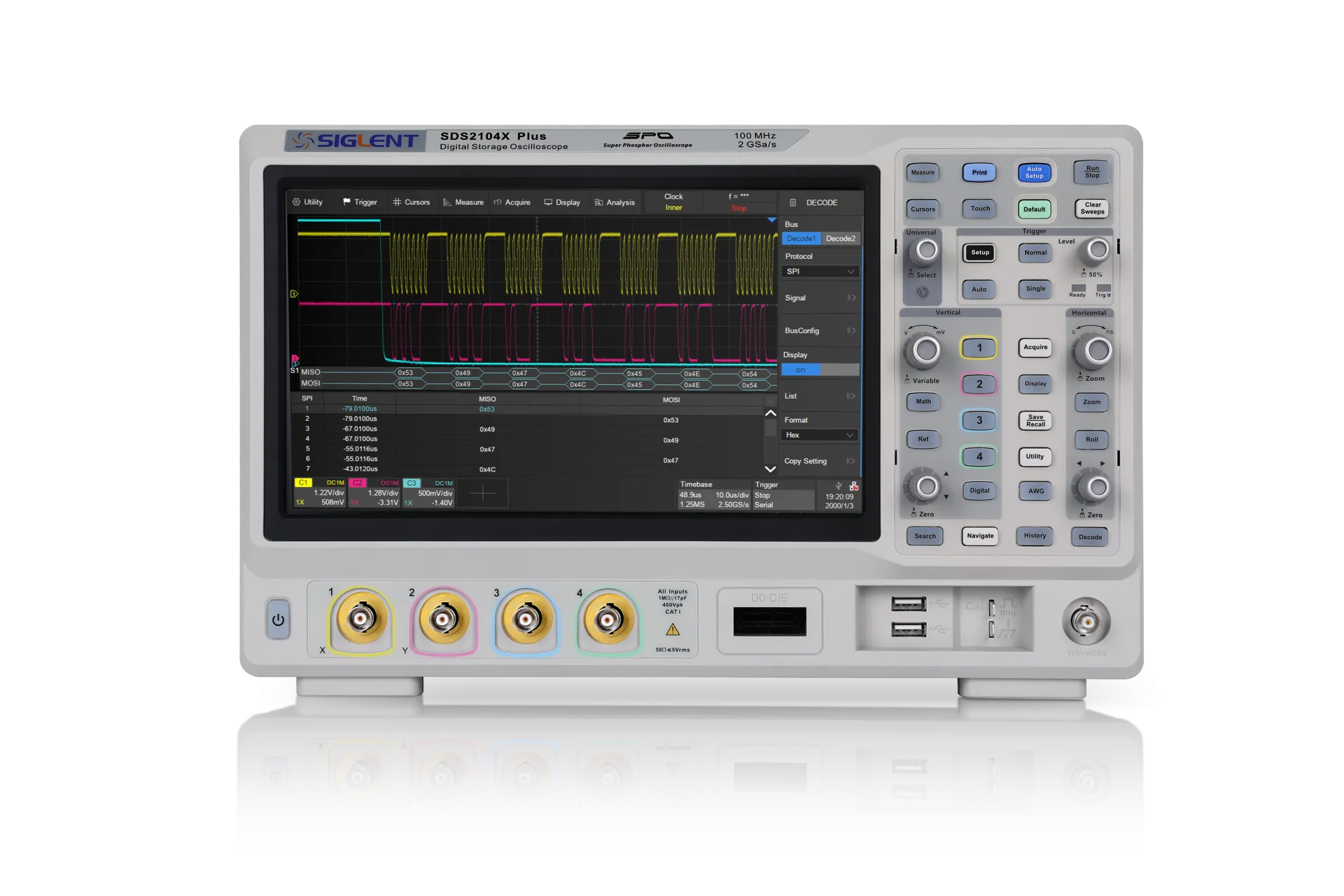

SDS2104X Plus
4Ch 100MHz 2GS/s Oscilloscope
Article no.
SDS2104X Plus
- Channels
- 4
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 1000 MS/s
- Memory Depht
- 400 Mpts
CHF 1'258.37
incl. 8.1% VAT · CHF 1'164.08 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 100 MHz bandwidth
- 1000 MS/s sampling rate
- 400 Mpts memory depht
- 8 Bits vertical resolution
The Siglent SDS2104X Plus is a 4-channel oscilloscope with a bandwidth of 100 MHz and a sampling rate of 2 GS/s. It features a memory depth of 400 Mpts, allowing for detailed signal analysis over extended periods. The device offers a vertical resolution of 8 bits, providing precise waveform representation. This model includes a touch screen interface, enhancing user interaction and ease of operation. Each channel supports a sampling rate of 1000 MS/s, enabling accurate capture of high-speed signals. The oscilloscope is designed to handle multiple input signals simultaneously, making it suitable for complex testing environments. Its combination of bandwidth, sampling rate, and memory depth supports a wide range of electronic measurement applications.
Video
SDS2104X Plus
Technical data
Specifications
7- Channels
- 4
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 1000 MS/s
- Memory Depht
- 400 Mpts
- Vertical Resolution
- 8 Bits
- Digital Channels
- Opt
- Touch Screen
- Yes
Presentation
Product presentation
