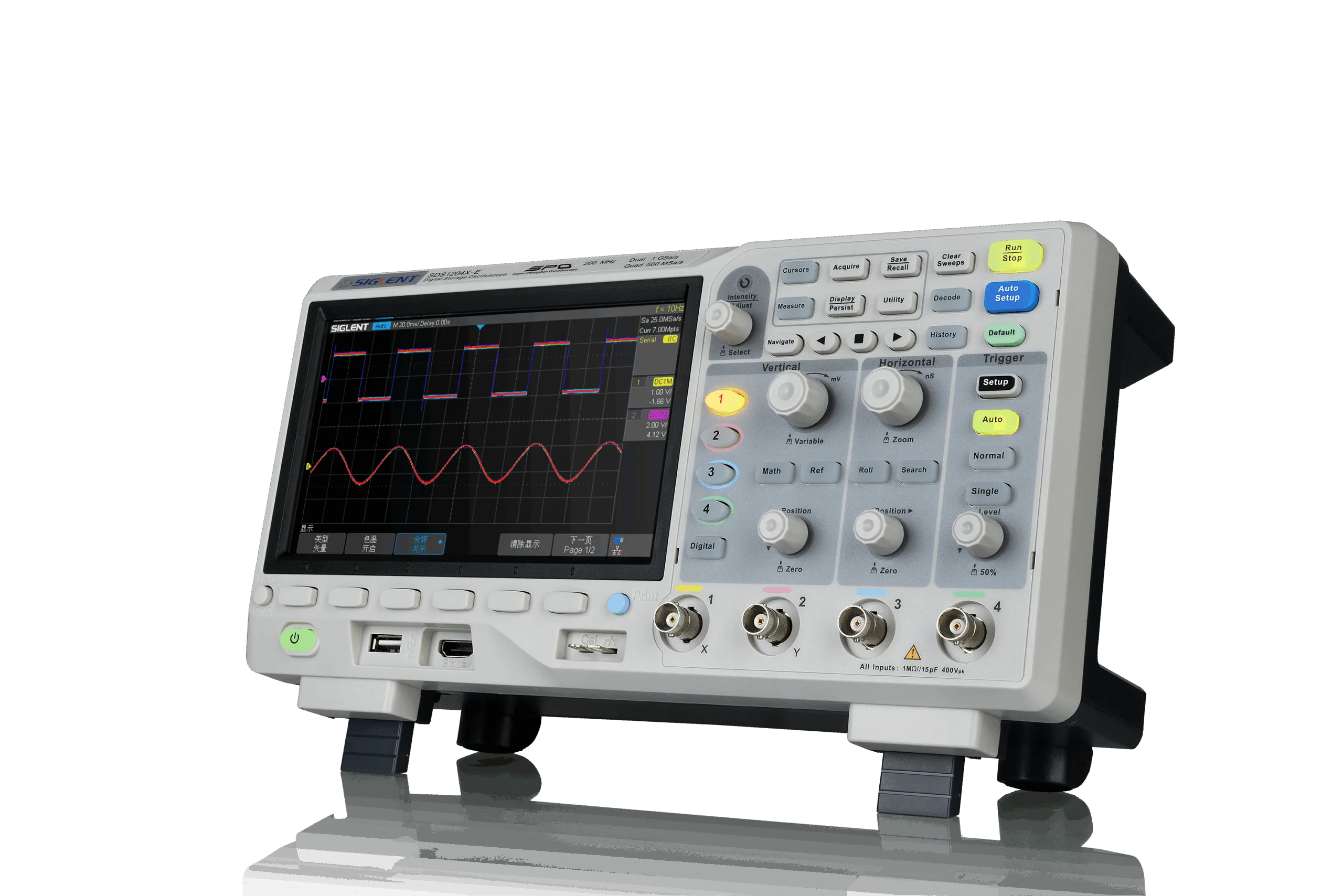

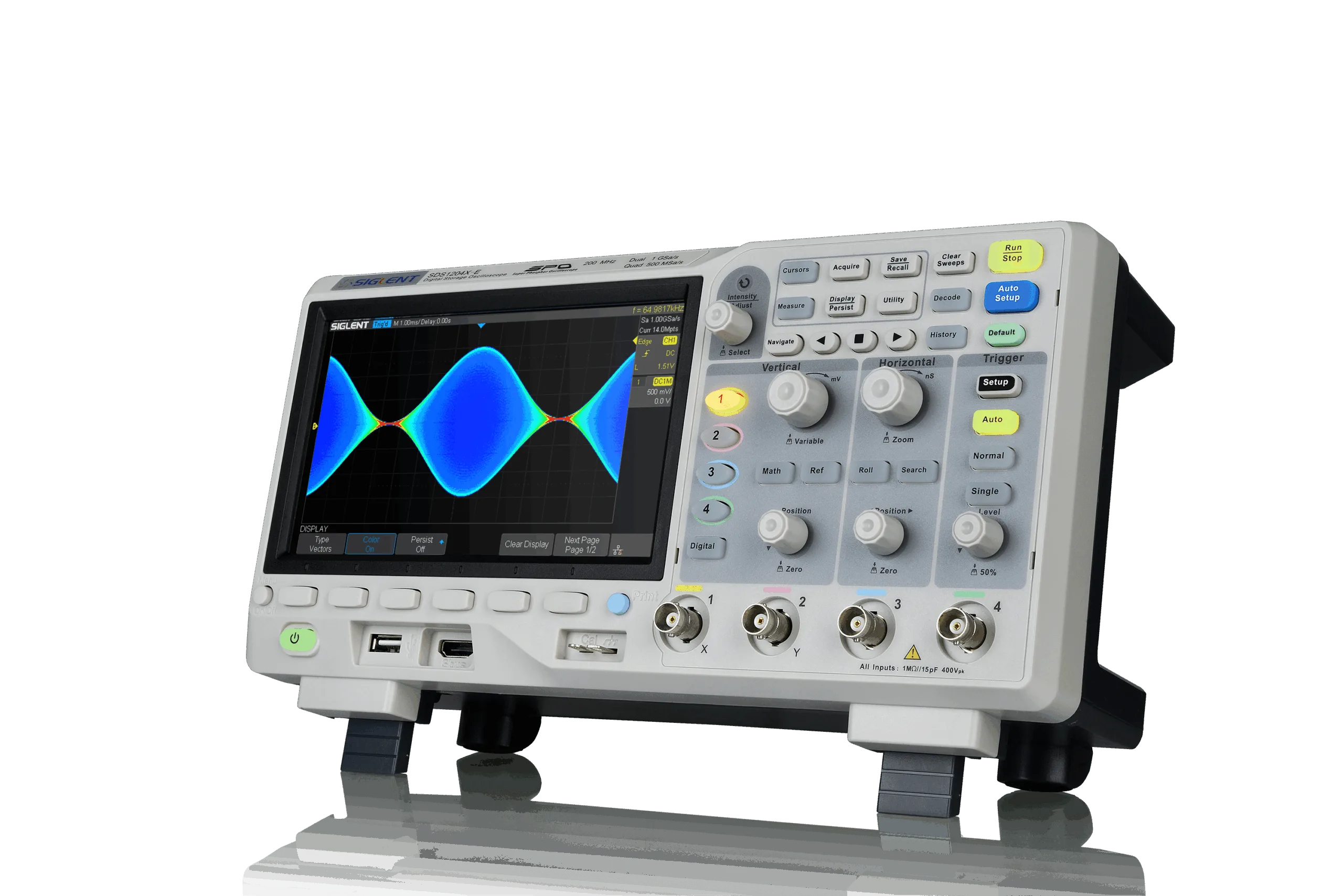

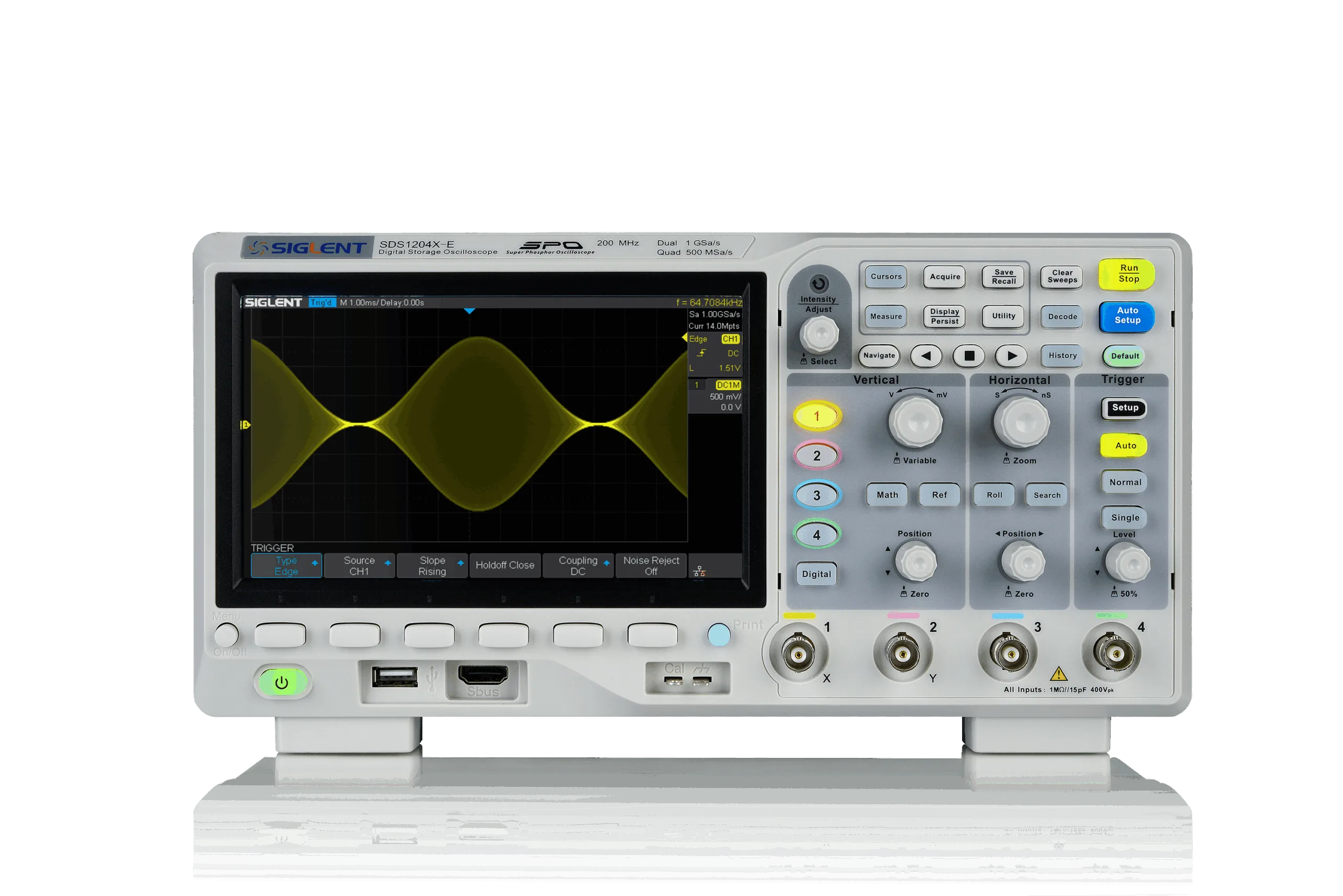

SDS1104X-E
100MHz 4 Channels Oscilloscope
Article no.
SDS1104X-E
- Channels
- 4
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 7 Mpts
CHF 450.24
incl. 8.1% VAT · CHF 416.50 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 100 MHz bandwidth
- 500 MS/s sampling rate
- 7 Mpts memory depht
- 8 Bits vertical resolution
The Siglent SDS1104X-E is a 100MHz oscilloscope equipped with four channels, allowing for simultaneous signal analysis across multiple inputs. It features a sampling rate of 500 MS/s per channel, providing detailed waveform capture and analysis. The device includes a memory depth of 7 Mpts, enabling extended data storage for complex signal examination. With an 8-bit vertical resolution, it offers precise amplitude measurement capabilities. The oscilloscope does not have a touch screen interface, focusing on traditional control methods. This model is designed to handle a bandwidth of 100 MHz, suitable for a variety of electronic testing applications. Its configuration supports detailed signal observation and troubleshooting across multiple channels without the inclusion of digital channels or remote control features.

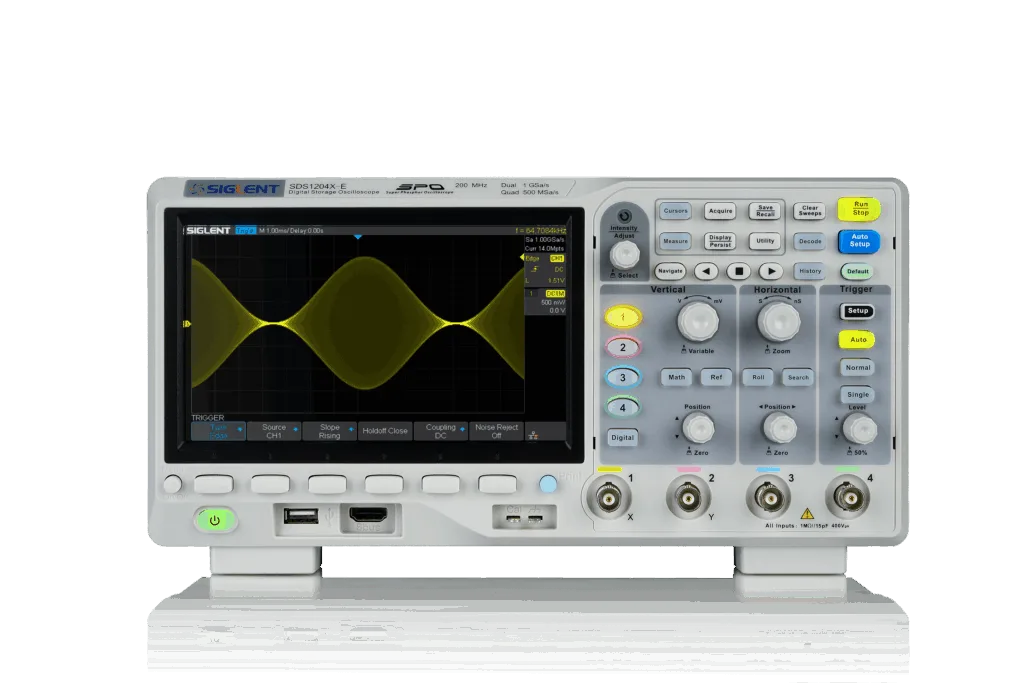

Video
SDS1104X-E
Technical data
Specifications
7- Channels
- 4
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 7 Mpts
- Vertical Resolution
- 8 Bits
- Digital Channels
- Opt
- Touch Screen
- No
Presentation
Product presentation
PDFDocuments
