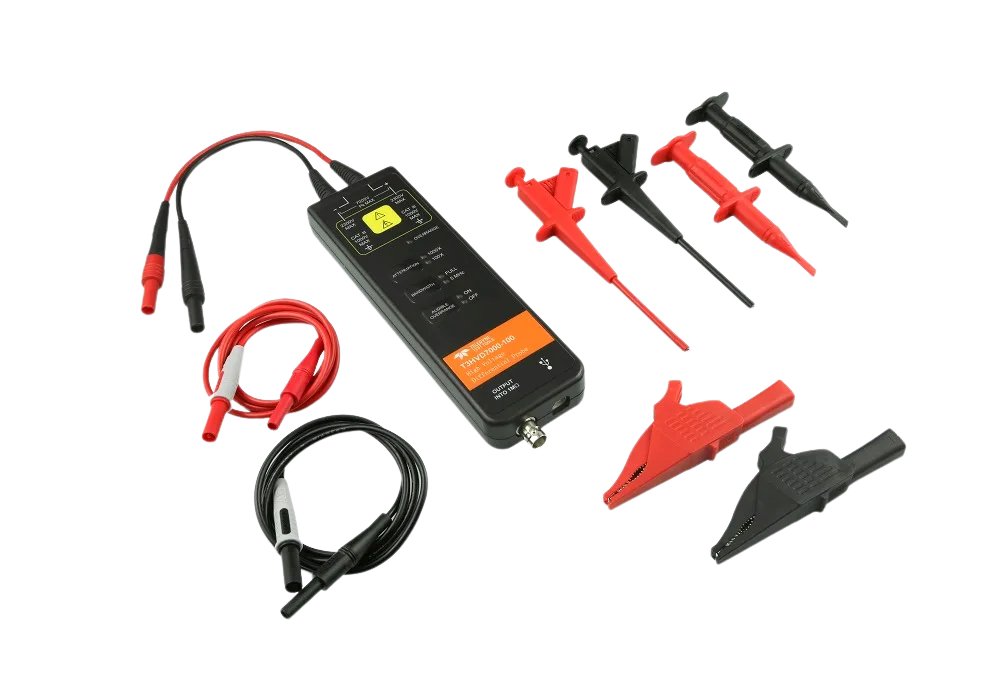

T3HVD7000-100
7kV, 100 MHz, 2.5 pF,40 Mega-Ω, Rise Time < 3.5 ns, High Voltage Differential Probe
Article no.
T3HVD7000-100
- Bandwidth
- 100 MHz
- Imax AC
- Voltage Max
- 7000 V
- Interface
- Universal
CHF 3'961.87
incl. 8.1% VAT · CHF 3'665.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 100 MHz bandwidth
- imax ac
- 7000 V voltage max
- Universal interface
The Teledyne Lecroy T3HVD7000-100 is a high voltage differential probe designed to handle voltages up to 7kV with a bandwidth of 100 MHz. It features a low input capacitance of 2.5 pF and a high input resistance of 40 Mega-Ω, which helps maintain signal integrity during measurements. The probe offers a fast rise time of less than 3.5 nanoseconds, making it suitable for capturing rapid signal transitions. Its universal interface allows compatibility with a wide range of test equipment. This probe is engineered to provide precise differential voltage measurements in high voltage environments, supporting accurate analysis of complex signals. The combination of high voltage capability and high bandwidth makes it a versatile tool for various electronic testing applications.
Technical data
Specifications
4- Bandwidth
- 100 MHz
- Imax AC
- Voltage Max
- 7000 V
- Interface
- Universal
