T3LVD20-200
200 MHz, 3.5 pF,1 Mega-Ω Active Differential Probe, ±20 V
Article no.
T3LVD20-200
- Bandwidth
- 200 MHz
- Imax AC
- Voltage Max
- 20 V
- Interface
- Universal
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 200 MHz bandwidth
- imax ac
- 20 V voltage max
- Universal interface

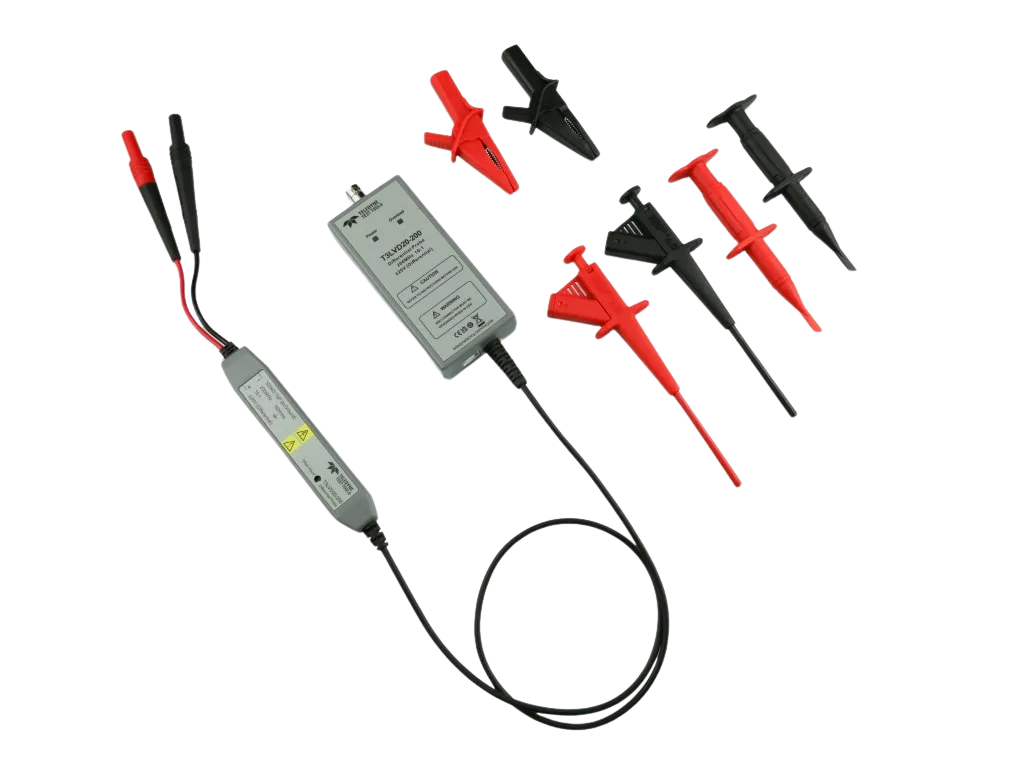

The Teledyne Lecroy T3LVD20-200 is an active differential probe designed to operate with a bandwidth of 200 MHz. It features an input capacitance of 3.5 pF and an input resistance of 1 Mega-Ω, allowing it to handle signals with a maximum voltage of ±20 V. This probe is equipped with a universal interface, making it compatible with a variety of measurement instruments. The design supports accurate differential signal measurements within its specified voltage range. Its active circuitry helps maintain signal integrity and reduce loading effects on the device under test. The probe is suitable for applications requiring precise voltage measurements up to 20 volts. The combination of its bandwidth and input characteristics makes it a useful tool for analyzing high-frequency signals in electronic testing environments.
Technical data
Specifications
4- Bandwidth
- 200 MHz
- Imax AC
- Voltage Max
- 20 V
- Interface
- Universal
