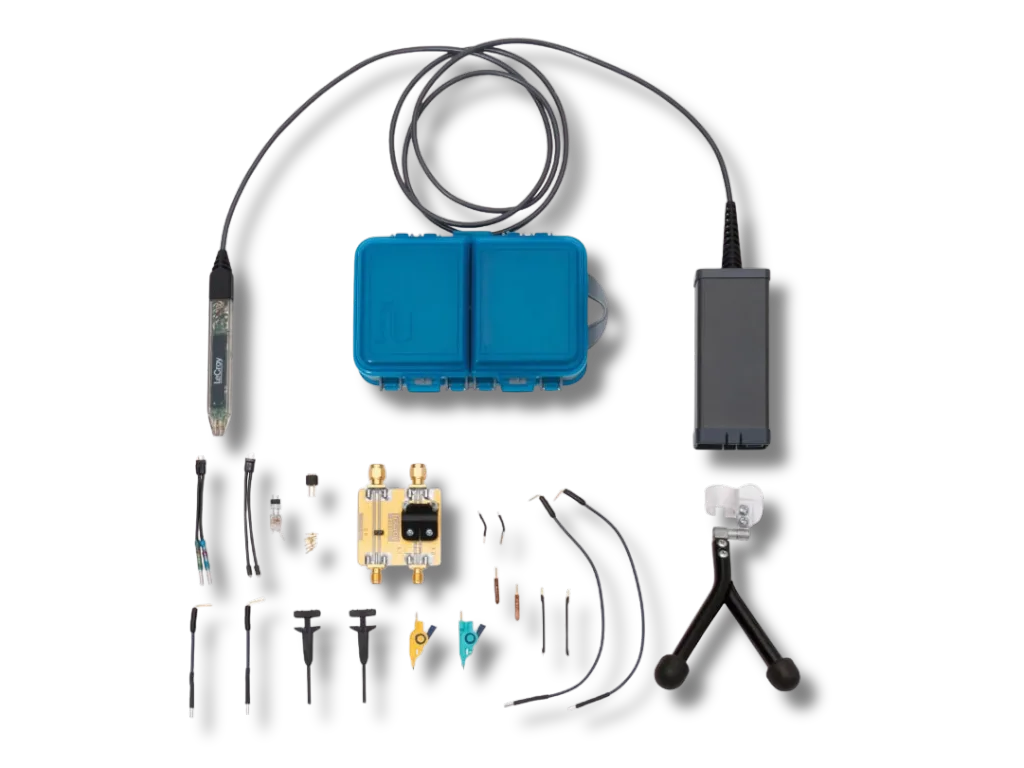

ZD1500
1.5 GHz, 1.0 pF Active Differential Probe, ±8 V
Article no.
ZD1500
- Bandwidth
- 1500 MHz
- Imax AC
- Voltage Max
- 8 V
- Interface
- LeCroy
CHF 10'096.54
incl. 8.1% VAT · CHF 9'340.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 1500 MHz bandwidth
- imax ac
- 8 V voltage max
- LeCroy interface
The Teledyne Lecroy ZD1500 is an active differential probe with a bandwidth of 1.5 GHz and a maximum voltage rating of ±8 V. It features a low input capacitance of 1.0 pF, which helps minimize loading effects on the circuit under test. The probe is designed to interface with LeCroy equipment, ensuring compatibility and reliable signal acquisition. Its active design allows for accurate differential measurements in high-frequency applications. The ZD1500 is suitable for use in environments where precise voltage measurements within the specified range are required. This probe supports high-speed signal analysis due to its wide bandwidth, making it a valuable tool for detailed electronic testing and diagnostics.
Video
ZD1500
Technical data
Specifications
4- Bandwidth
- 1500 MHz
- Imax AC
- Voltage Max
- 8 V
- Interface
- LeCroy
Documents
