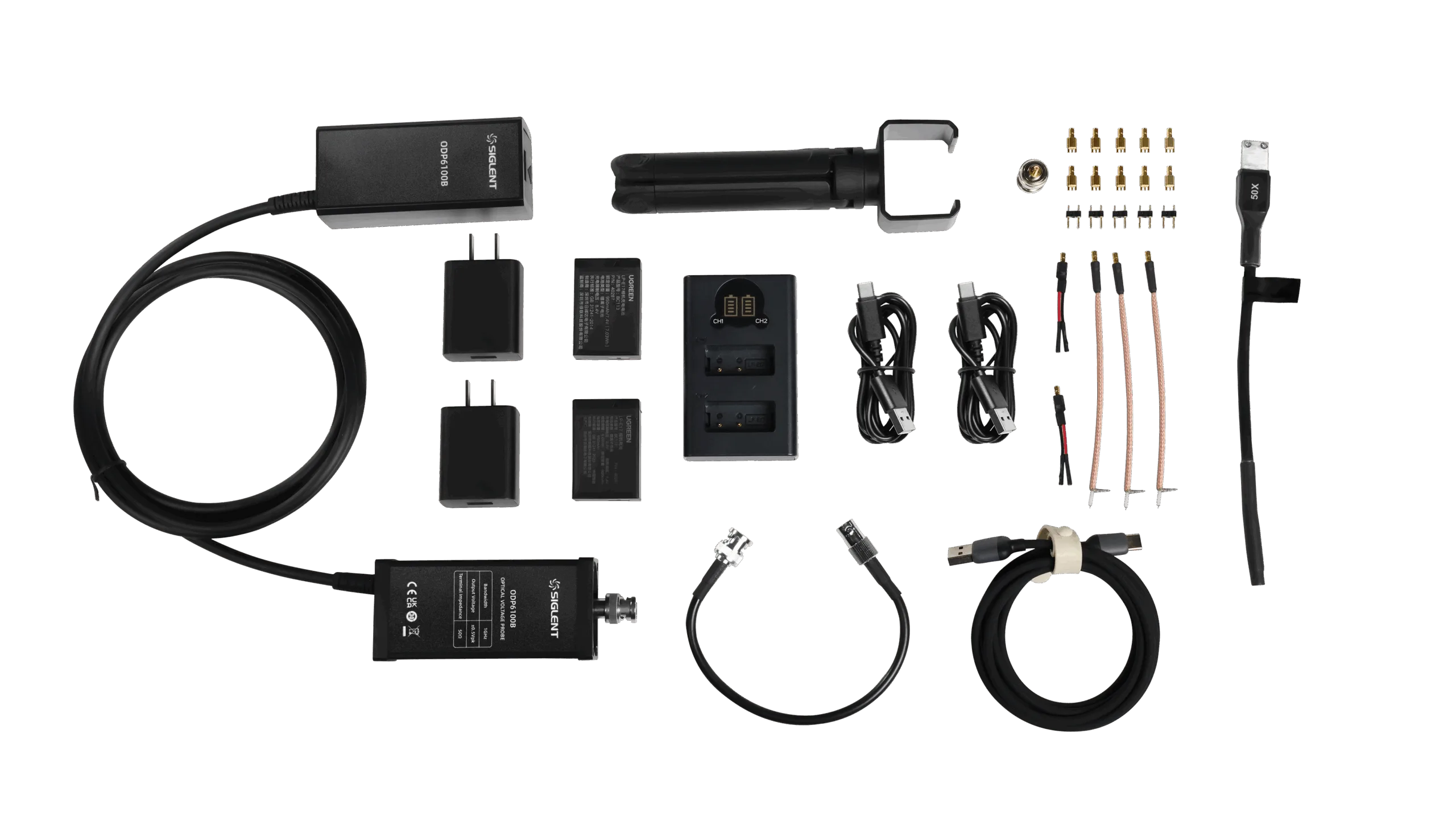

ODP6100B
Optical isolated probe: 1 GHz, 50X, Max. Differential Test Voltage (DC + Peak AC) +/-25 V, Isolated Voltage +/-60 kV, DC 5 V adapter or 7.4 V battery Power supply，Standard 50X/1000…
Article no.
ODP6100B
- Bandwidth
- 1000 MHz
- Voltage Max
- 5000 V
- Interface
- Uniiversal
CHF 8'952.36
incl. 8.1% VAT · CHF 8'281.55 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 1000 MHz bandwidth
- 5000 V voltage max
- Uniiversal interface
The Siglent ODP6100B is an optical isolated probe designed to operate with a bandwidth of 1 GHz and a standard attenuation of 50X, 1000X, 2000X, and 5000X. It supports a maximum differential test voltage of plus or minus 25 volts for DC and peak AC measurements, while its isolated voltage capability reaches up to plus or minus 60 kilovolts. The device can be powered either by a DC 5-volt adapter or a 7.4-volt battery, providing flexibility in various testing environments. This probe is suitable for applications requiring high voltage isolation and precise signal attenuation. Its design ensures compatibility with a range of measurement setups, particularly where electrical isolation is critical. The inclusion of multiple attenuation options allows for adaptability depending on the signal strength and measurement requirements. The ODP6100B is part of Siglent’s product lineup, known for technical specifications that cater to advanced electronic testing needs.
Additional information
Optical isolated probe: 1 GHz, 50X, Max. Differential Test Voltage (DC + Peak AC) +/-25 V, Isolated Voltage +/-60 kV, DC 5 V adapter or 7.4 V battery Power supply，Standard 50X/1000X/2000X/5000X attenuator
Technical data
Specifications
3- Bandwidth
- 1000 MHz
- Voltage Max
- 5000 V
- Interface
- Uniiversal
