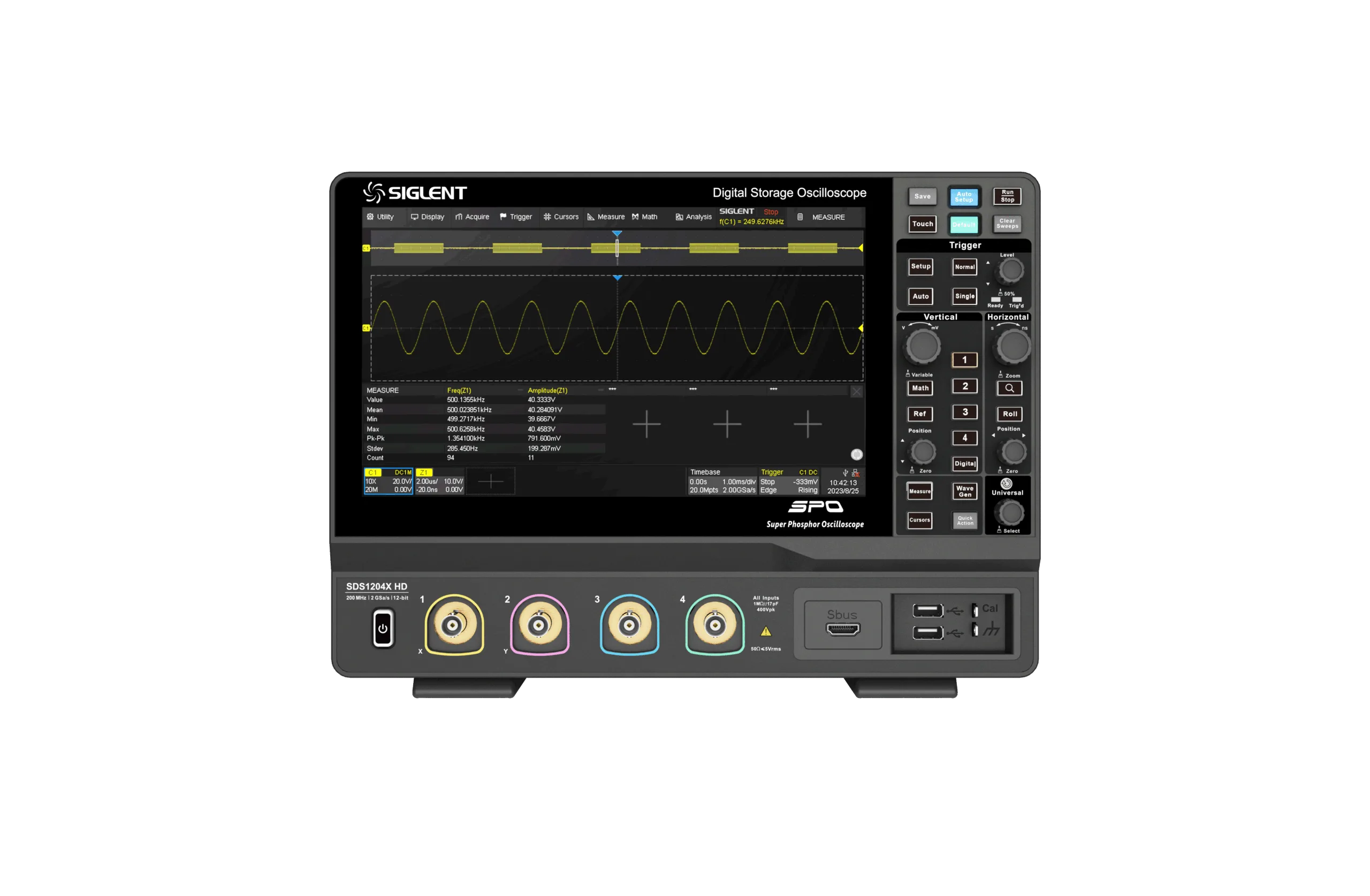

SDS1204X HD
4Ch 12bit 200 MHz Oscilloscope
Article no.
SDS1204X HD
- Channels
- 4
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 100 Mpts
CHF 1'363.32
incl. 8.1% VAT · CHF 1'261.17 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 200 MHz bandwidth
- 500 MS/s sampling rate
- 100 Mpts memory depht
- 12 Bits vertical resolution

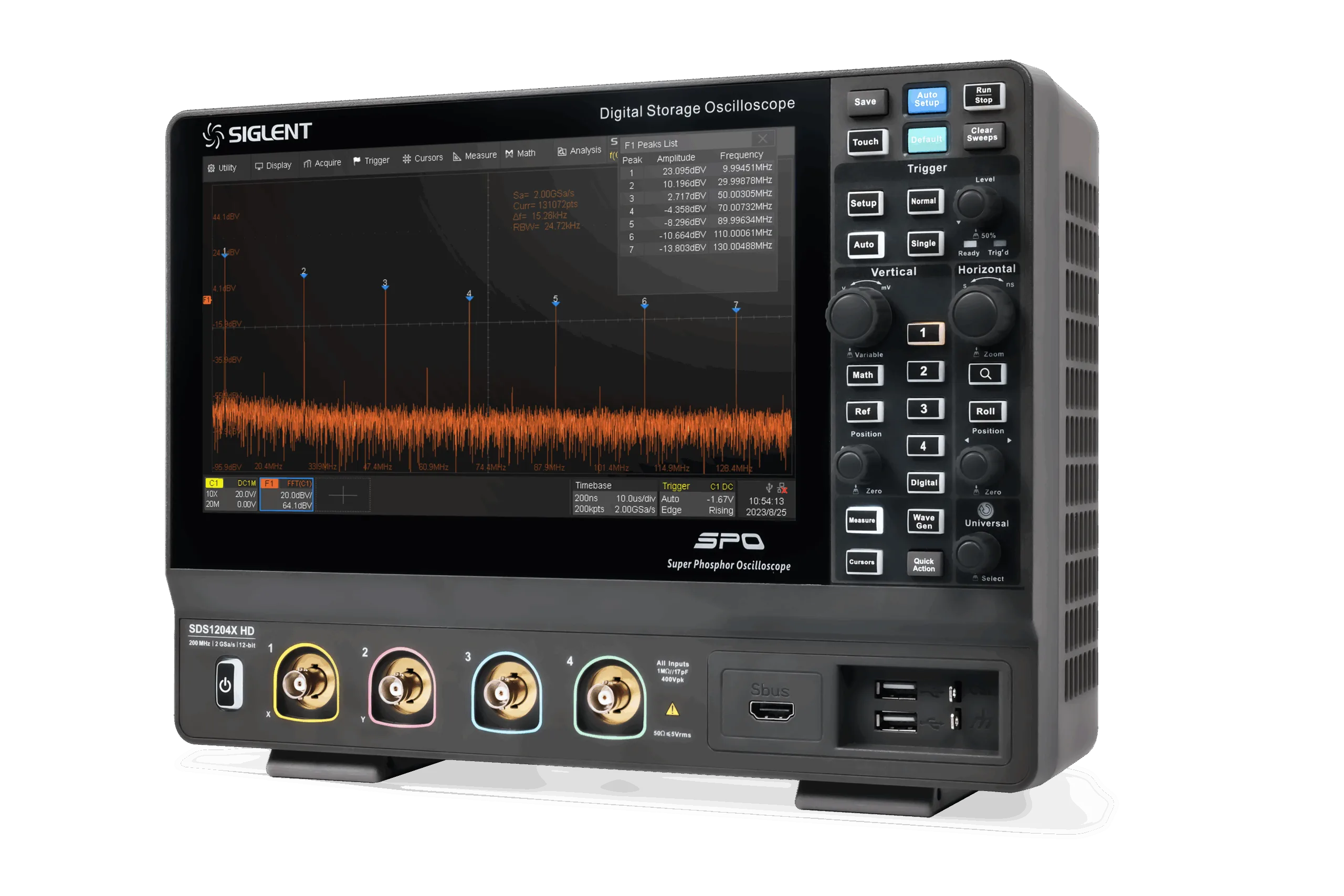

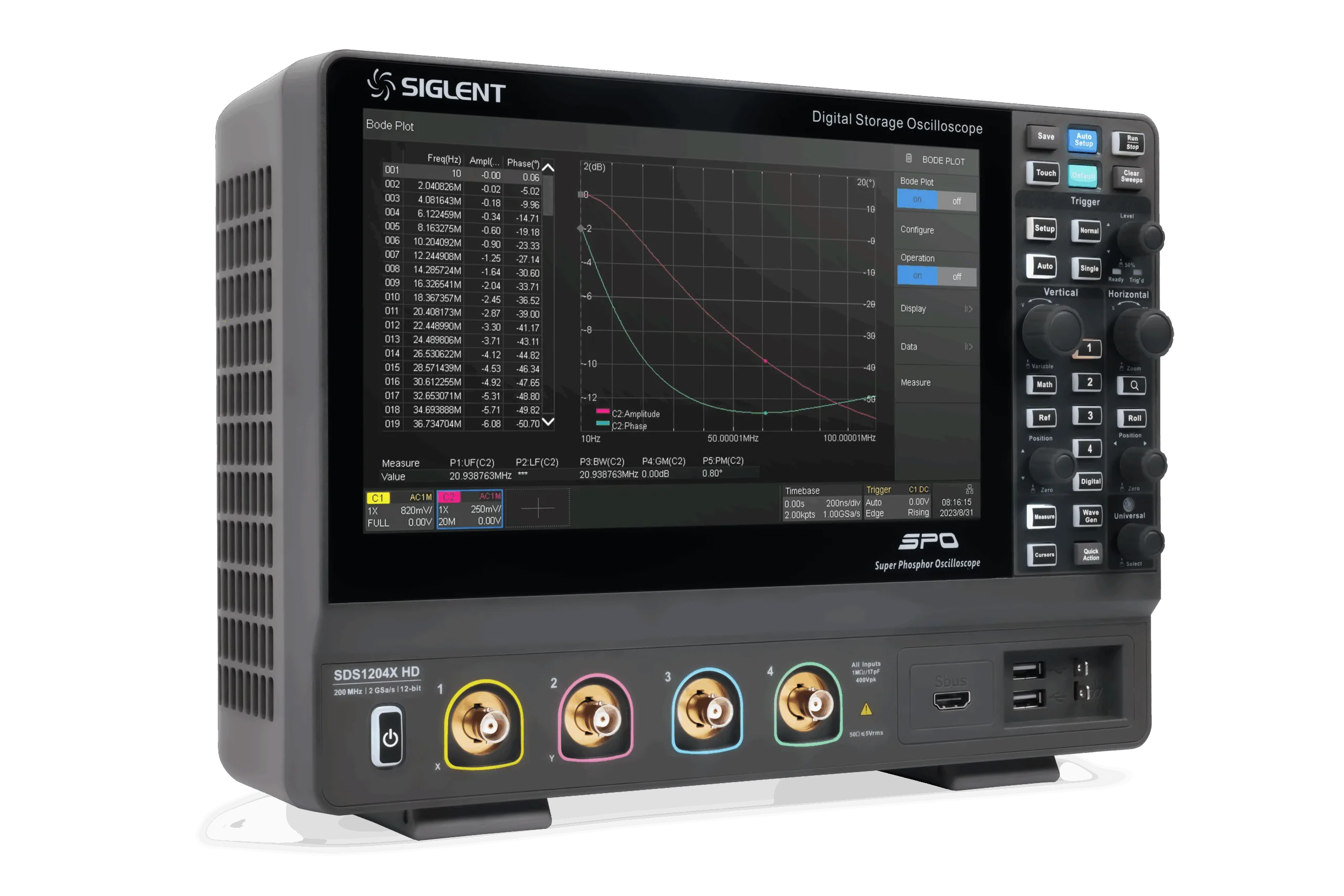

The Siglent SDS1204X HD is a 4-channel oscilloscope featuring a 12-bit vertical resolution and a bandwidth of 200 MHz. It offers a high sampling rate of 500 MS/s per channel, allowing for detailed signal analysis. The device includes a memory depth of 100 Mpts, providing ample storage for capturing complex waveforms. This oscilloscope is equipped with a touch screen interface, enhancing user interaction and ease of operation. Its design supports simultaneous multi-channel measurements, making it suitable for various testing and diagnostic applications. The combination of high resolution and bandwidth ensures accurate signal representation across multiple channels. The SDS1204X HD is built to handle a wide range of electronic testing needs with precision and efficiency.
Technical data
Specifications
7- Channels
- 4
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 100 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- Yes
