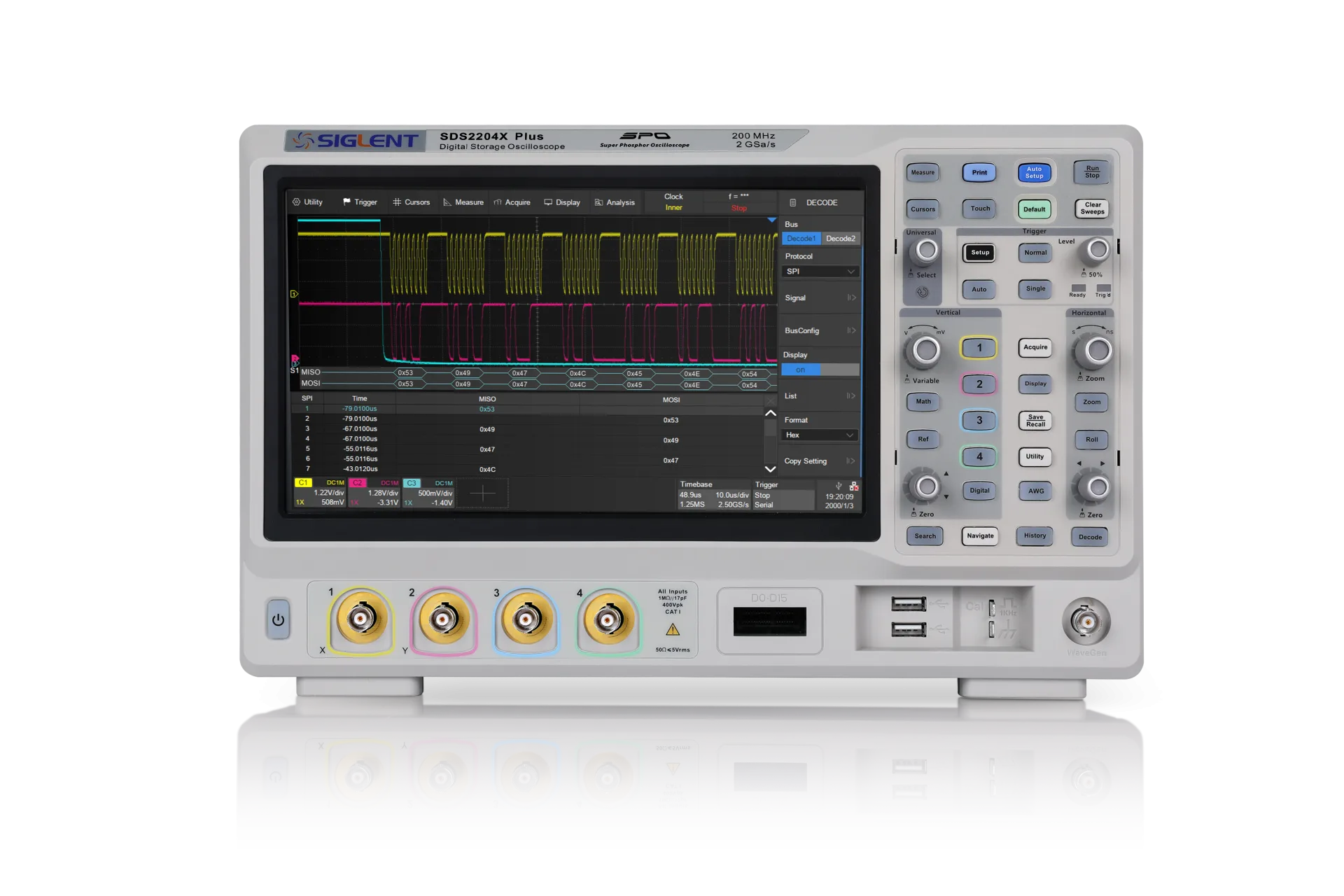

SDS2204X Plus
4Ch 200MHz 2GS/s Oscilloscope
Article no.
SDS2204X Plus
- Channels
- 4
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 1000 MS/s
- Memory Depht
- 400 Mpts
CHF 1'993.03
incl. 8.1% VAT · CHF 1'843.69 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 200 MHz bandwidth
- 1000 MS/s sampling rate
- 400 Mpts memory depht
- 8 Bits vertical resolution
The Siglent SDS2204X Plus is a 4-channel oscilloscope with a bandwidth of 200 MHz and a sampling rate of 2 GS/s. It features a memory depth of 400 Mpts, allowing for detailed signal analysis over extended periods. The device offers a vertical resolution of 8 bits, providing precise waveform representation. Each channel supports a sampling rate of 1000 MS/s, ensuring accurate capture of high-speed signals. The oscilloscope is equipped with a touch screen interface, enhancing user interaction and ease of operation. Designed to handle multiple input signals simultaneously, the four channels enable comprehensive testing and measurement tasks. This model is suitable for various applications requiring detailed waveform visualization and analysis.
Video
SDS2204X Plus
Technical data
Specifications
7- Channels
- 4
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 1000 MS/s
- Memory Depht
- 400 Mpts
- Vertical Resolution
- 8 Bits
- Digital Channels
- Opt
- Touch Screen
- Yes
Presentation
Product presentation
PDFDocuments
