SDS824X HD
4Ch 12bit 200 MHz Oscilloscope
Article no.
SDS824X HD
- Channels
- 4
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 50 Mpts
CHF 733.61
incl. 8.1% VAT · CHF 678.64 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 200 MHz bandwidth
- 500 MS/s sampling rate
- 50 Mpts memory depht
- 12 Bits vertical resolution

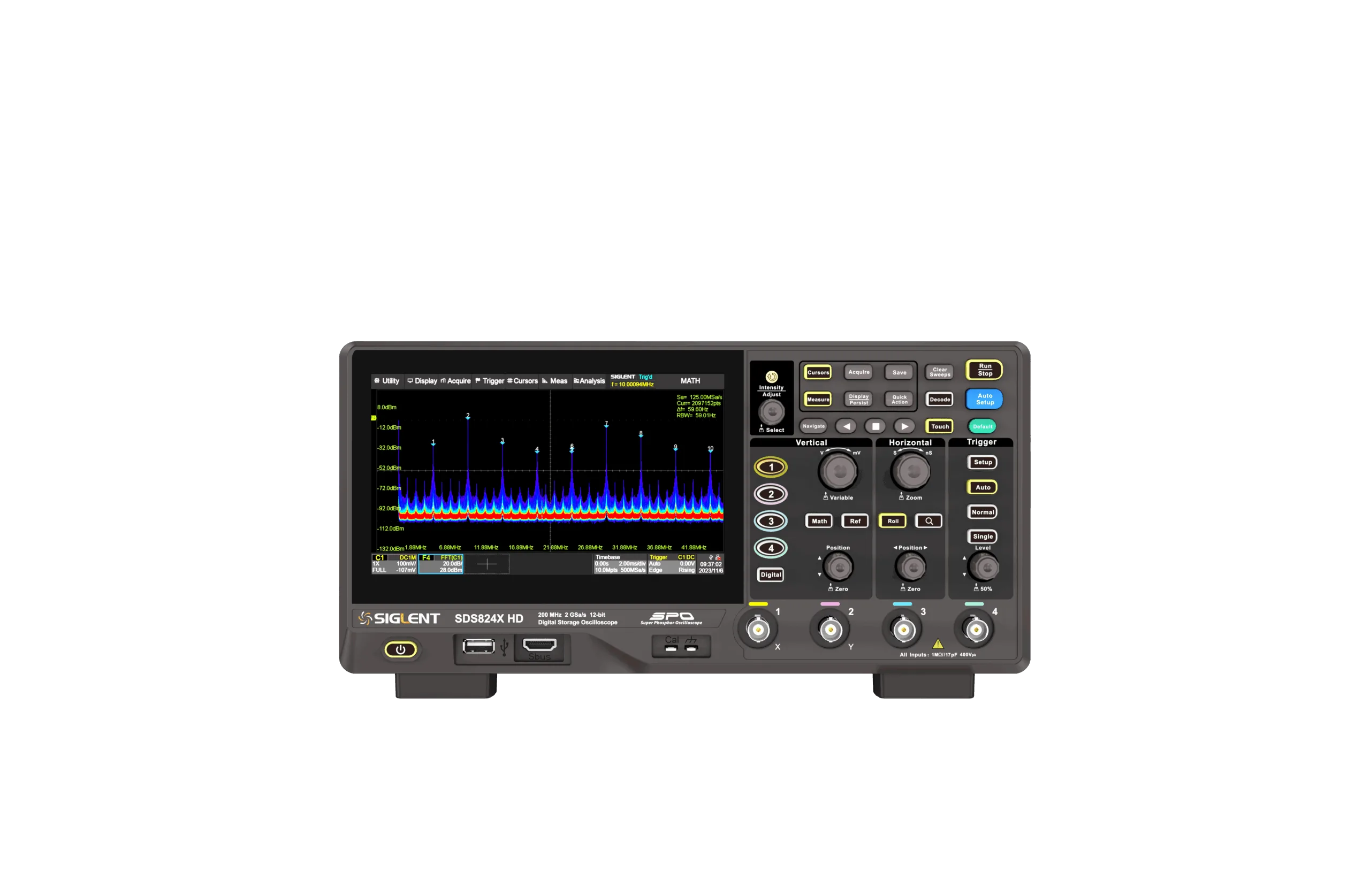

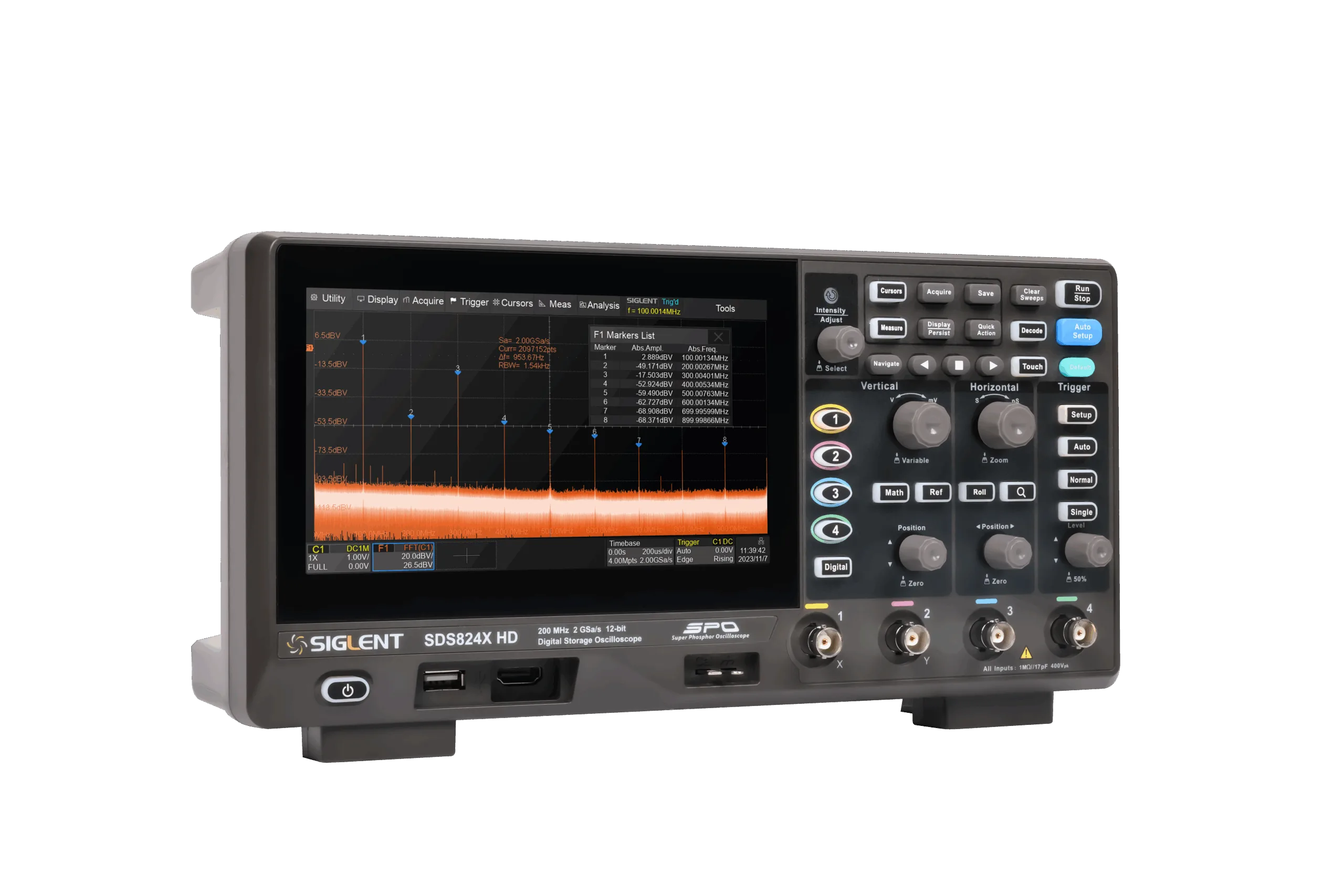

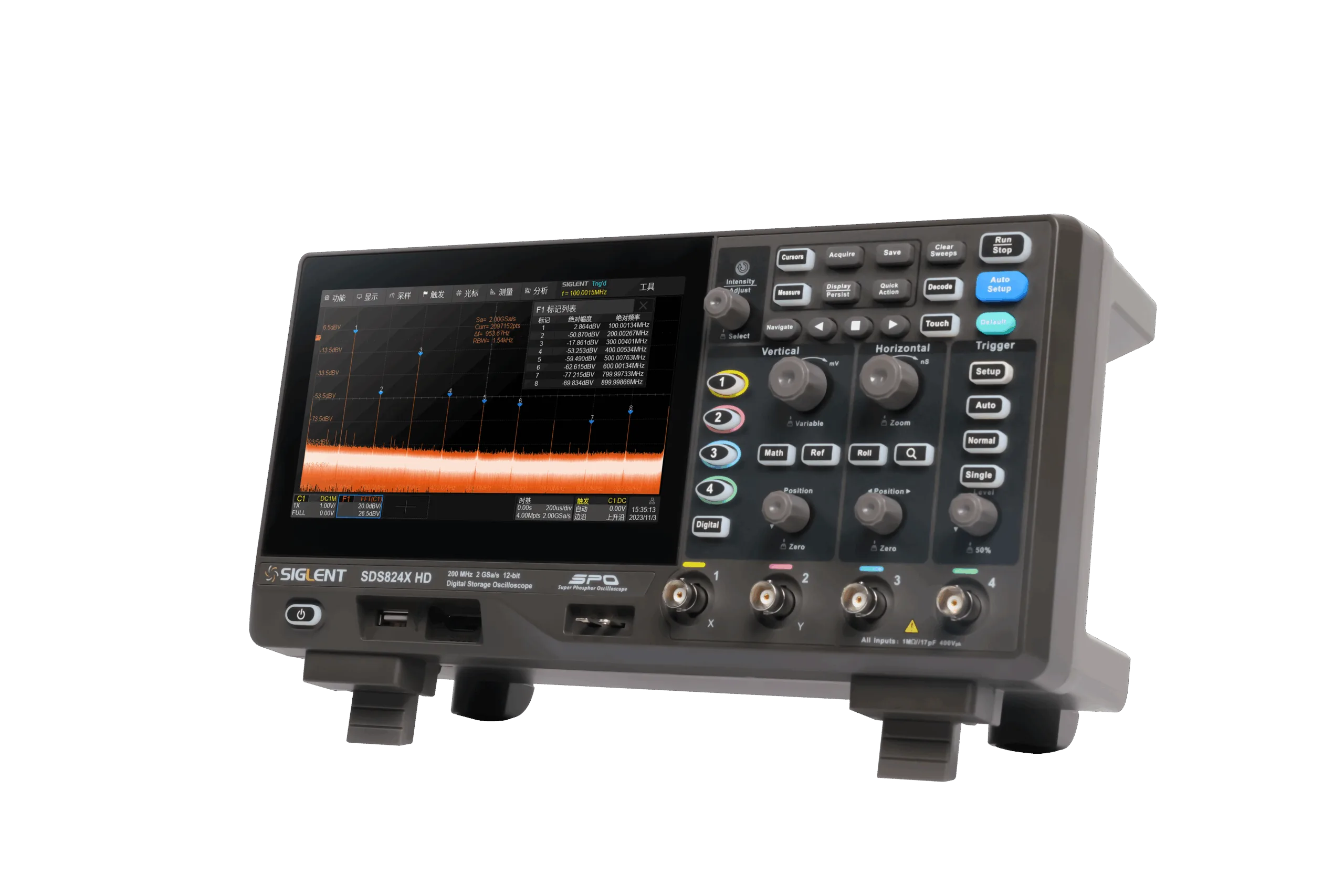

The Siglent SDS824X HD is a 4-channel oscilloscope featuring a 12-bit vertical resolution and a bandwidth of 200 MHz. It offers a sampling rate of 500 MS/s per channel, allowing for detailed signal analysis. The device includes a memory depth of 50 Mpts, which supports extended waveform capture and analysis. This oscilloscope is equipped with a touch screen interface, enhancing user interaction and ease of operation. The combination of high resolution and substantial memory depth makes it suitable for various testing and measurement applications. The model is designed to handle multiple input signals simultaneously across its four channels. Its specifications focus on delivering precise and reliable waveform visualization and data acquisition.

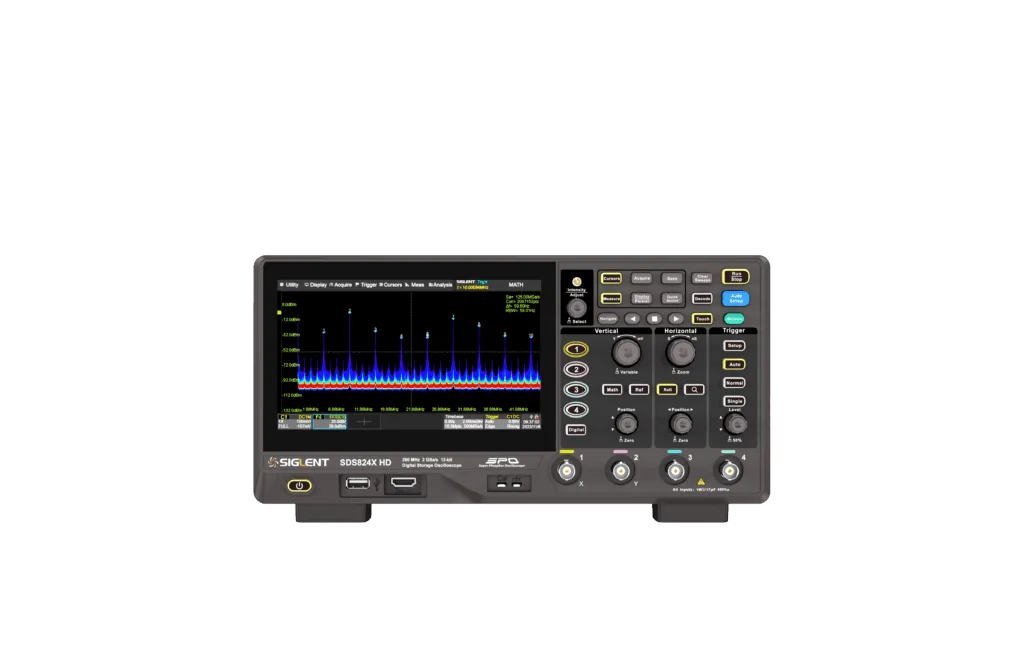

Video
SDS824X HD
Technical data
Specifications
7- Channels
- 4
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 50 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- Yes
Presentation
Product presentation
PDFDocuments
