SDS6204L
1U; 8-bit，2 GHz; 4 channels; 5 GSa/s (10 GSa/s ESR) @ each channel; 500Mpts memory depth; 170,000 wfm/s waveform capture rate; 4 MATH traces, 8 Mpts FFT;
Article no.
SDS6204L
- Channels
- 4
- Bandwidth
- 2000 MHz
- Sampling Rate/Channels
- 5000 MS/s
- Memory Depht
- 500 Mpts
CHF 13'937.55
incl. 8.1% VAT · CHF 12'893.20 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 2000 MHz bandwidth
- 5000 MS/s sampling rate
- 500 Mpts memory depht
- 8 Bits vertical resolution

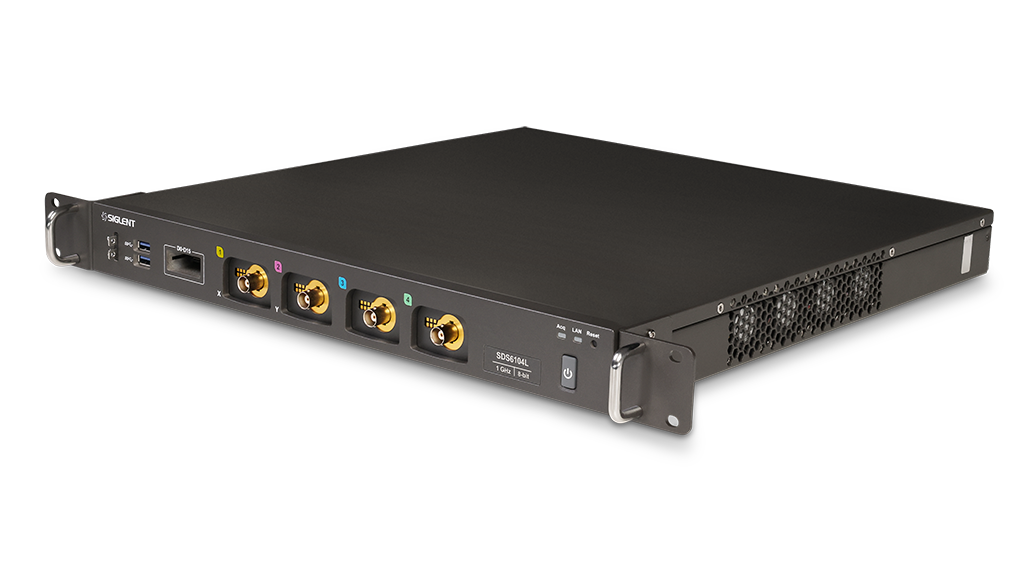

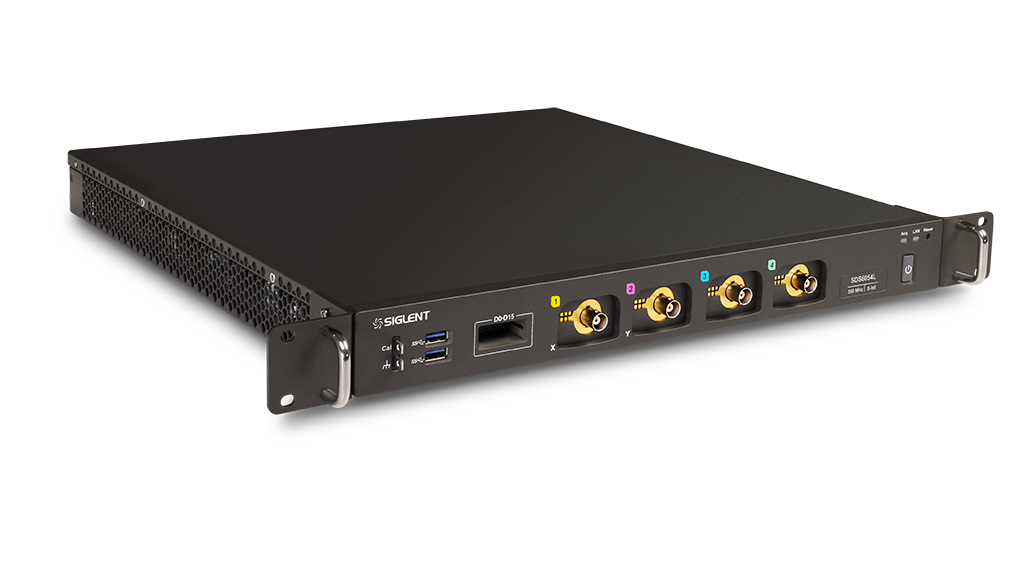

The SDS6204L from Siglent is a 1U device featuring an 8-bit vertical resolution and a bandwidth of 2000 MHz. It offers 4 channels, each capable of sampling at 5 GSa/s, with an equivalent sampling rate (ESR) of 10 GSa/s. The memory depth per channel is 500 Mpts, allowing for extensive data capture. This model supports a waveform capture rate of 170,000 waveforms per second, enhancing its ability to analyze rapid signal changes. Additionally, it provides 4 MATH traces and an 8 Mpts FFT for advanced signal processing. The device does not include a touch screen interface. Its sampling rate per channel is 5000 MS/s, and it is designed to handle high-speed data acquisition and analysis tasks.
Video
SDS6204L
Technical data
Specifications
7- Channels
- 4
- Bandwidth
- 2000 MHz
- Sampling Rate/Channels
- 5000 MS/s
- Memory Depht
- 500 Mpts
- Vertical Resolution
- 8 Bits
- Digital Channels
- Opt
- Touch Screen
- No
