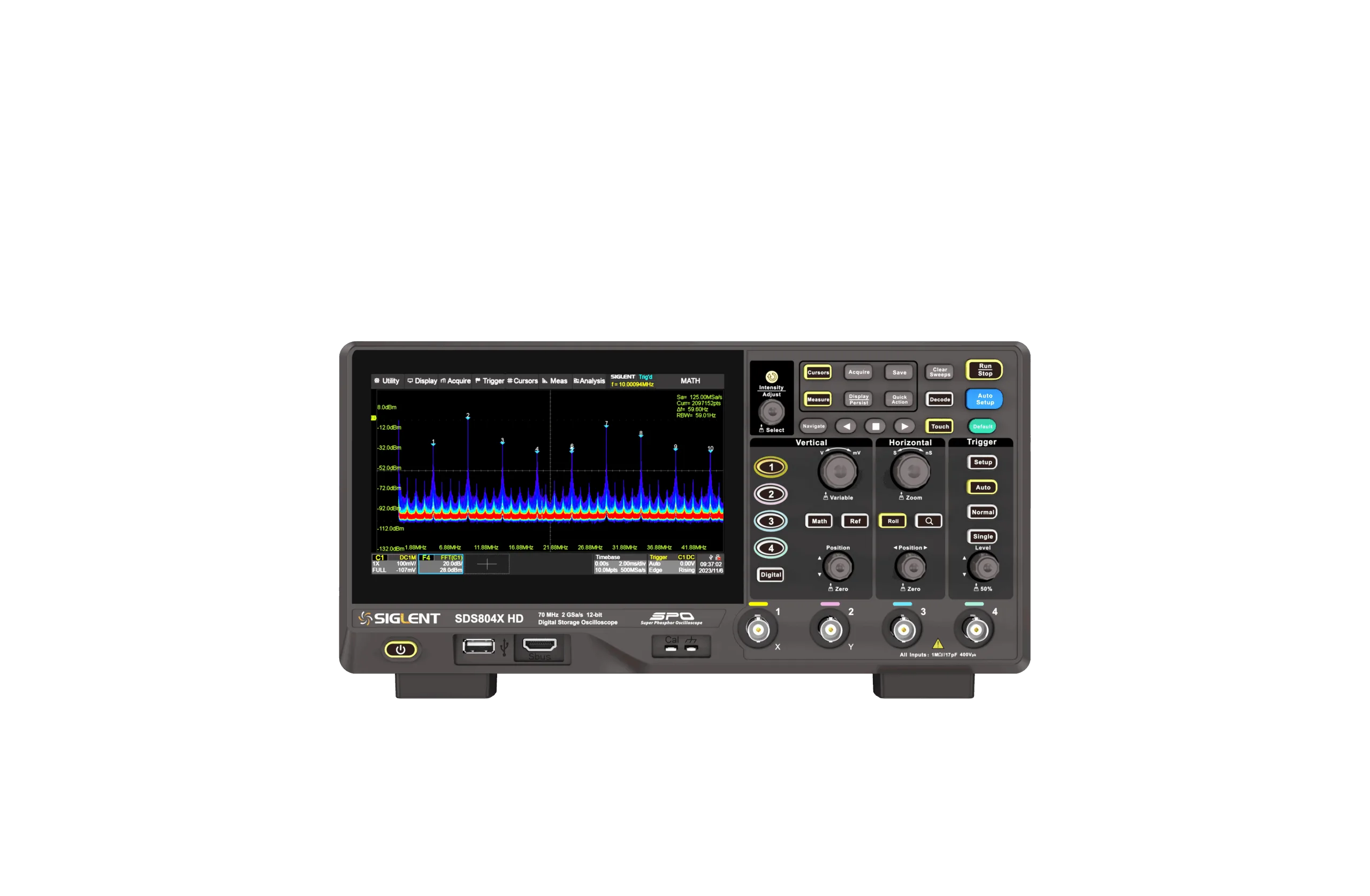

SDS804X HD
4Ch 12bit 70 MHz Oscilloscope
Article no.
SDS804X HD
- Channels
- 4
- Bandwidth
- 70 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 50 Mpts
CHF 429.25
incl. 8.1% VAT · CHF 397.09 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 70 MHz bandwidth
- 500 MS/s sampling rate
- 50 Mpts memory depht
- 12 Bits vertical resolution
The Siglent SDS804X HD is a 4-channel oscilloscope featuring a 12-bit vertical resolution and a bandwidth of 70 MHz. It offers a sampling rate of 500 MS/s per channel, allowing for detailed signal analysis. The device includes a memory depth of 50 Mpts, which supports extended waveform capture and review. This oscilloscope is equipped with a touch screen interface, enhancing user interaction and ease of operation. The combination of its high vertical resolution and substantial memory depth makes it suitable for precise measurements and complex signal evaluations. The four channels provide multiple input options for simultaneous signal monitoring. Overall, the SDS804X HD integrates these technical specifications to support various testing and diagnostic applications.

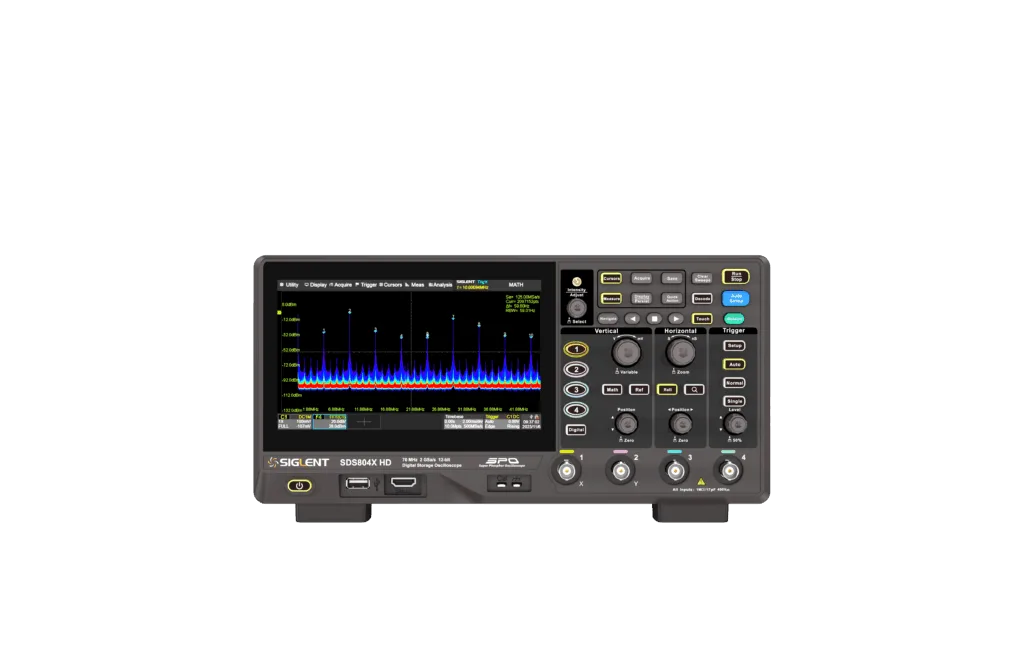

Video
SDS804X HD
Technical data
Specifications
7- Channels
- 4
- Bandwidth
- 70 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 50 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- Yes
Presentation
Product presentation
PDFDocuments
