SDS7404A H12

Description

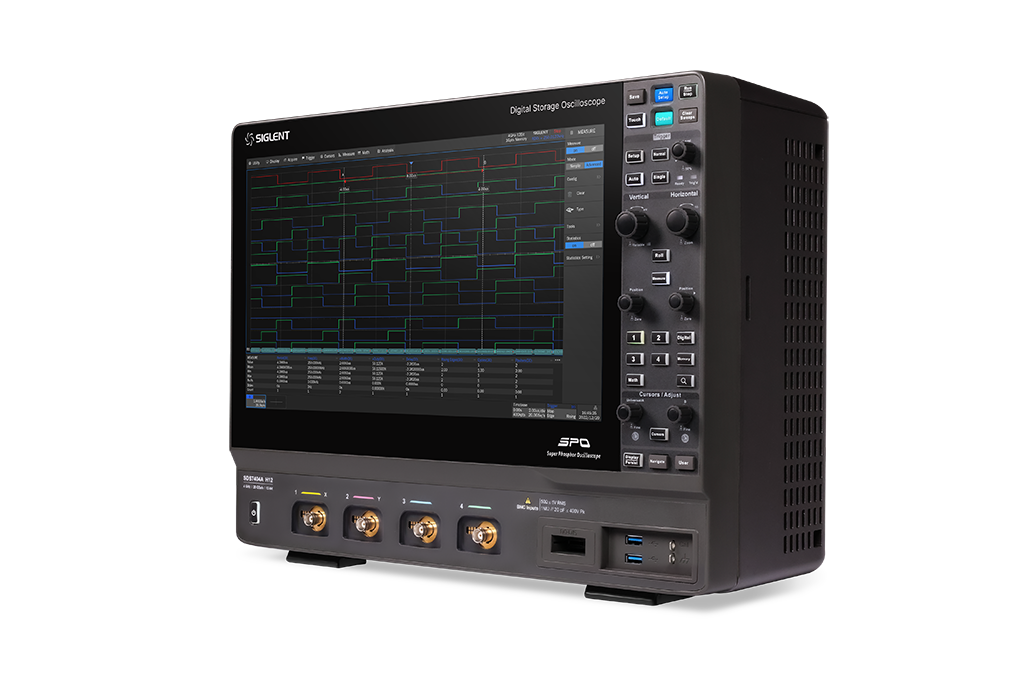

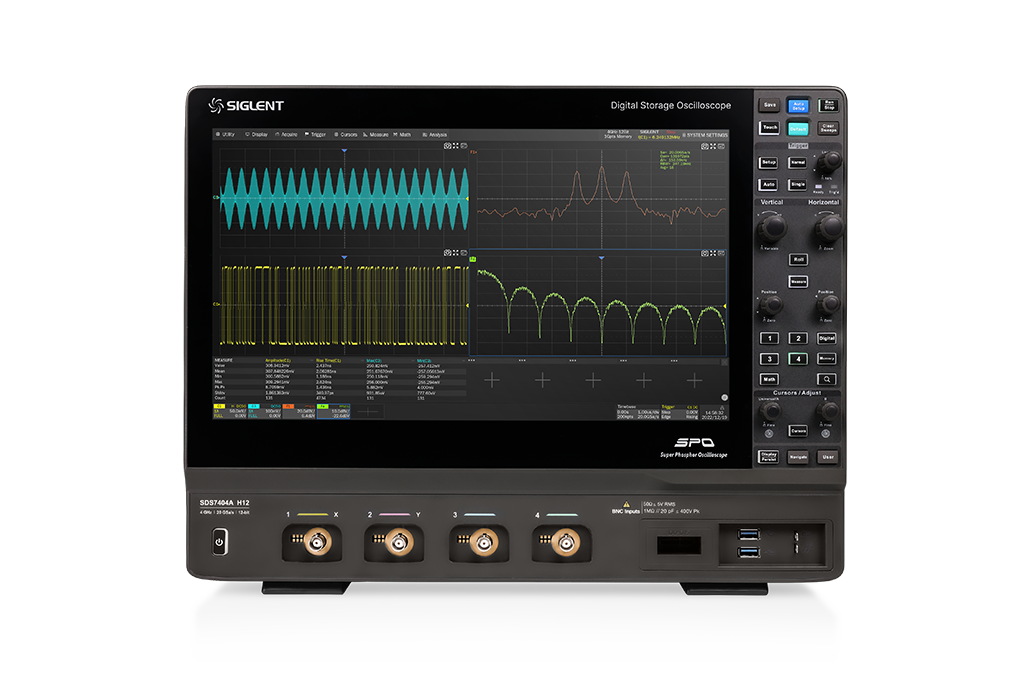

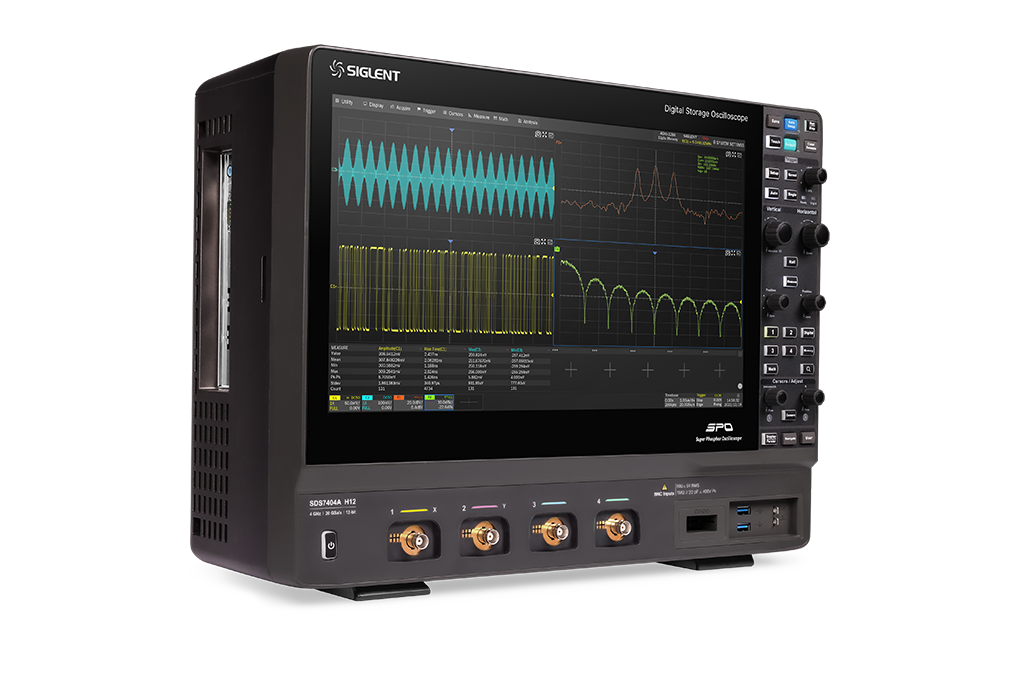

The Siglent SDS7404A H12 features a 4 GHz bandwidth and offers 12-bit vertical resolution across its 4 channels. It supports a maximum sampling rate of 20 GSa/s and provides a memory depth of 500 million points, enabling detailed signal analysis. The device can capture waveforms at a rate of 1,000,000 waveforms per second, facilitating rapid data acquisition. It includes a 32 million points FFT capability for frequency domain analysis. The oscilloscope is equipped with a 15.6-inch touch screen for user interaction. Optional features include Eye/Jitter Analysis and Compliance Test functions, expanding its testing capabilities. The sampling rate per channel is 10,000 MS/s, supporting high-speed signal capture and analysis.

Additional information

4GHz; 12-bit; 4 channels; 20 GSa/s; 500Mpts memory depth; 1,000,000 wfm/s waveform capture rate; 32 Mpts FFT; Eye/Jitter Analysis(opt.); Compliance Test(opt.); 15.6'' touch screen
