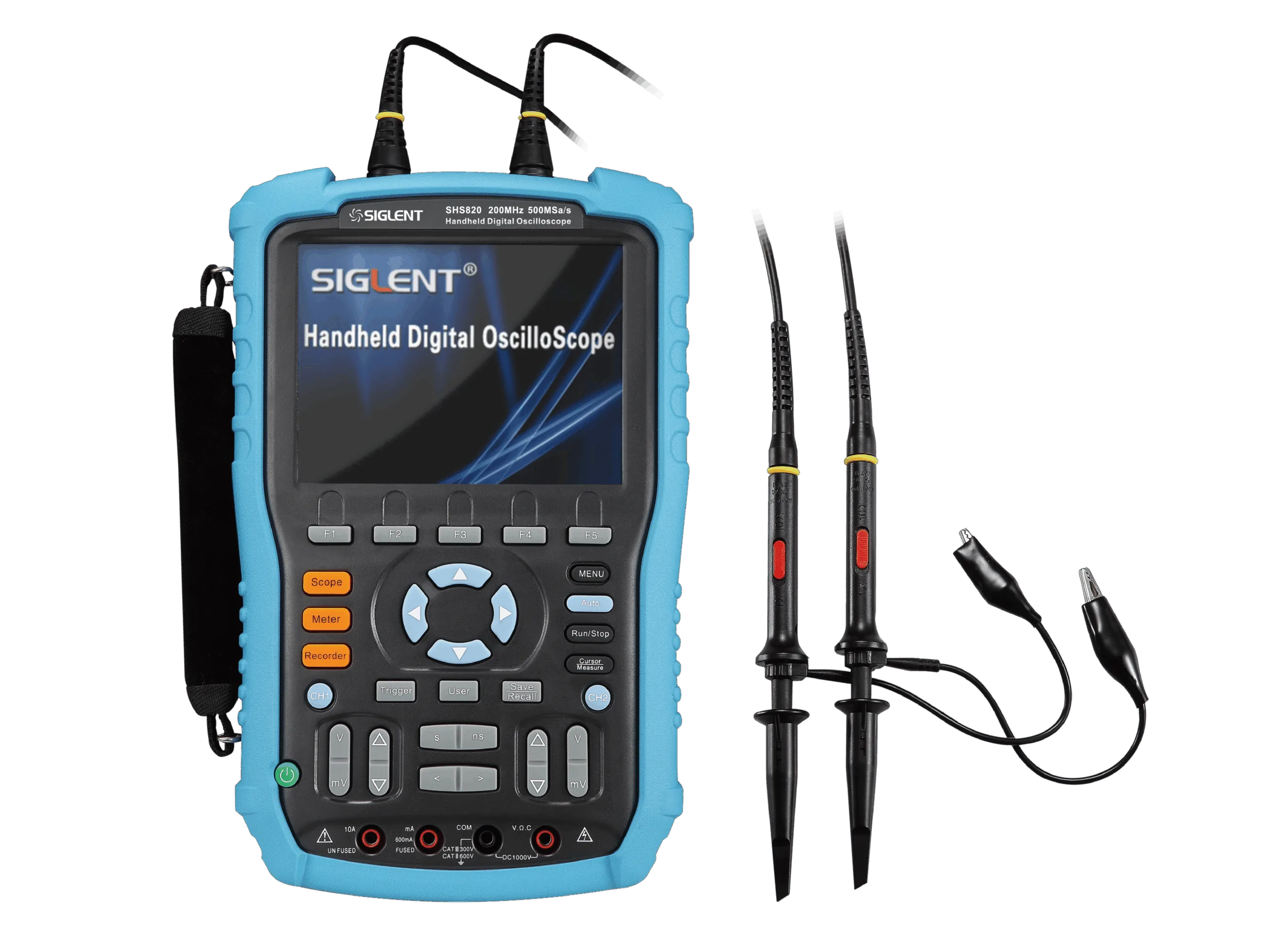

SHS820X
200MHz; 2 channels, 1GSa/s; Handheld Oscilloscope
Article no.
SHS820X
- Channels
- 2
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 12 Mpts
CHF 943.52
incl. 8.1% VAT · CHF 872.82 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 200 MHz bandwidth
- 500 MS/s sampling rate
- 12 Mpts memory depht
- 8 Bits vertical resolution
The SHS820X handheld oscilloscope from Siglent features a bandwidth of 200 MHz and offers two channels for signal measurement. It supports a sampling rate of 500 MS/s per channel, allowing for detailed waveform analysis. The device includes a memory depth of 12 Mpts, which helps in capturing extended signal data for thorough examination. With a vertical resolution of 8 bits, the oscilloscope provides precise amplitude measurements. It operates without digital channels and does not include a touch screen interface. The SHS820X is designed for portability and ease of use in various testing environments, combining essential specifications such as 1 GSa/s overall sampling rate and a compact handheld form factor.

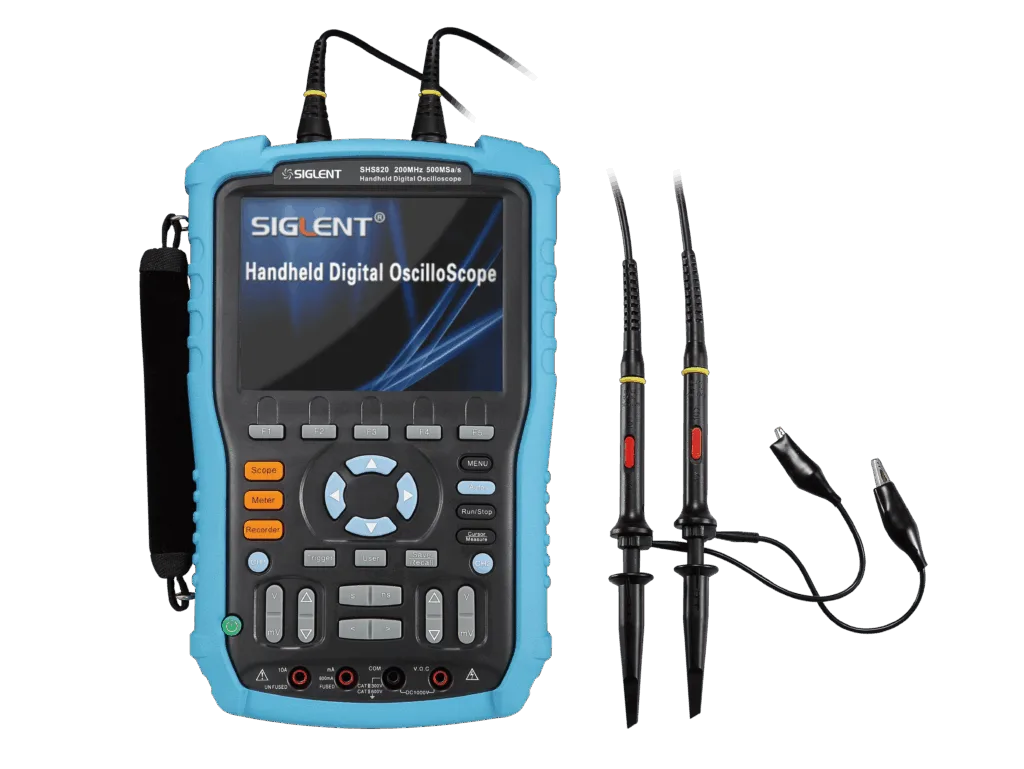

Video
SHS820X
Technical data
Specifications
7- Channels
- 2
- Bandwidth
- 200 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 12 Mpts
- Vertical Resolution
- 8 Bits
- Digital Channels
- No
- Touch Screen
- No
