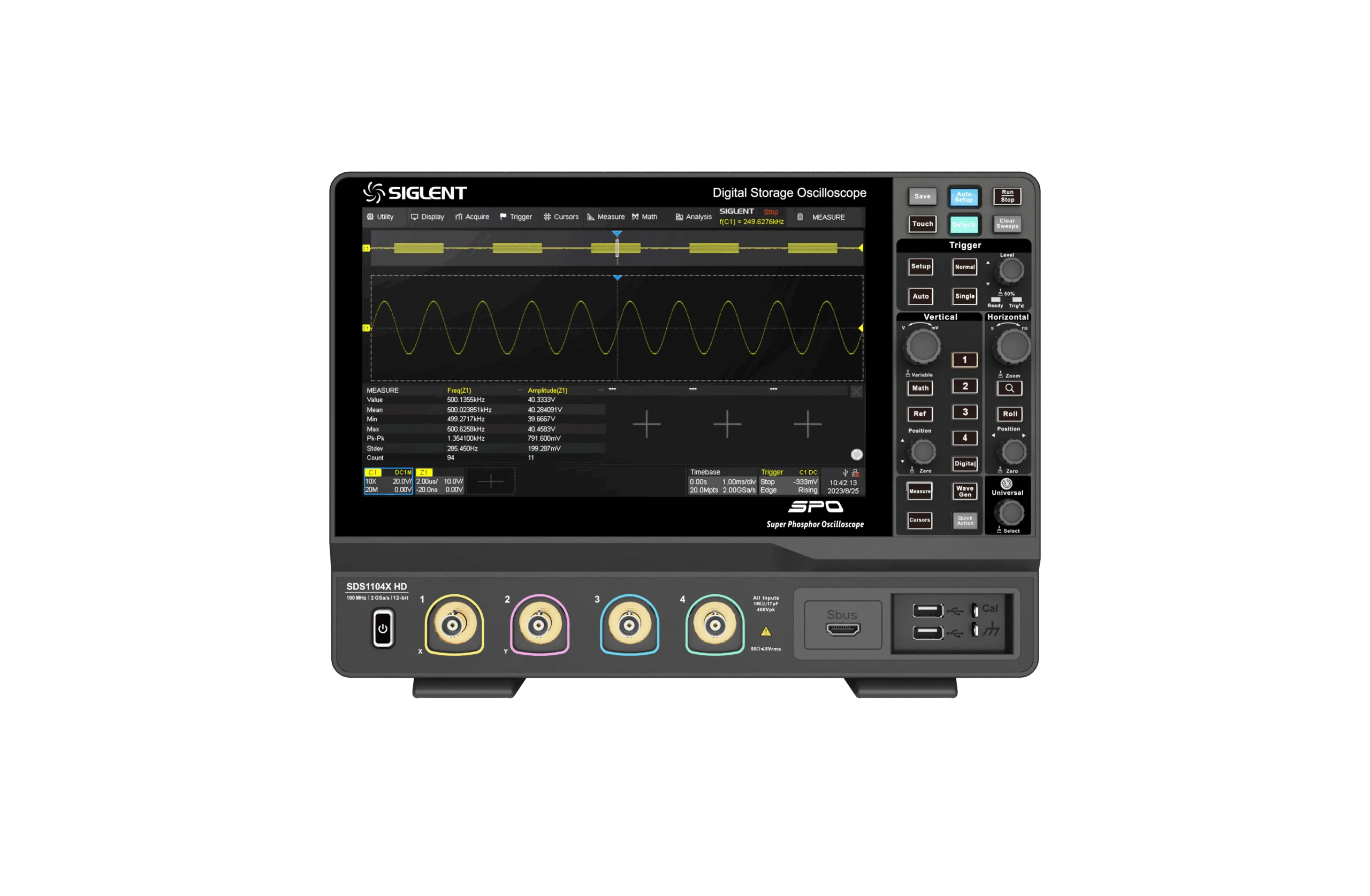

SDS1104X HD
4Ch 12bit 100 MHz Oscilloscope
Article no.
SDS1104X HD
- Channels
- 4
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 100 Mpts
CHF 1'153.42
incl. 8.1% VAT · CHF 1'066.99 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 100 MHz bandwidth
- 500 MS/s sampling rate
- 100 Mpts memory depht
- 12 Bits vertical resolution
The Siglent SDS1104X HD is a 4-channel oscilloscope featuring a 12-bit vertical resolution and a bandwidth of 100 MHz. It offers a sampling rate of 500 MS/s per channel, allowing for detailed signal analysis. The device includes a memory depth of 100 Mpts, which supports extended waveform capture and review. This oscilloscope is equipped with a touch screen interface, enhancing user interaction and ease of operation. The combination of its high vertical resolution and substantial memory depth makes it suitable for various measurement tasks requiring precision. The four input channels provide flexibility for multi-signal monitoring and comparison. Overall, the SDS1104X HD integrates these technical specifications to support comprehensive waveform analysis.
Technical data
Specifications
7- Channels
- 4
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 100 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- Yes
