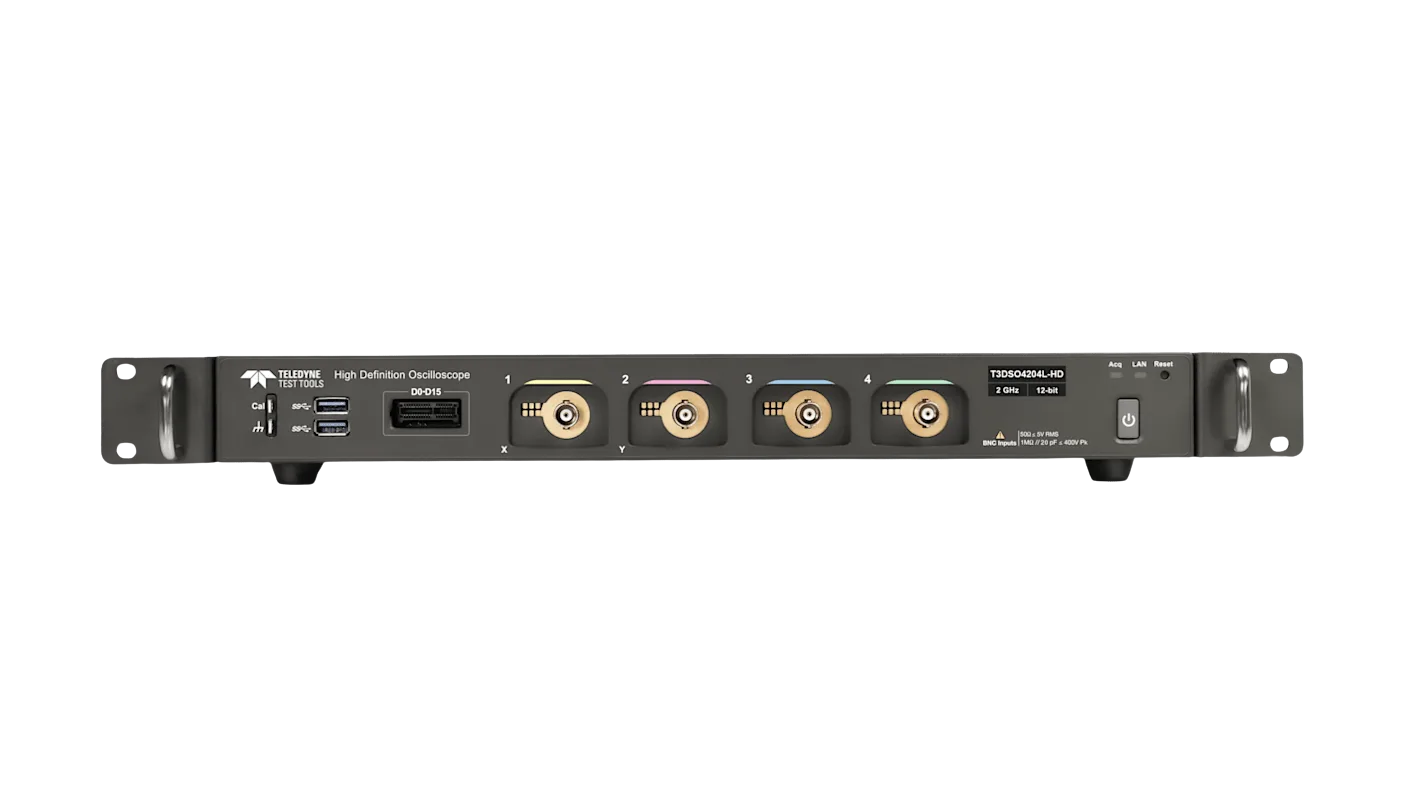

T3DSO4204L-HD

2GHz, 10 GS/s ESR, 4 CH, 500 Mpts/Ch (Single Channel), 12-Bit HD Low Profile Oscilloscope

Article no. T3DSO4204L-HD

Channels: 4
Bandwidth: 2000 MHz
Sampling Rate/Channels: 10000 MS/s
Memory Depht: 125 Mpts

CHF 23'057.73

incl. 8.1% VAT · CHF 21'330.00 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

4 channels
2000 MHz bandwidth
10000 MS/s sampling rate
125 Mpts memory depht
12 Bits vertical resolution

The Teledyne Lecroy T3DSO4204L-HD oscilloscope features a bandwidth of 2000 MHz and supports a maximum sampling rate of 10 GS/s per channel. It is equipped with four channels, each capable of storing up to 500 million points of data, providing extensive memory depth for detailed signal analysis. The device offers a vertical resolution of 12 bits, allowing for precise measurement and high-definition waveform capture. This low-profile oscilloscope is designed to handle frequencies up to 2 GHz, making it suitable for a wide range of high-speed applications. The memory depth per channel is 125 million points, ensuring ample storage for long-duration signal acquisition. The unit does not include a touch screen interface, focusing instead on core measurement capabilities. Its combination of high bandwidth, fast sampling rate, and deep memory makes it a versatile tool for detailed electronic signal examination.

Technical data
